1233^0A 02 – MAIN TOP

1233^0A 02 – MAIN TOP

Written by

in

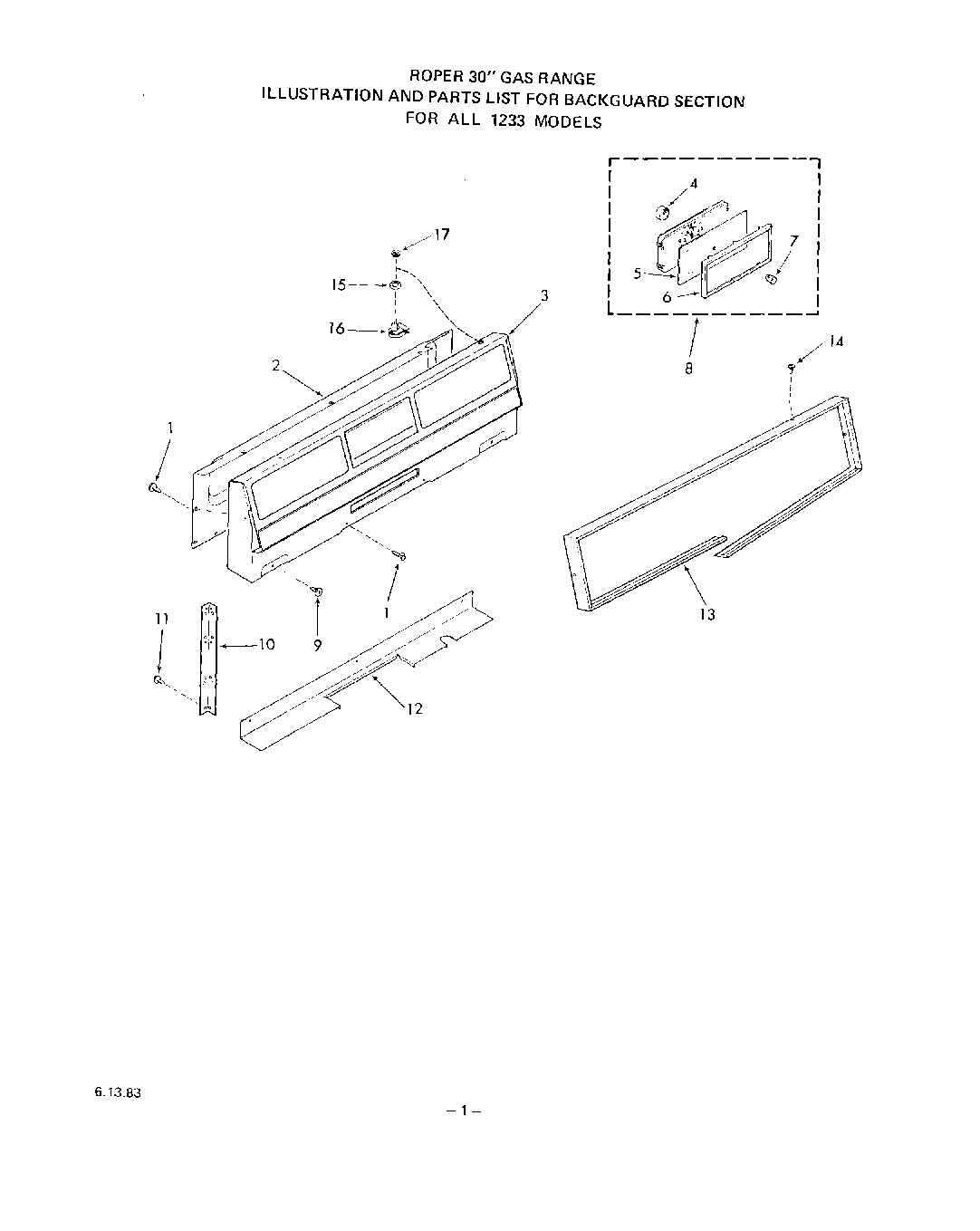

1233^0A 02 – MAIN TOP

Products

Position	Product
2	Wire Cover-Backguard
3	Crosstie
4	Clock Motor
5	Clock Glass
6	285930 Whirlpool Plate
7	Knob-Clock (Start & Stop Time)
8	Clock W/4 Hr. Timer (Inc`s. 4-7)
9	Screw 10-32×7/16“
10	Support-Backguard (Lt. or Rt.)
11	WP112432 Whirlpool Nut Assembly
12	Bottom-Wire Cover
13	Bezel-Backguard
14	Screw 6-32×3/8“
15	Lock Nut
16	Push Switch-Oven Light
17	Knurled Nut
