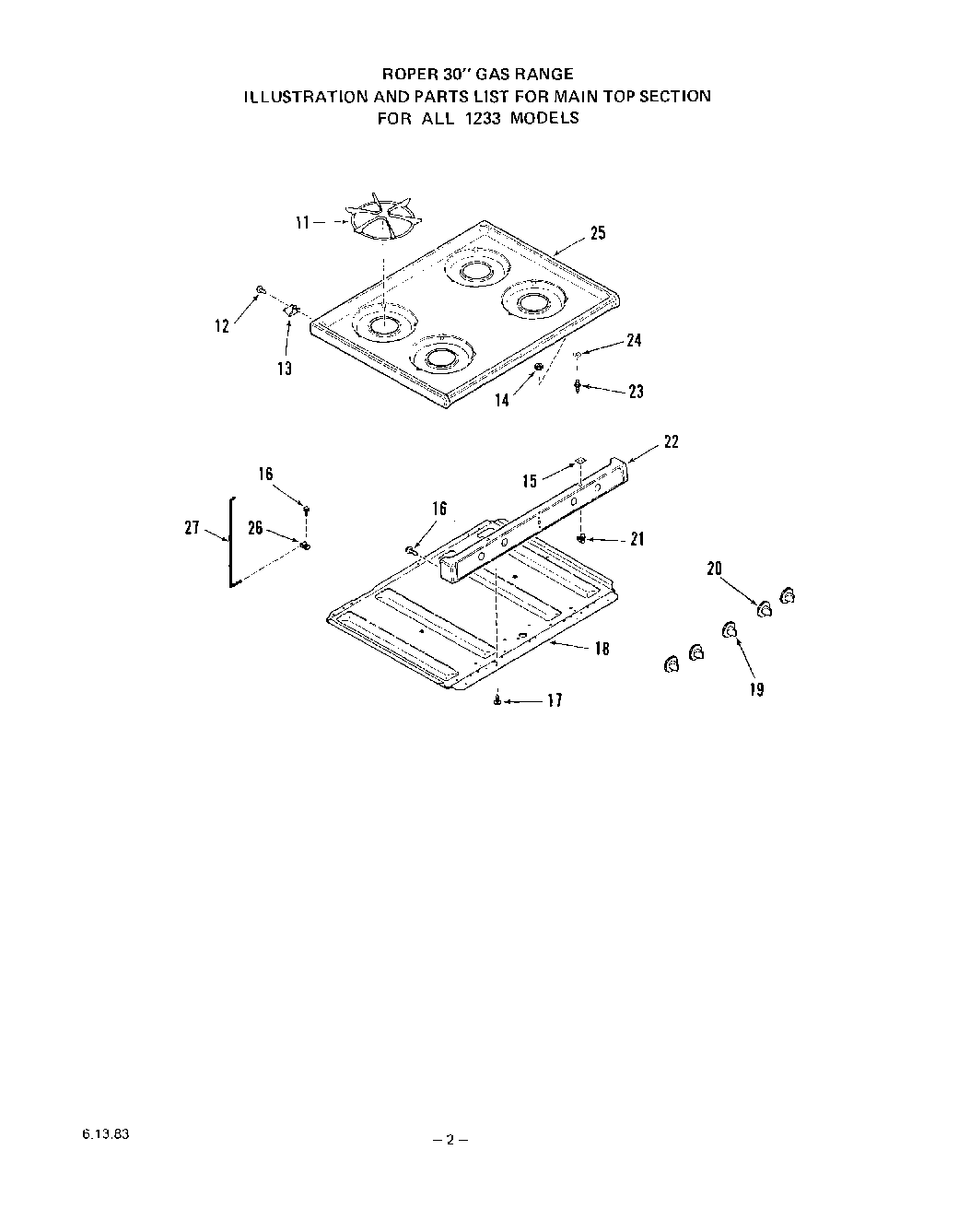

1233^0A 03 – BURNER

Products

Position	Product
11	Top Grate (4 Required)
12	Screw 10-32×7/16“
13	Retainer-Main Top (2 Required)
14	Keps Nut 8-32
15	Washer
16	WP112432 Whirlpool Nut Assembly
17	Screw 10-32×3/8“
18	Seal, Foam (2)
19	Knob-Thermostat
20	All 14630A Models
21	Catch-Main Top Strike (2 Required)
22	White
22	Golden Wheat
22	Manifold Panel
22	Almond
23	Strike-Main Top (2 Required)
24	Washer
25	Golden Wheat
25	White
25	Almond
25	Main Top
26	Clip
27	Support-Main Top
