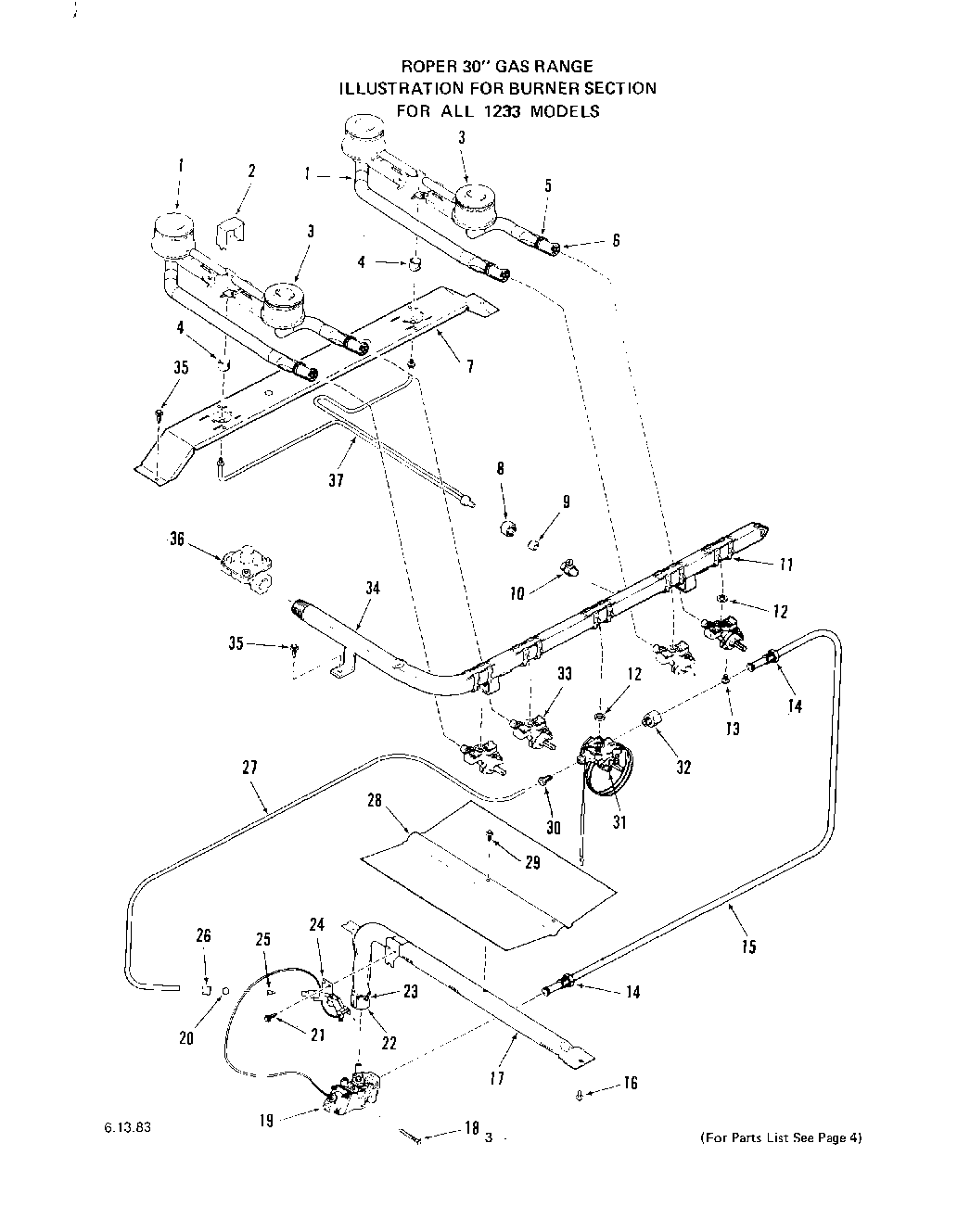

1233^0A 04 – BODY

Products

Position	Product
1	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
2	Top Pilot Shield (3 Req)
3	Front Top Burner-Lt. or Rt. (Inc`s 64 & 65)
4	Pilot Cup (3 Req)
5	Adjustment Screw-Air Shutter
6	Air Shutter
7	Support-Top Burner
8	Compression Nut 1/4“
9	Compression Ball Sleeve 1/4“
10	Filter-Top Pilot
11	Clip (10 Req)
12	Gasket
13	Screw 10-24×3/8“
14	Inverted Nut 3/8“
15	Tubing 3/8“ (Shut-Off to Control Valve)
17	Oven Burner (Inc`s. 21, 33 & 34)
18	Screw 10-32×2“
19	Oven Control Valve
20	Compression Ball Sleeve 3/16“
21	Screw 10-24×1/4“
22	Aid Shutter
23	Adjustment Screw-Air Shutter
24	Pilot Head (Inc`s. 24)
25	Orifice Cup Only
26	Compression Nut 3/16“
27	Tubing 3/16“ -Oven Therm. To Oven Control Pilot
28	Baffle – Oven Burner
29	WPL 316365
30	Loxit Nut 3/16“
31	Oven Thermostat
32	Fitting-Straight 3/8“
33	Gas Valve (4 Required-Inc`s. Key 12)
34	Manifold Pipe
35	WP112432 Whirlpool Nut Assembly
36	Pressure Regulator
37	Pilot Tube (Inc. Keys 8 & 9)
