1233^0A 07 – SECTION

Written by

Products

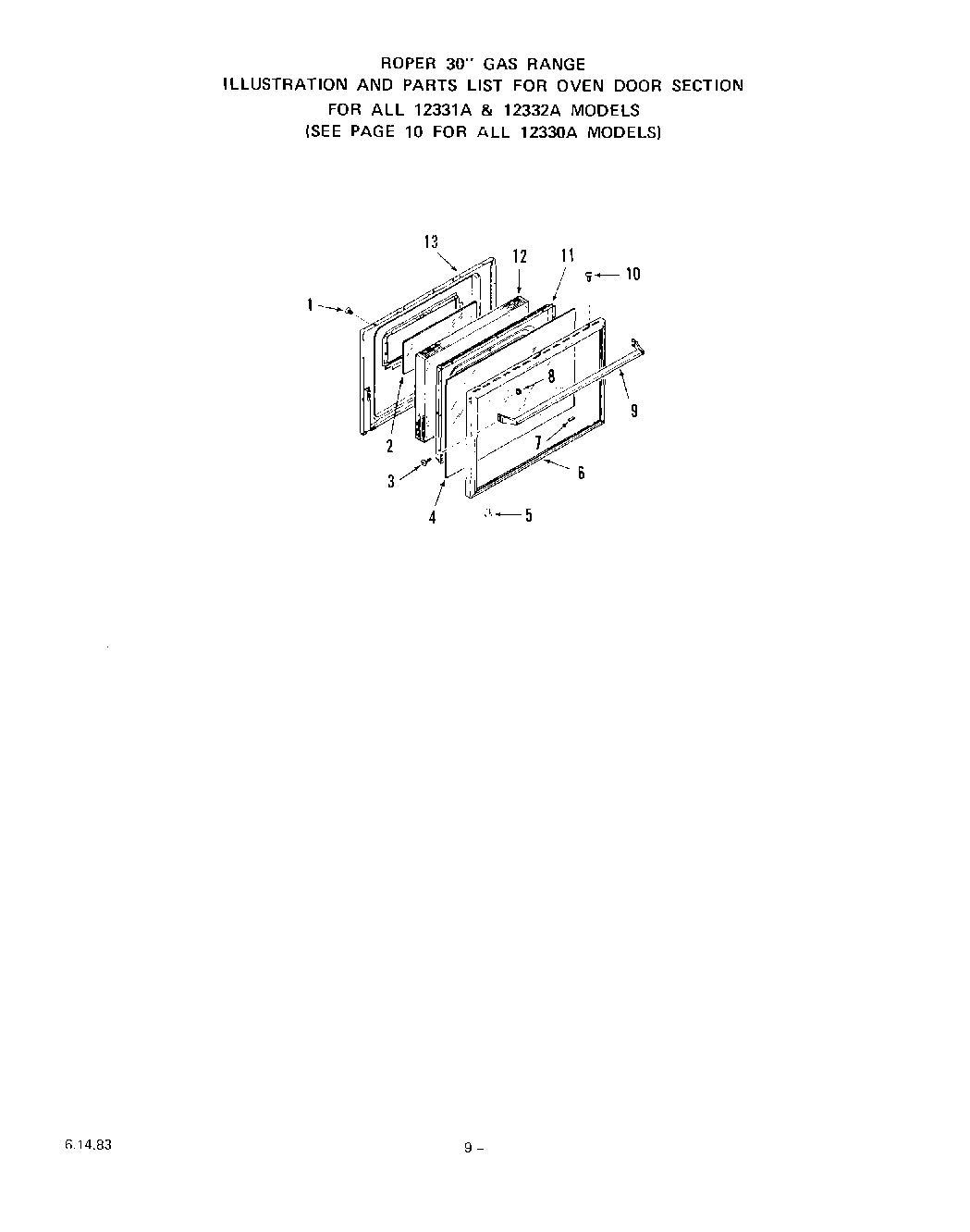

Position	Product
1	WPY04100165 Whirlpool Surface Element
2	Inner Glass-Oven Door
3	Screw 8-32 x 1/2“
4	Outer Glass-Oven Door
5	Screw 10-32 x 1/2“
6	Frame-Door Glass
7	Cushion-Door Glass
8	Keps Nut 8-32
9	Handle-Oven Door
10	Screw 6Ax3/8“
11	Retainer – Oven Door Insulation
12	Insulation
13	Lining – Oven Door
