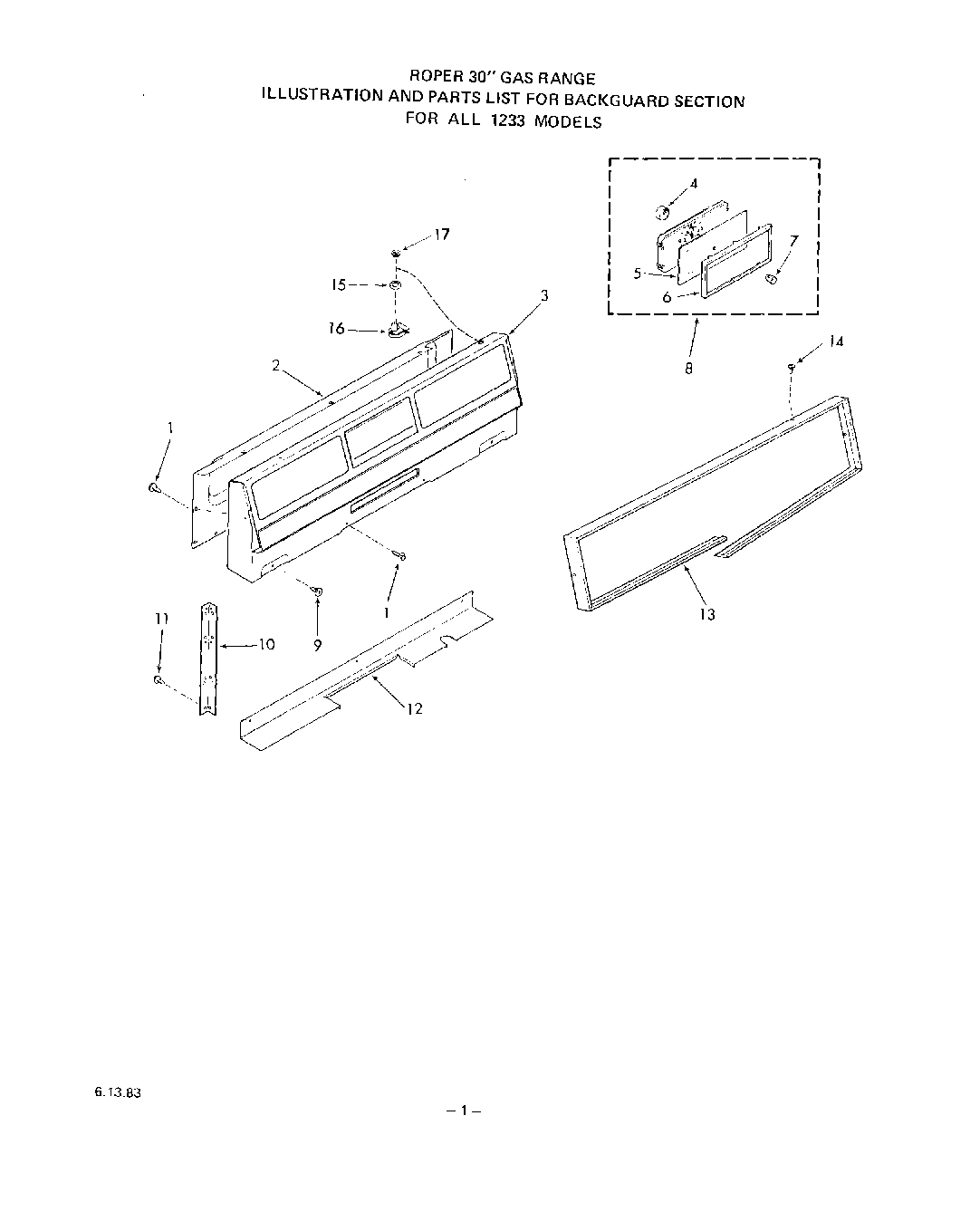

| 2 | Wire Cover-Backguard |
| 3 | Crosstie |
| 4 | Clock Motor |
| 5 | Clock Glass |
| 6 | 285930 Whirlpool Plate |
| 7 | Knob-Clock (Start & Stop Time) |
| 8 | Clock W/4 Hr. Timer (Inc`s. 4-7) |
| 9 | Screw 10-32x7/16`` |
| 10 | Support-Backguard (Lt. or Rt.) |
| 11 | WP112432 Whirlpool Nut Assembly |
| 12 | Bottom-Wire Cover |
| 13 | Bezel-Backguard |
| 14 | Screw 6-32x3/8`` |
| 15 | Lock Nut |
| 16 | Push Switch-Oven Light |
| 17 | Knurled Nut |
