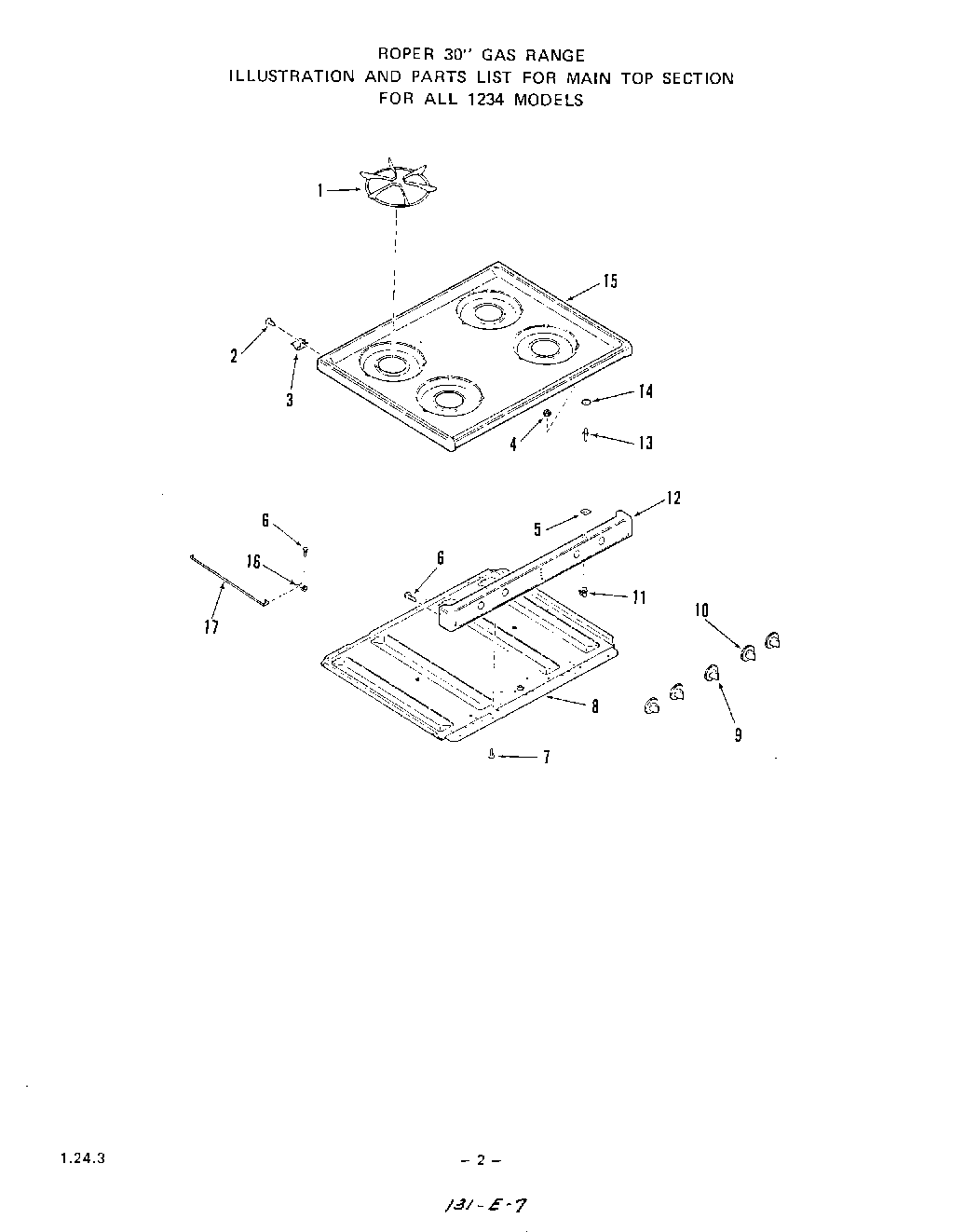

1234^0A 03 – BURNER

1234^0A 03 – BURNER

Written by

in

1234^0A 03 – BURNER

Products

PositionProduct
1Top Grate (4 Required)
2Screw 10-32×7/16“
3Retainer-Main Top (2 Required)
4Keps Nut 8-32
5Washer
6WP112432 Whirlpool Nut Assembly
7Screw 10-32×3/8“
8Burner Box Bottom
9All 14630A Models
10Knob-Gas Valve (4 Required)
11Catch-Main Top Strike (2 Required)
12White
12Manifold Panel
12Almond
13Strike-Main Top (2 Required)
14Washer
15Almond
15White
15Main Top
16Clip
17Support-Main Top
