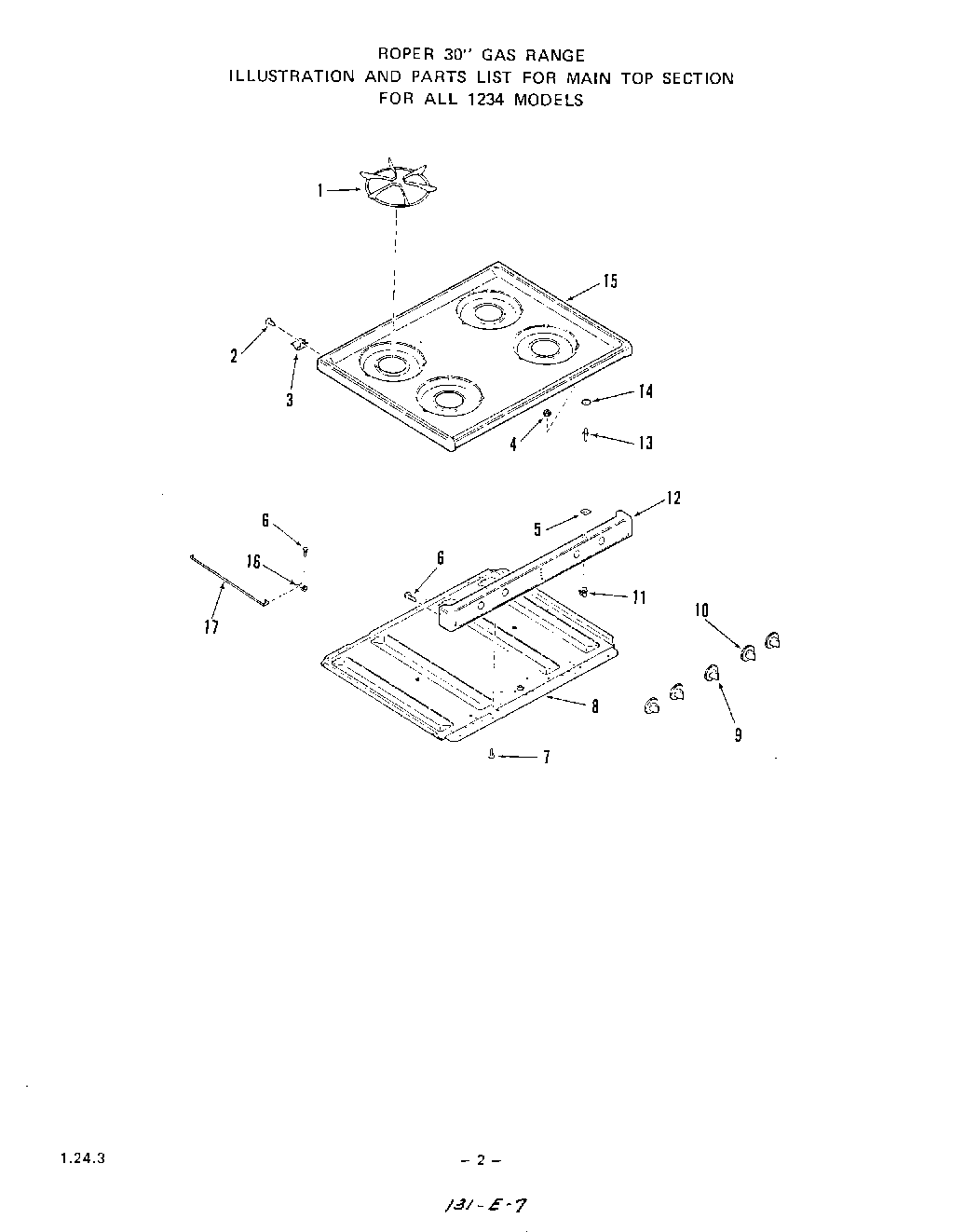

| 1 | Top Grate (4 Required) |
| 2 | Screw 10-32x7/16`` |
| 3 | Retainer-Main Top (2 Required) |
| 4 | Keps Nut 8-32 |
| 5 | Washer |
| 6 | WP112432 Whirlpool Nut Assembly |
| 7 | Screw 10-32x3/8`` |
| 8 | Burner Box Bottom |
| 9 | All 14630A Models |
| 10 | Knob-Gas Valve (4 Required) |
| 11 | Catch-Main Top Strike (2 Required) |
| 12 | White |
| 12 | Manifold Panel |
| 12 | Almond |
| 13 | Strike-Main Top (2 Required) |
| 14 | Washer |
| 15 | Almond |
| 15 | White |
| 15 | Main Top |
| 16 | Clip |
| 17 | Support-Main Top |
