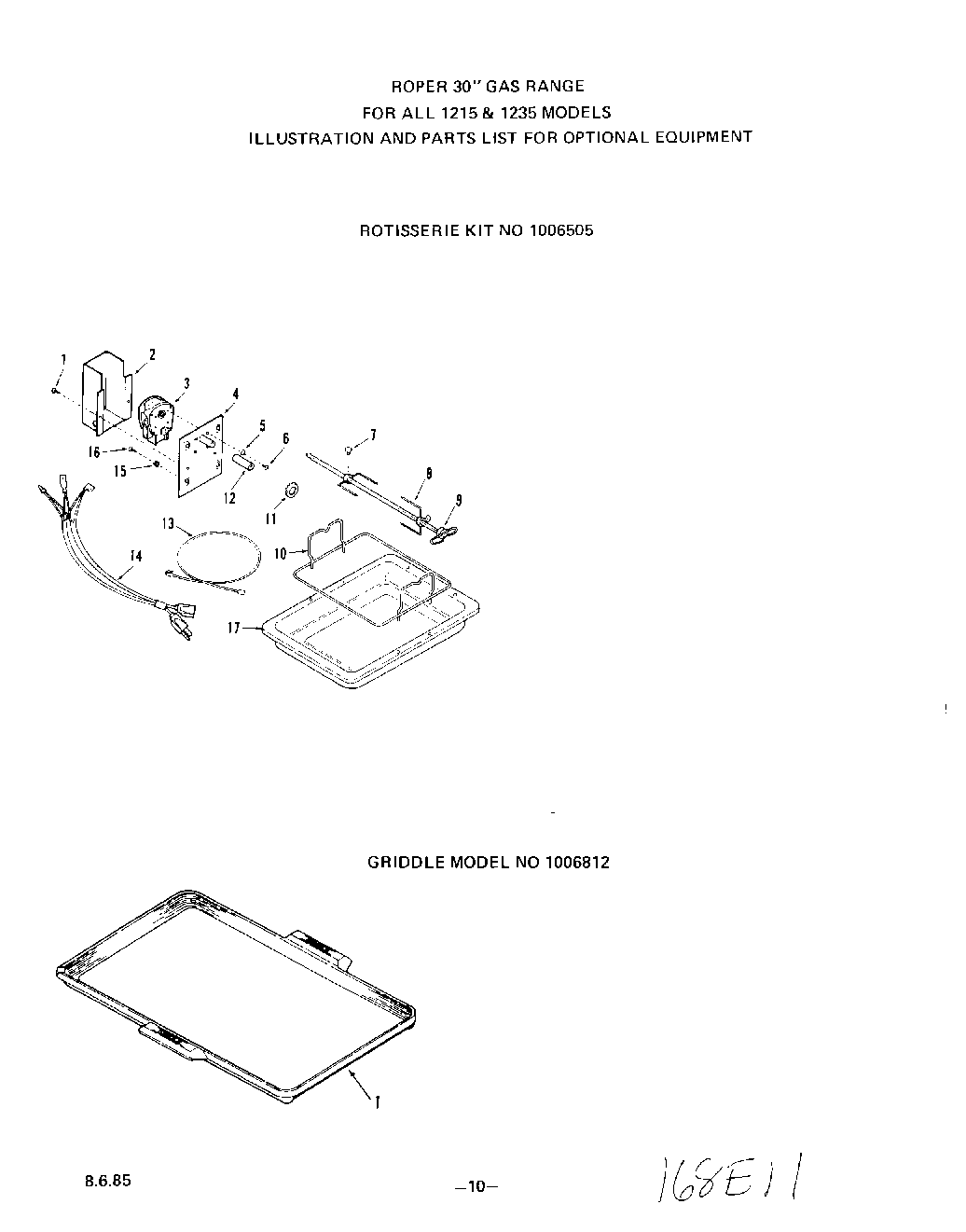

1235^1A 08 – ROTISSERIE KIT , GRIDDLEadmin2025-04-26T08:34:26+00:001235^1A 08 – ROTISSERIE KIT , GRIDDLE ProductsPositionProductxSwitch (For Key No. 352)xParts Not Shown On IllustrationxInstallation Instructions1Set-On-Griddle (Optional)1Screw 10 - 32 x 1/4``2Cover - Rotisserie Motor3Rotisserie Motor4mounting bracket-rotisserie motor5Lockwasher 3/16``6Screw 8-32 x 3/8``7Thumbscrew8Skewer9Rotisserie Spit10Spit Support11Plug Button12Guide Extension - Rotisserie Motor13White13Black13White13Black With 1/4`` Faston & Eyelet Terminals14Rotisserie Cord15Lockwasher16Screw 10-32 x 1/2``17Rotisserie Pan
