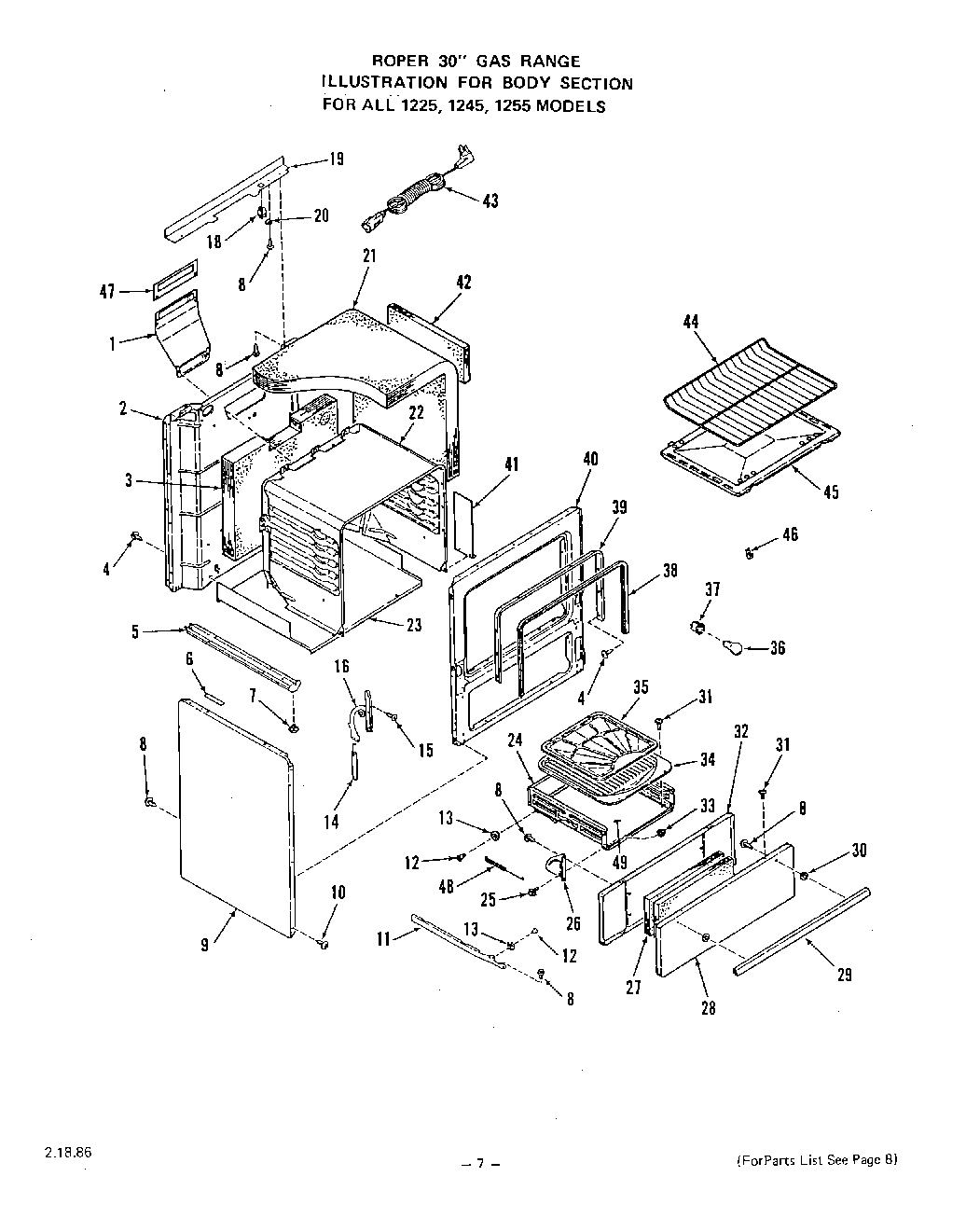

1245^3A 07 – OVEN DOOR

Products

PositionProduct
1Flue Deflector
2Back-Main
3Insulation-Oven Back
5Base w/Levelers (Lt. or Rt.)
6Spacer-Main Top (2 Req)
7Leg Leveler (4 Req)
8Screw 10-16×7/16“
9Toast
9Almond
9Coffee
9Avocado
9Body Side (Lt. or Rt.)
9Golden Wheat
9White
10Screw 10ABx1/2“
11Broiler Drawer Guide (Inc`s. 12, 13)
11WP691371 Whirlpool Belt
11Right
12Shoulder Rivet
13Roller
14spring-oven door (lt. or rt.)
15Screw 10-32 x 5/8“
16Hinge-Oven Door (Right)
16Hinge-Oven Door (Left)
16Hinge-Oven Door
18Disconnect
19Cover-Backguard Bottom Wire
20Clip
21Insulation-Oven Top & Sides (1 Piece)
22Oven Body
22Oven Body (14450A Models)
22Oven Body (14451A Models)
22Oven Body
23Bottom-Main
24Drawer-Broiler (Inc`s. 12,13) (14450A Models)
24Drawer-Broiler (Inc`s. 12,13) (14451A Models)
24Broiler Drawer (Inc`s. 12, 13)
25Bolt-Shoulder
26Hinge-Broiler Drawer (Lt. or Rt.) (Right)
26Hinge-Broiler Drawer (Lt. or Rt.) (Left)
26Hinge-Broiler Door
28Almond
28Golden Wheat
28Panel-Broiler Door
28Avocado
28White
28Coffee
28Toast
28Platinum
29Handle-Broiler Door
30spacer-handle
31Screw-10-32×1/2“
32Lining-Broiler Door
32Lining-Broiler Door (14451A Models)
32Lining-Broiler Door (14450A Models)
33Keps Nut 10-24
34Broiler Pan
34Pan-Broiler (14451A M
34Pan-Broiler
35WPL ARI7798A66
35WPL 331588
35Broiler Pan Grid
36Oven Lamp Bulb
37Holder-Oven Lamp Bulb
38WPL 326047
39main chassis (almond)
40WPL 331584
40WPL 326042
40WPL ARI7799A93
41WPL 328984
42W10820036 Whirlpool Door Switch Kit
43Range Service Cord
44WPL 326068
45WPL 327084
45WPL ARI7800A75
45WPL 331539
45WPL 327083
46Thermostat Bulb Clip (2 Required)
47WPL 329314
48WPL 327481
49WPL 329862
49WPL 331554
49WPL ARI7801A79
