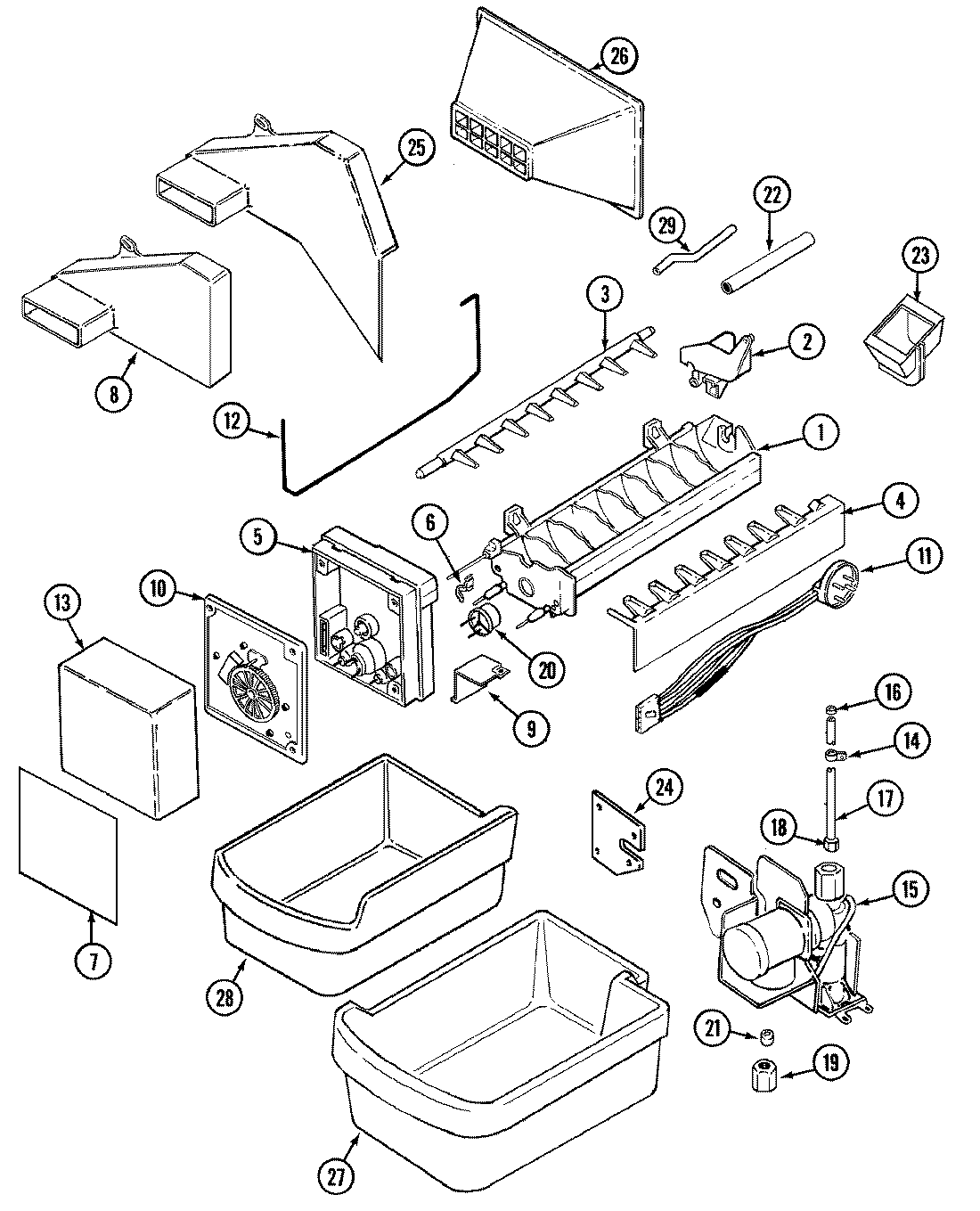

12500048 01 – ICE MAKER KIT

Products

Position	Product
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1	WP99003172 Whirlpool Silicone L
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP2195914 Whirlpool Refrigerator Ice Maker Housing
5	SCREW
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 67428-1
8	MAY 67061-1
8	MAY 67061-3
8	MAY 67061-2
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	MAY 95109-1
10	MAY 400021-1
11	MAY 70076-1
12	MAY 68112-1
13	WPW10289690 Whirlpool Ice Maker Cover
14	MAY 23197-8
14	SCREW
14	W10833902 Whirlpool Refrigerator Clamp
15	MAY 61001019
15	MAY 401017-1
16	WPM0114003 Whirlpool Microwave Speed Clip Clamp
17	MAY 67579-6
18	WP627018 Whirlpool Refrigerator Nut
19	WP245183 Whirlpool Nut
20	WP627985 Whirlpool Icemaker Cycling Thermostat
20	MAY 95093-1
21	WP487627 Whirlpool Refrigerator Sleeve
22	MAY 67877-1
22	MAY 67666-3
23	MAY 61001305
24	MAY 69363-1
25	MAY 70198-3
26	MAY 68255-1
27	MAY 68327-1
28	WP67001255 Whirlpool Ice Bucket
29	MAY 68306-1
