1255^2A 07 – OVEN DOOR

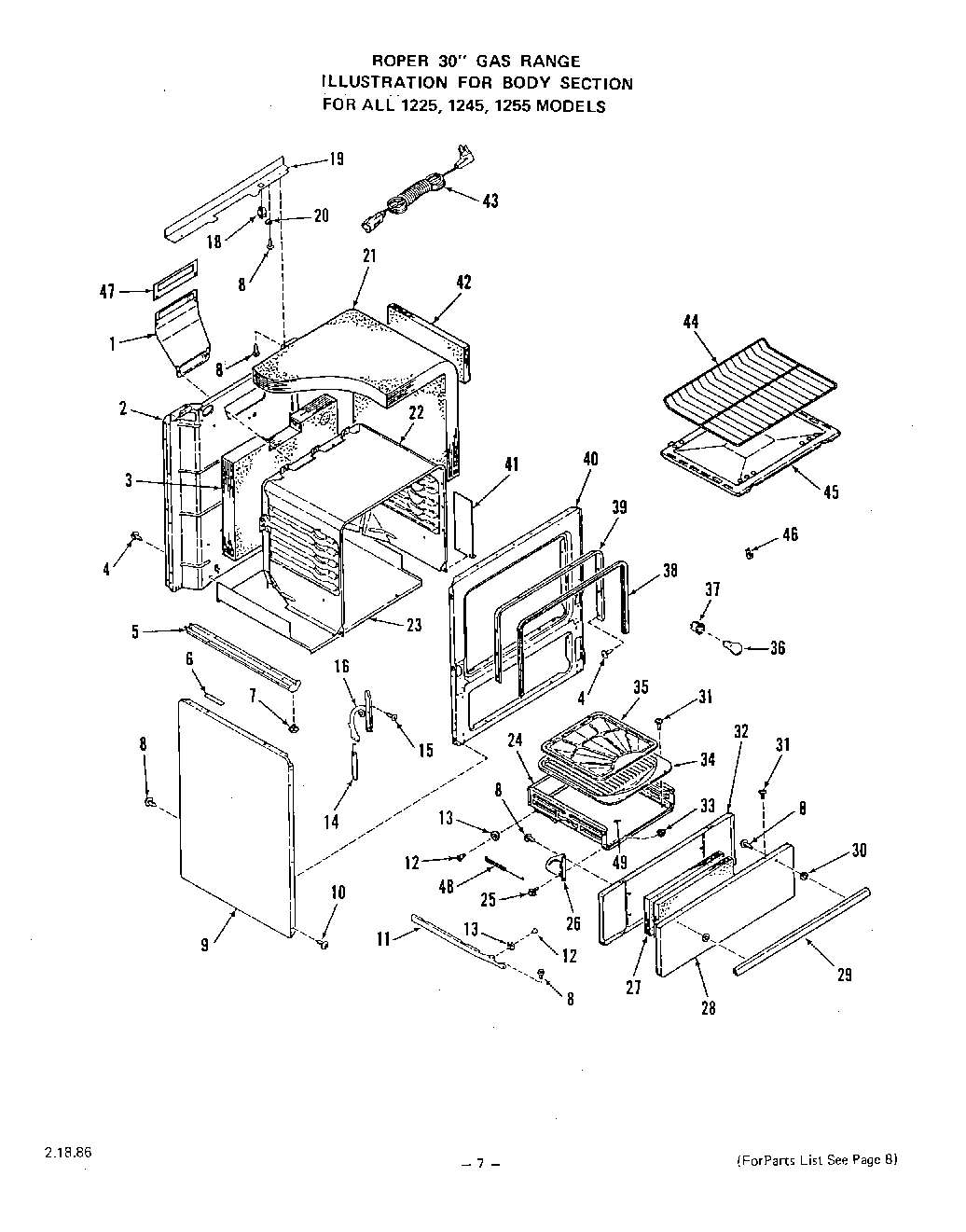

Products

PositionProduct
1Flue Deflector
2Back-Main
3Insulation-Oven Back
5Base w/Levelers (Lt. or Rt.)
6Spacer-Main Top (2 Req)
7Leg Leveler (4 Req)
8Screw 10-16×7/16“
9White
9Golden Wheat
9Almond
9Toast
9Coffee
9Avocado
9Body Side (Lt. or Rt.)
10Screw 10ABx1/2“
11WP691371 Whirlpool Belt
11Broiler Drawer Guide (Inc`s. 12, 13)
11Right
12Shoulder Rivet
13Roller
14spring-oven door (lt. or rt.)
15Screw 10-32 x 5/8“
16Hinge-Oven Door
16Hinge-Oven Door (Left)
16Hinge-Oven Door (Right)
18Disconnect
19Cover-Backguard Bottom Wire
20Clip
21Insulation-Oven Top & Sides (1 Piece)
22Oven Body (14451A Models)
22Oven Body (14450A Models)
22Oven Body
22Oven Body
23Bottom-Main
24Broiler Drawer (Inc`s. 12, 13)
24Drawer-Broiler (Inc`s. 12,13) (14450A Models)
24Drawer-Broiler (Inc`s. 12,13) (14451A Models)
25Bolt-Shoulder
26Hinge-Broiler Door
26Hinge-Broiler Drawer (Lt. or Rt.) (Left)
26Hinge-Broiler Drawer (Lt. or Rt.) (Right)
28Coffee
28Avocado
28Almond
28Panel-Broiler Door
28Toast
28Platinum
28Golden Wheat
28White
29Handle-Broiler Door
30spacer-handle
31Screw-10-32×1/2“
32Lining-Broiler Door
32Lining-Broiler Door (14450A Models)
32Lining-Broiler Door (14451A Models)
33Keps Nut 10-24
34Pan-Broiler (14451A M
34Pan-Broiler
34Broiler Pan
35WPL ARI7861A23
35WPL 331588
35Broiler Pan Grid
36Oven Lamp Bulb
37Holder-Oven Lamp Bulb
38WPL 326047
39main chassis (almond)
40WPL 326042
40WPL 331584
40WPL ARI7862A95
41WPL 328984
42W10820036 Whirlpool Door Switch Kit
43Range Service Cord
44WPL 326068
45WPL 327083
45WPL 327084
45WPL 331539
45WPL ARI7863A16
46Thermostat Bulb Clip (2 Required)
47WPL 329314
48WPL 327481
49WPL ARI7864A64
49WPL 329862
49WPL 331554
