1255W0A 02 – MAIN TOP – Aparts

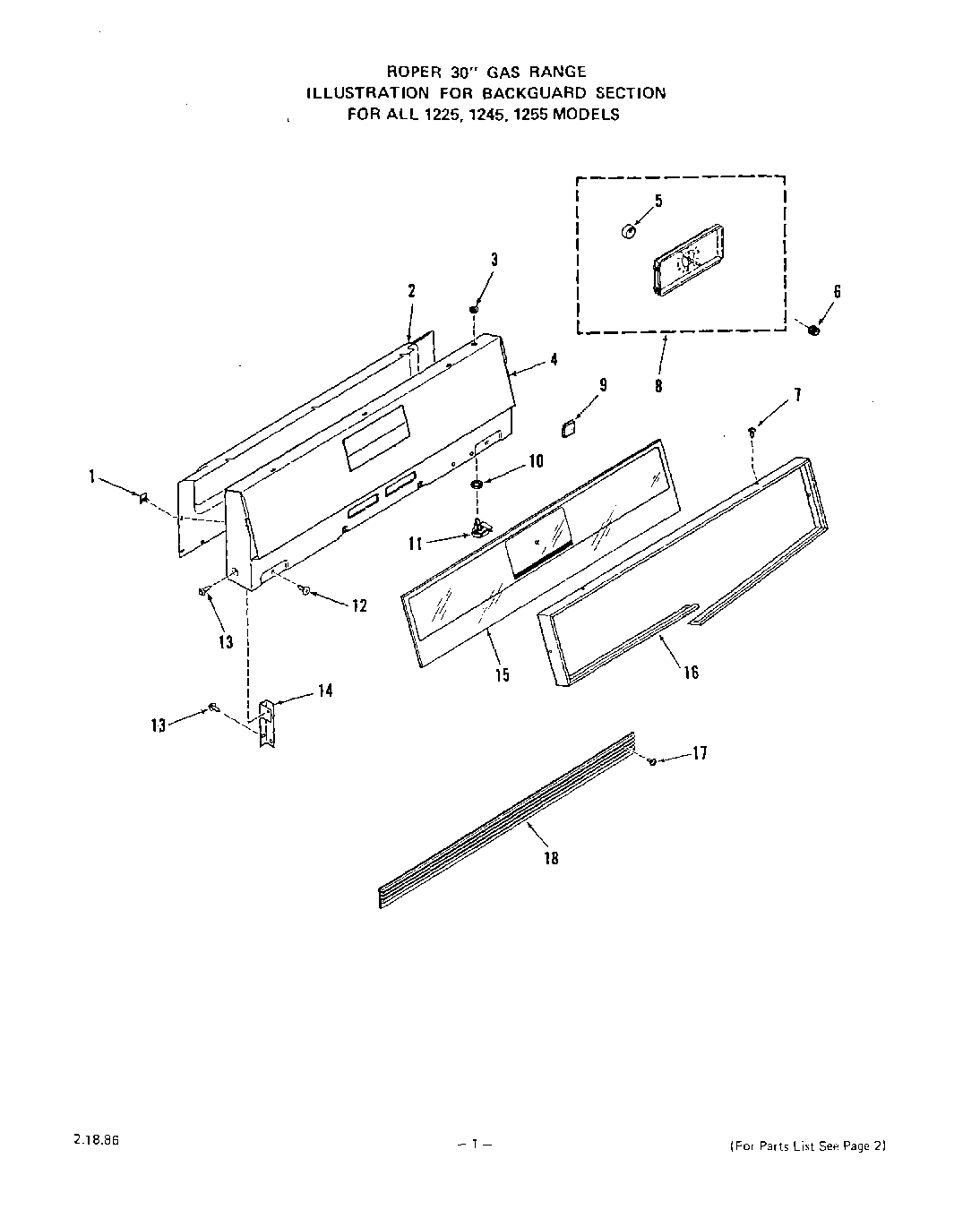

1255W0A 02 – MAIN TOP

Products

Position	Product
1	Clip
2	Wire Cover-Backguard
3	Knurled Nut
4	Crosstie
5	Clock Motor
6	Knob-Clock
7	Screw 6-20x3/8``
8	Clock (Inc`s. 5)
9	Space
10	Lock Nut
11	Push Switch-Oven Light
12	Screw 10ABx1/2``
13	Screw 10-16x7/16``
14	Support-Backguard (Left)
14	Support-Backguard (Right)
14	Support-Backguard
15	Glass-Backguard
16	Bezel-Backguard
17	Screw 6-20x3/8``
18	Trim-Crosstie
