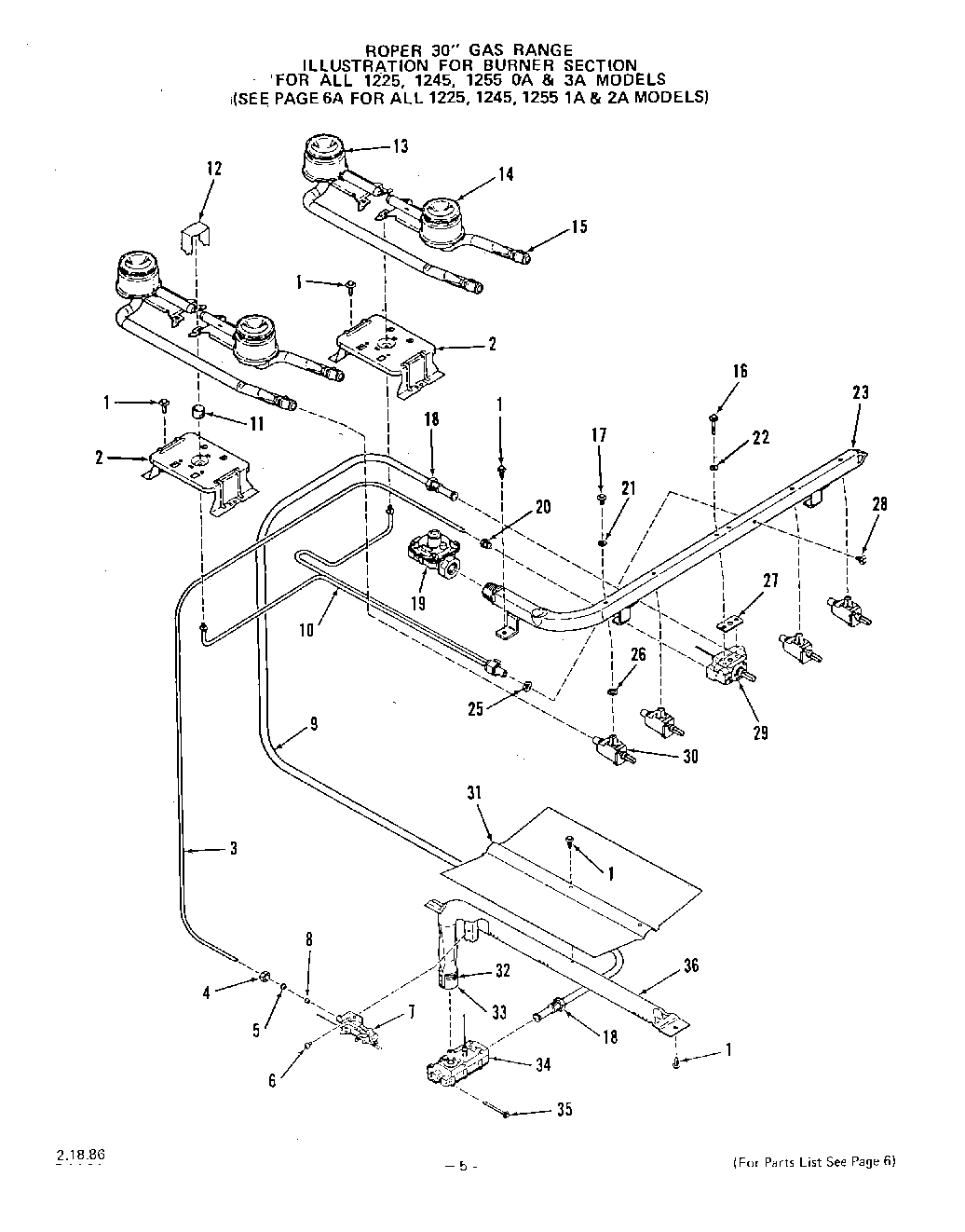

| 1 | Screw 10-16x7/16`` |
| 2 | Support-Top Burner |
| 3 | Tubing 3/16`` |
| 4 | Compression Nut 3/16`` |
| 5 | Compression Ball Sleeve 3/16`` |
| 6 | Screw 10-24x1/4`` |
| 7 | Pilot Only (Inc`s 90) |
| 8 | Orifice Cup Only (For 94) |
| 9 | Tubing 3/8`` |
| 10 | Pilot w/Filter |
| 11 | Pilot Cup (3 Req) |
| 12 | Top Pilot Shield (3 Req) |
| 13 | Rear Top Burner-Rt. or Lt. (Inc`s. Key 4) |
| 14 | Front Top Burner-Rt. or Lt. (Inc`s.Key 4) |
| 15 | Air Shutter |
| 16 | Mounting Screw (2 Req. for 114) |
| 17 | Mounting Screw (Inc`s 86) |
| 18 | Inverted Nut 3/8`` |
| 19 | Pressure Regulator |
| 20 | Loxit Nut 3/16`` |
| 21 | Gasket (For 81) |
| 22 | Gasket (For 83) |
| 23 | Manifold Pipe |
| 25 | Gasket |
| 26 | Silicone Rubber Gasket |
| 27 | Silicone Rubber Gasket |
| 28 | Mounting Screw 5/16-24 |
| 29 | Oven Thermostat (Inc`s. 27) |
| 30 | Gas Valve (5 Req) |
| 31 | Baffle - Oven Burner |
| 32 | Adjustment Screw -Air Shutter |
| 33 | Air Shutter |
| 34 | Control Valve (Inc`s. 7,8) |
| 35 | Screw 10-32 x 2`` |
| 36 | WPL 319255 |
