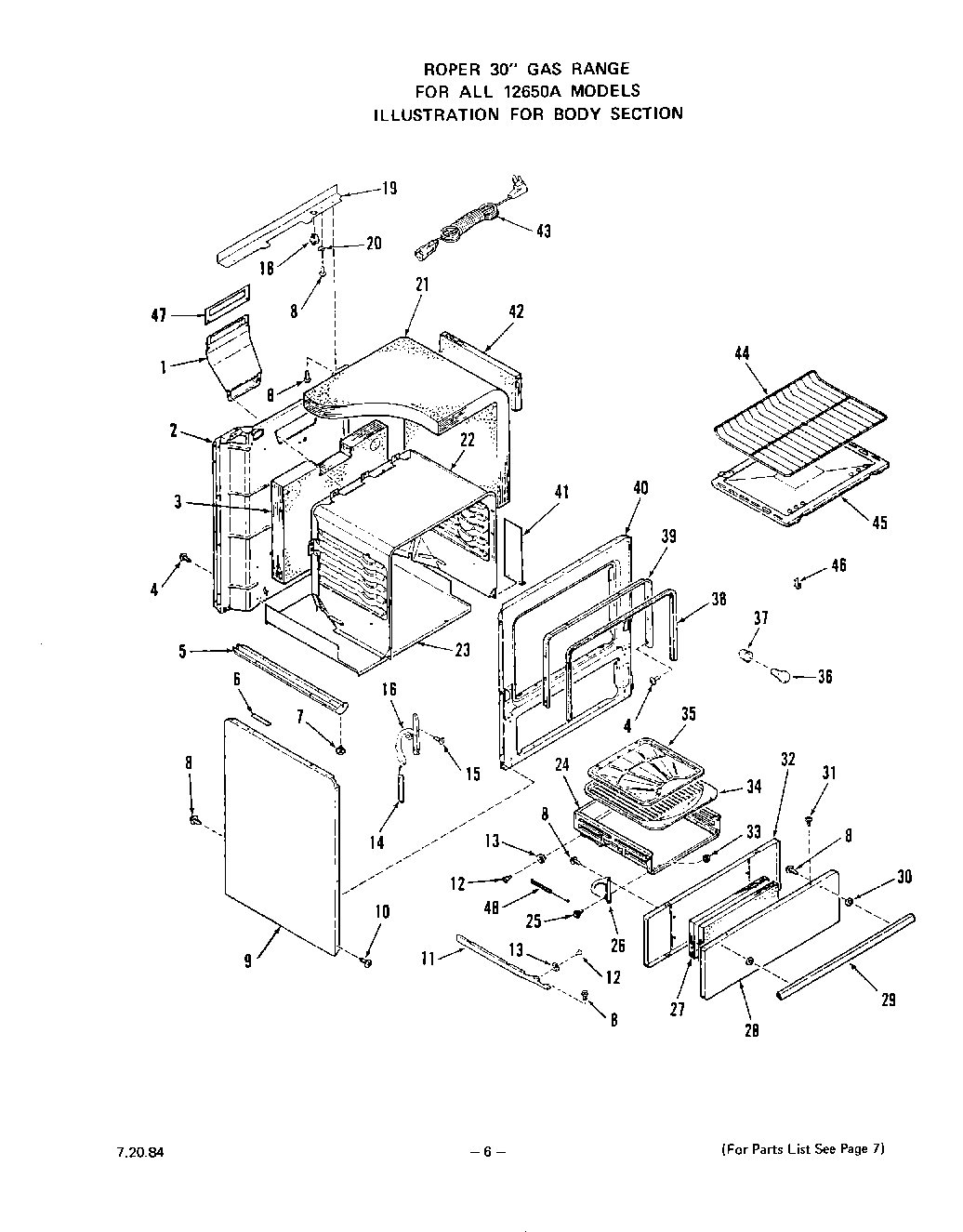

1265^0A 05 – BODY

Products

Position	Product
1	Flue Deflector
2	Back-Main
3	Insulation-Oven Back
5	Base w/Levelers (Lt. or Rt.)
6	Spacer-Main Top (2 Req)
7	Leg Leveler (4 Req)
8	Screw 10-16×7/16“
9	White
9	Almond
9	Body Side (Lt. or Rt.)
10	Screw 10ABx1/2“
11	Right
11	WP691371 Whirlpool Belt
11	Broiler Drawer Guide (Inc`s. 12, 13)
12	Shoulder Rivet
13	Roller
14	spring-oven door (lt. or rt.)
15	Screw 10-32 x 5/8“
16	Hinge-Oven Door
16	Right
16	Left
18	Disconnect
19	Cover-Backguard Bottom Wire
20	Clip
21	Insulation-Oven Top & Sides (1 Piece)
22	Oven Body (14450A Models)
23	Bottom-Main
24	Broiler Drawer (Inc`s. 12, 13)
25	Bolt-Shoulder
26	Hinge-Broiler Door
26	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
26	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
28	Almond
28	Front Panel-Broiler Door
28	White
29	Handle-Broiler Door
30	spacer-handle
31	Screw-10-32×1/2“
32	Lining-Broiler Door (14450A Models)
33	Keps Nut 10-24
34	Broiler Pan
35	Broiler Pan Grid
36	Oven Lamp Bulb
37	Holder-Oven Lamp Bulb
38	WPL 326047
39	main chassis (almond)
40	WPL 326042
41	WPL 328984
42	W10820036 Whirlpool Door Switch Kit
43	Range Service Cord
44	WPL 326068
45	WPL 327083
46	Thermostat Bulb Clip (2 Required)
47	WPL 327925
48	WPL 327481
