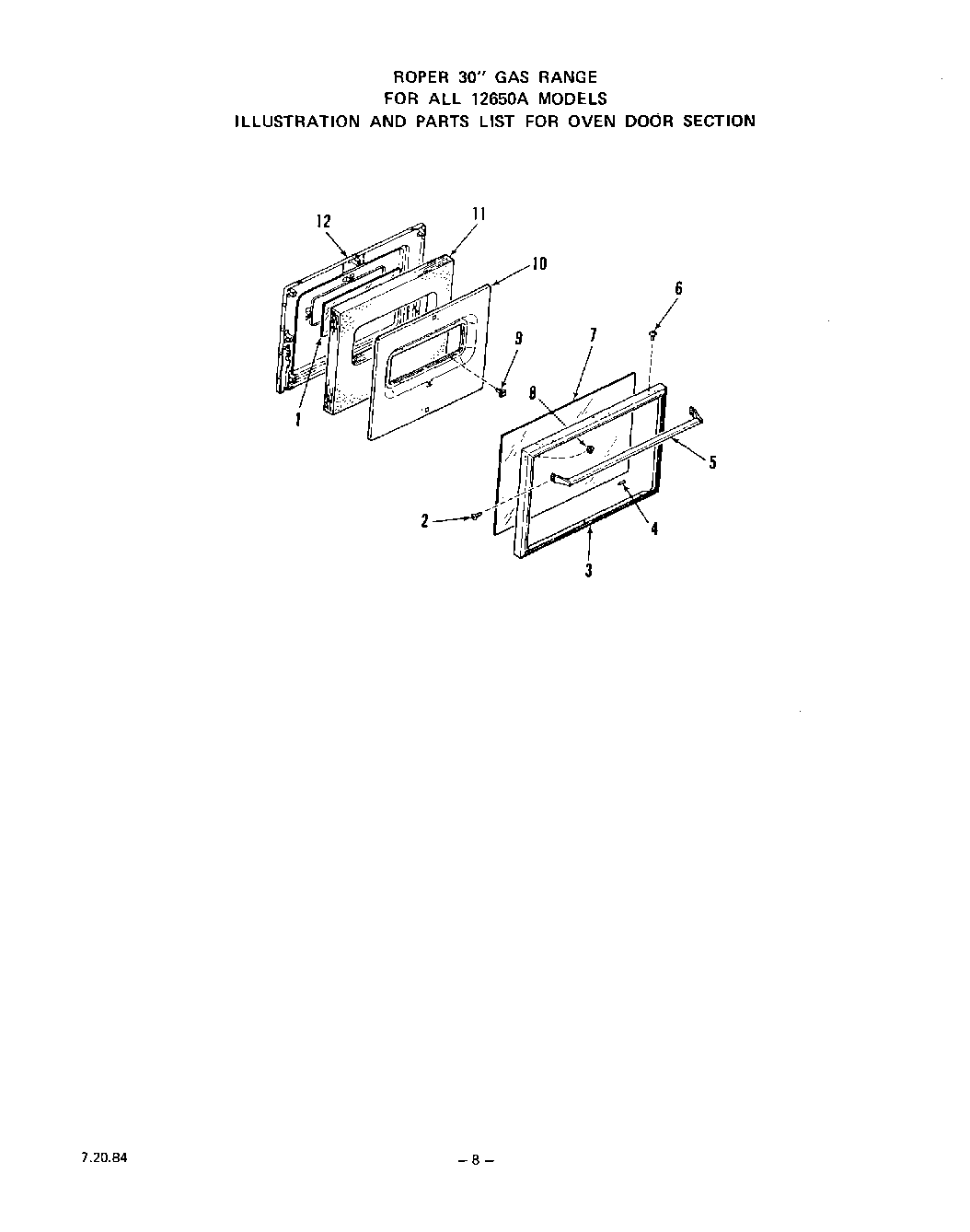

1265^0A 06 – OVEN DOOR

Written by

Products

Position	Product
	xWire Harness
1	Glass-Inner Oven Door
2	Screw 8-32 x 1/2“
3	frame-oven door
4	Cushion-Door Glass
5	Handle-Oven Door
6	Screw-10-32×1/2“
7	outer glass-oven door
8	Keps Nut 8-32
9	Screw 10 – 32×3/8“
10	Retainer-Oven Door Insulation
11	Insulation
12	Lining-Oven Door (14450A Models)
12	Switches – Gas Valve
12	main
