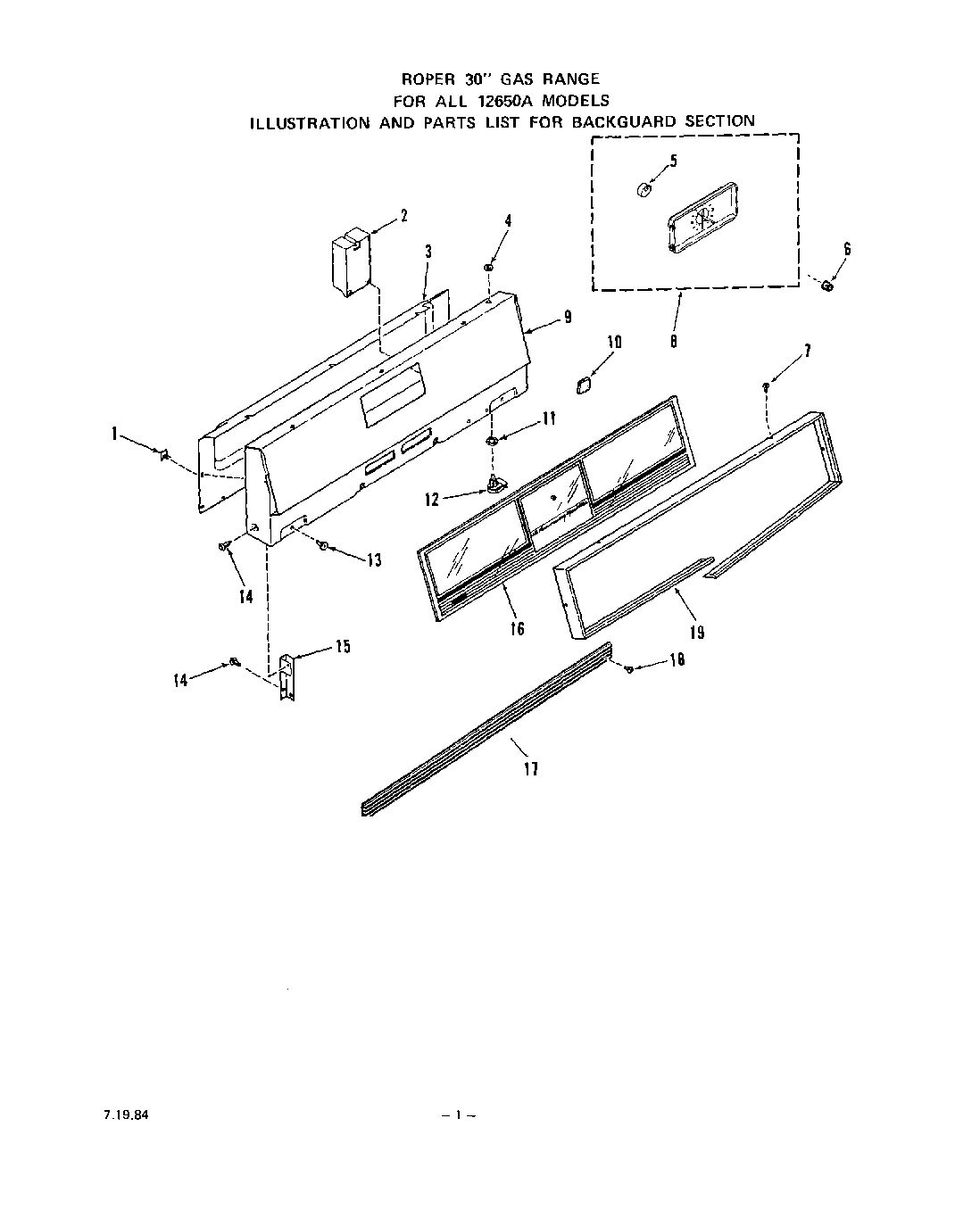

1265W0A 02 – BACKGUARD – Aparts

1265W0A 02 – BACKGUARD

Products

Position	Product
1	Clip
2	Module - Spark Igniter
3	Wire Cover-Backguard
4	Knurled Nut
5	Clock Motor
6	Knob-Clock
7	Screw 6-20x3/8``
8	Clock (Inc`s. 5)
9	Crosstie
10	Space
11	Lock Nut
12	Push Switch-Oven Light
13	Screw 10ABx1/2``
14	Screw 10-16x7/16``
15	Support-Backguard (Left)
15	Support-Backguard (Right)
15	Support-Backguard
16	Backguard Glass
17	Trim-Crosstie
18	Screw 6-20x3/8``
19	Bezel-Backguard
