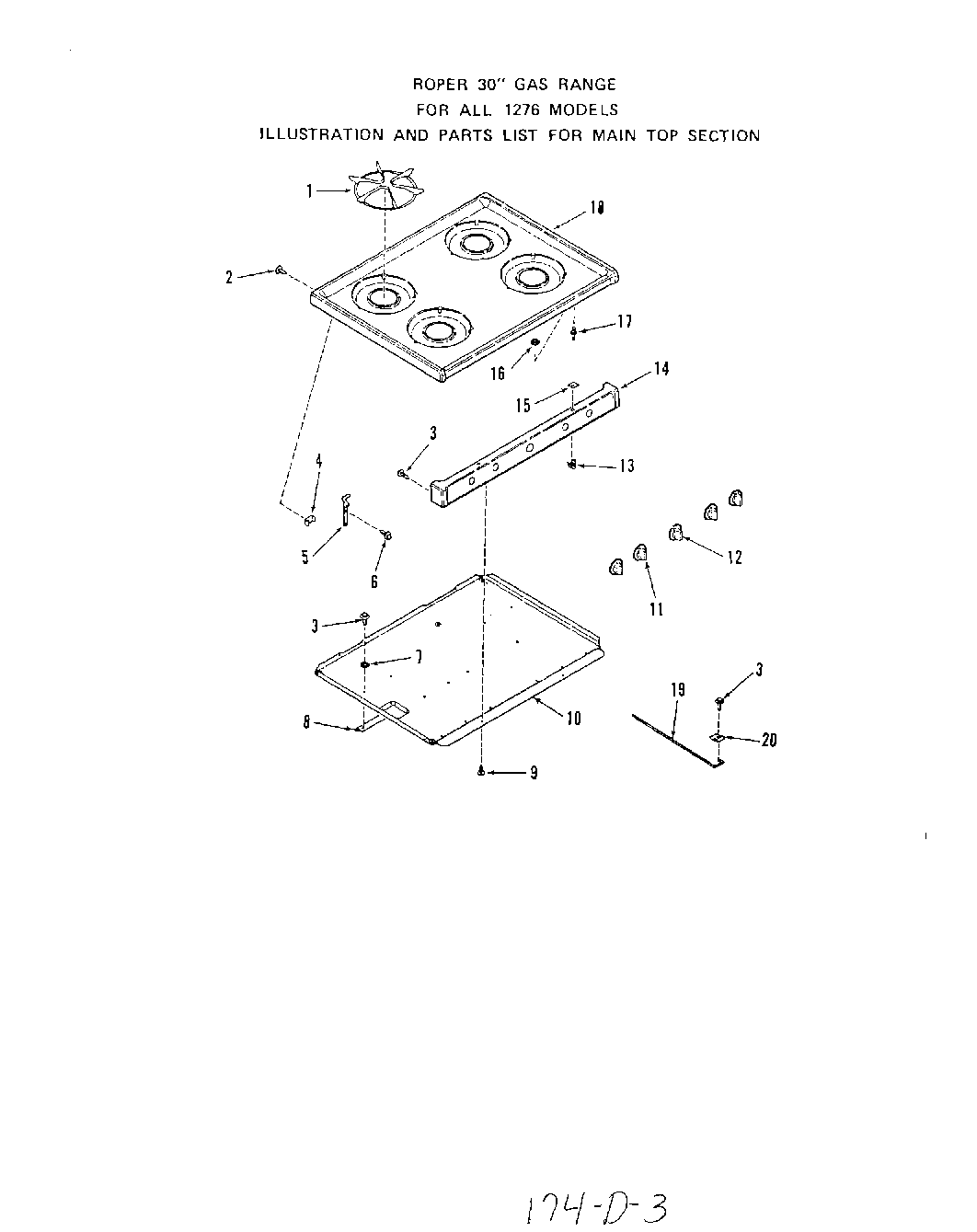

1276^0A 03 – MAIN TOP

Products

PositionProduct
1Top Grate (4 Required)
2Screw-10-32×1/2“
3Screw 10-16×7/16“
4bracket-main top hinge (lt. or rt.)
5Left
5Right
6WPL 321162
7Washer
8Front Stiffener-Burner Box Bottom
8Rear Stiffener-Burner Box Bottom
9Screw 10-32×3/8“
10Burner Box Bottom (All 13052A & 3A Models)
11Knob-Gas Valve (4 Req)
12Knob-Thermostat
13Catch-Main Top Strike (2 Required)
14Panel-Manifold (White)
15Washer
16Keps Nut 8-32
17Strike-Main Top (2 Required)
18White
19Support Rod-Main Top
20Clamp
