1276W0A 02 – BACKGUARD

1276W0A 02 – BACKGUARD

Written by

in

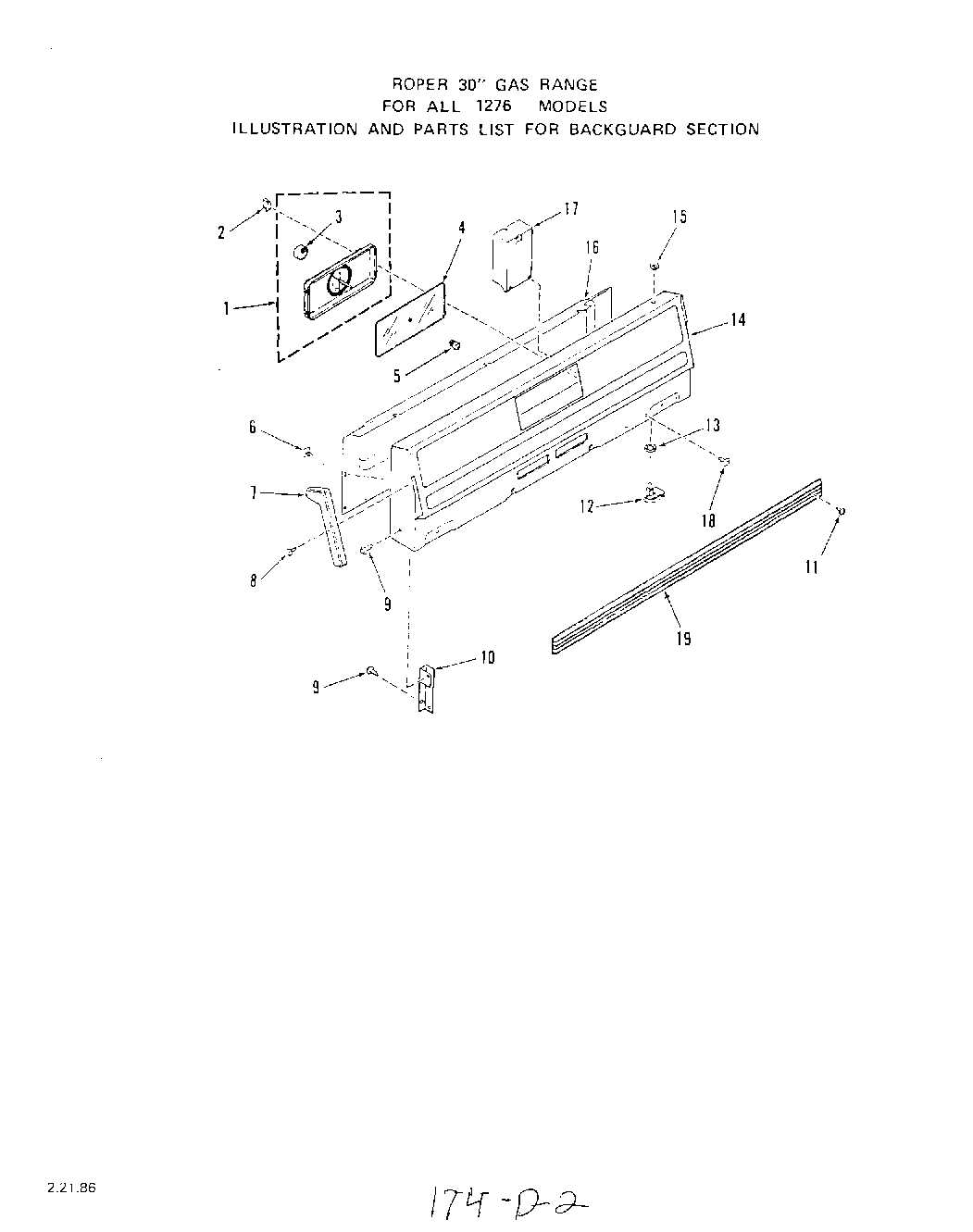

1276W0A 02 – BACKGUARD

Products

Position	Product
1	Clock w/4 Hr. Timer (Inc`s. Key 3)
2	Clip-Clock (4 Req)
3	Clock Motor
4	Clock Glass
5	Knob-Clock (Start & Stop Time)
6	Clip
7	End Cap (Left)
7	Right
8	Screw 6-20×3/8“
9	Screw 10-16×7/16“
10	Support-Backguard (Right)
10	Support-Backguard (Left)
11	Screw 6-20×3/8“
12	Push Switch-Oven Light
13	Lock Nut
14	Crosstie-Backguard
15	Knurled Nut
16	Wire Cover-Backguard
17	Module – Spark Igniter
18	Screw 13-16 x 1/2“
19	Trim-Crosstie
