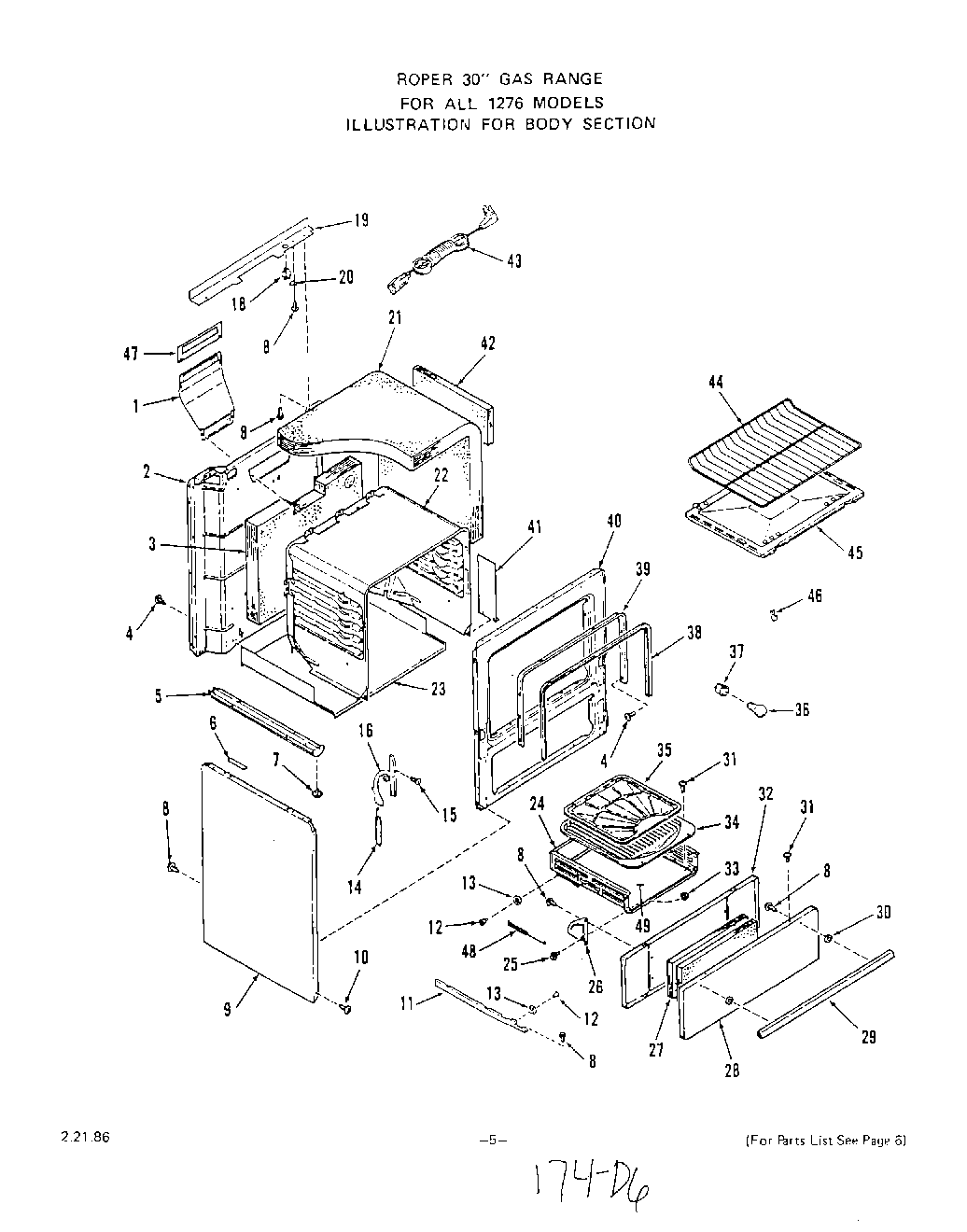

1276W0A 06 – BODY

Products

Position	Product
1	Flue Deflector
2	Back-Main
3	Insulation-Oven Back
5	Base w/Levelers (Lt. or Rt.)
6	Spacer-Main Top (2 Req)
7	Leg Leveler (4 Req)
8	Screw 10-16×7/16“
9	White
10	Screw 10ABx1/2“
10	WP691371 Whirlpool Belt
10	Right
12	Shoulder Rivet
13	Roller
14	spring-oven door (lt. or rt.)
15	Hinge-Oven Door (Left)
15	Hinge-Oven Door (Right)
15	Screw
18	Disconnect
19	Cover-Backguard Bottom Wire
20	Clip
21	Insulation-Oven Top & Sides (1 Piece)
22	Oven Body (14451A Models)
23	Bottom-Main
24	Drawer-Broiler (Inc`s. 12,13) (14451A Models)
25	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
25	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
25	Bolt-Shoulder
28	White
29	Handle-Broiler Door
30	spacer-handle
31	Screw-10-32×1/2“
32	Lining-Broiler Door (14451A Models)
33	Keps Nut 10-24
34	Pan-Broiler (14451A M
35	WPL 331588
36	Oven Lamp Bulb
37	Holder-Oven Lamp Bulb
38	WPL 326047
39	main chassis (almond)
40	Front Frame
41	WPL 328984
42	W10820036 Whirlpool Door Switch Kit
43	Range Service Cord
44	WPL 326068
45	WPL 331539
46	Thermostat Bulb Clip (2 Required)
47	WPL 329314
48	WPL 327481
49	Switches – Gas Valve
49	WPL 331554
49	main
