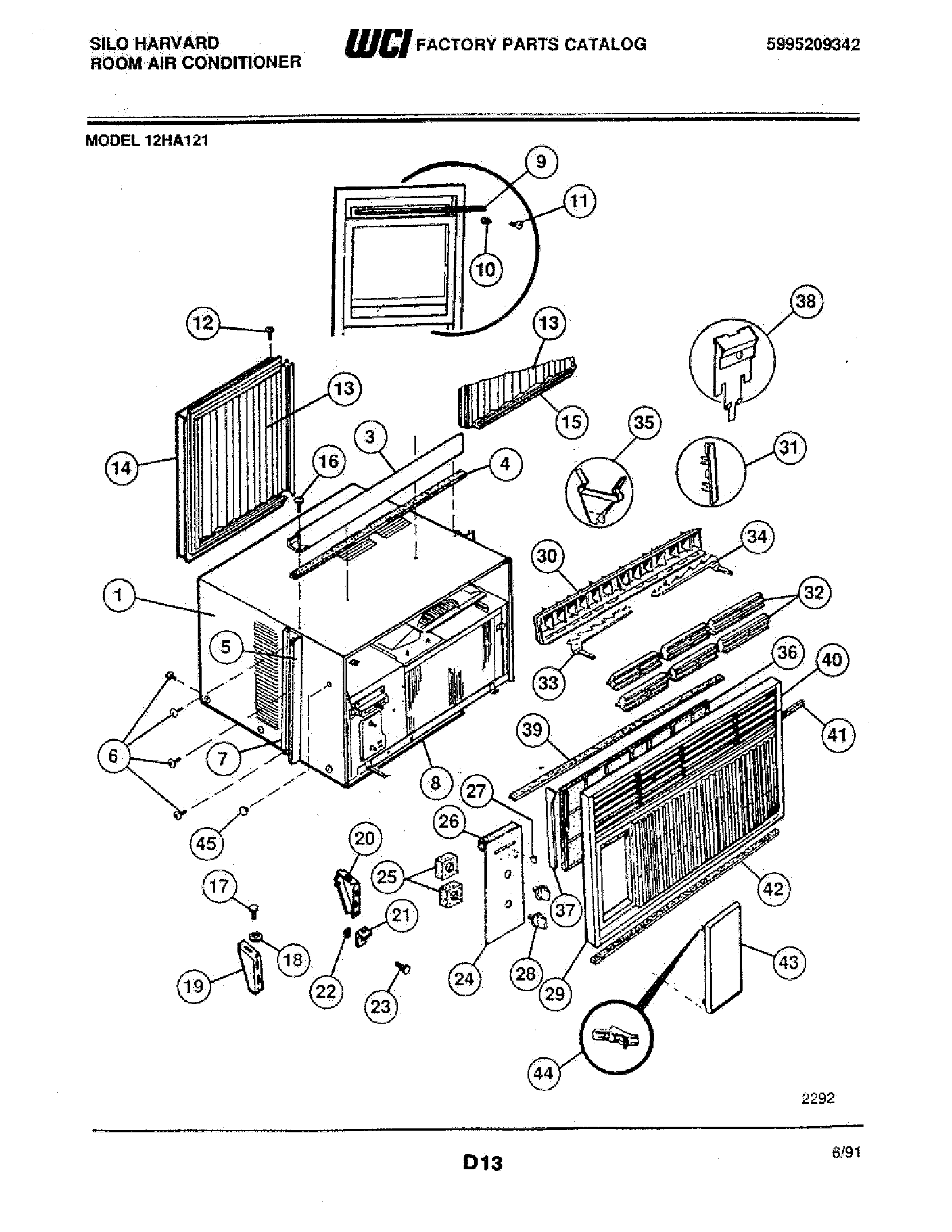

12HA121 03 – WRAPPER

12HA121 03 – WRAPPER

Written by

in

12HA121 03 – WRAPPER

Products

PositionProduct
WCI 5303210207
1WCI 5303207184
3SUPPORT-TOP
4WCI 5303207200
5RETAINER, ACCORDION
7SEAL-RETAINER (NON-ILLUSTRATED)
8SEAL
95304407729 Frigidaire Air Conditioner Seal
10BRACKET
12WCI 3002801
13WCI 5303211382
14WCI 3202964
15WCI 3203060
16134178901 Frigidaire Screw
17SCREW – SILL SUPT
18316205500 Frigidaire Oven Nut
19WCI 3016225
20WCI 3016224
21BRACKET – SUPPORT
22NUT – BRACKET
23SCREW-WOOD
24WCI 5303276723
25WCI 5303001775
26WCI 5303001984
27WCI 5303002189
28WCI 5300331902
29WCI 5303210587
30VERT. LOUVER & LINK ASSY.
31RETAINER-LOUVER HORIZONTAL
32WCI 5303019015
33LINK – VERT LOUVER RH
34LINK VERTICAL LOUVER LH
35WCI 5303001844
36WCI 5303209190
37RAIL-FILTER (NON-ILLUSTRATED)
37RAIL-FILTER (NON-ILLUSTRATED)
38CLIP – SPRING (NON-ILLUSTRATED)
39SEAL TOP FRAME
40WCI 5303207203
41WCI 3018413
42WCI 5303271583
43WCI 5303201645
44HINGE – DOOR
45WCI 3017304
