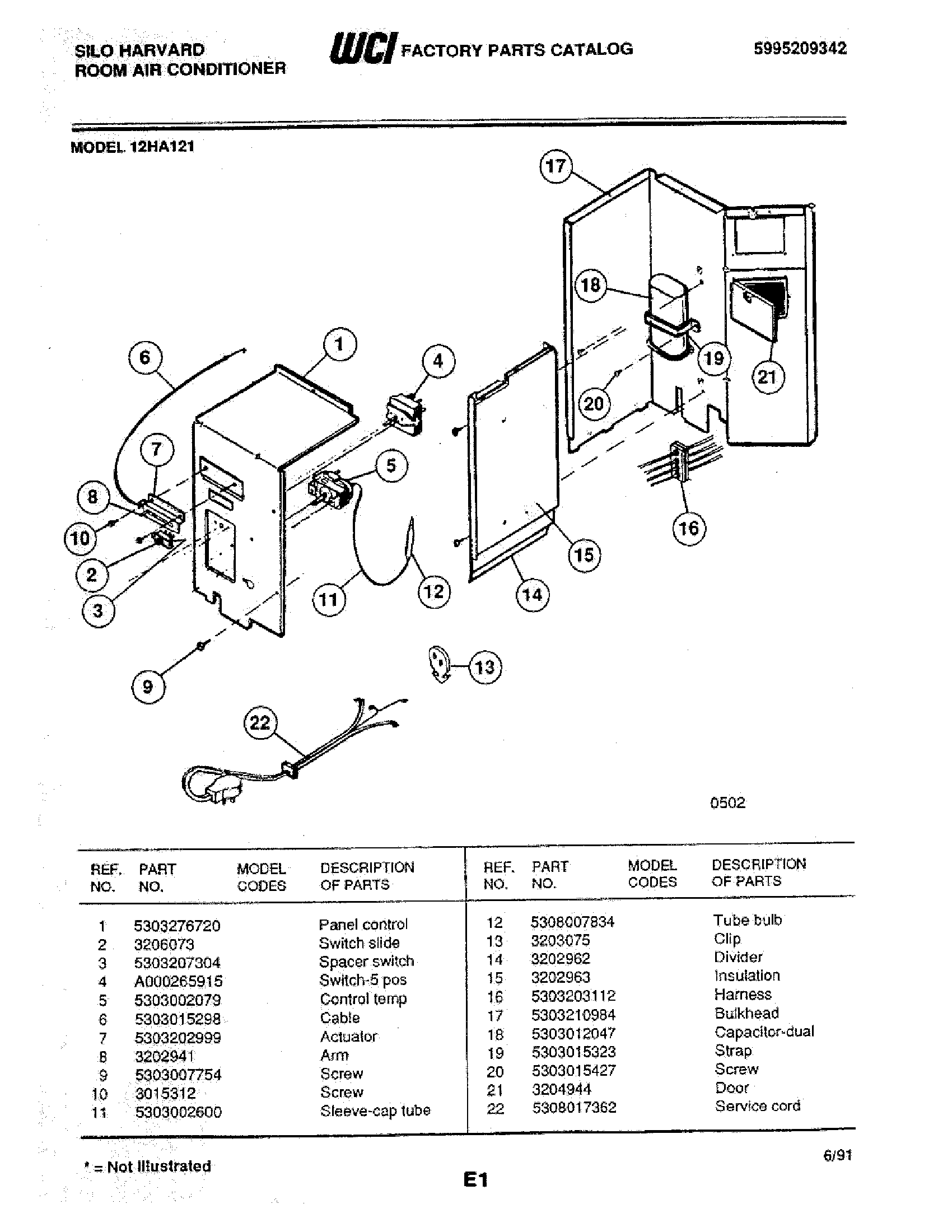

12HA121 04 – CONTROL PANEL

Products

Position	Product
1	WCI 5303276720
2	WCI 3206073
3	SPACER-SLIDE SWITCH (NON-ILLUSTRATED)
4	WCI A000265915
5	CONTROL
6	WCI 5303015298
7	RETAINER
8	ACTUATOR-ARM
9	SCREW
10	134178901 Frigidaire Screw
11	SLEEVE-CAP TUBE (NON-ILLUSTRATED)
12	TUBE CONTROL BULB
13	CLIP-FILTER & SENSING BULB
14	DIVIDER
15	WCI 3202963
16	HARNESS
17	WCI 5303210984
18	WCI 5303012047
19	STRAP
21	WCI 3204944
22	CORD-SERVICE
