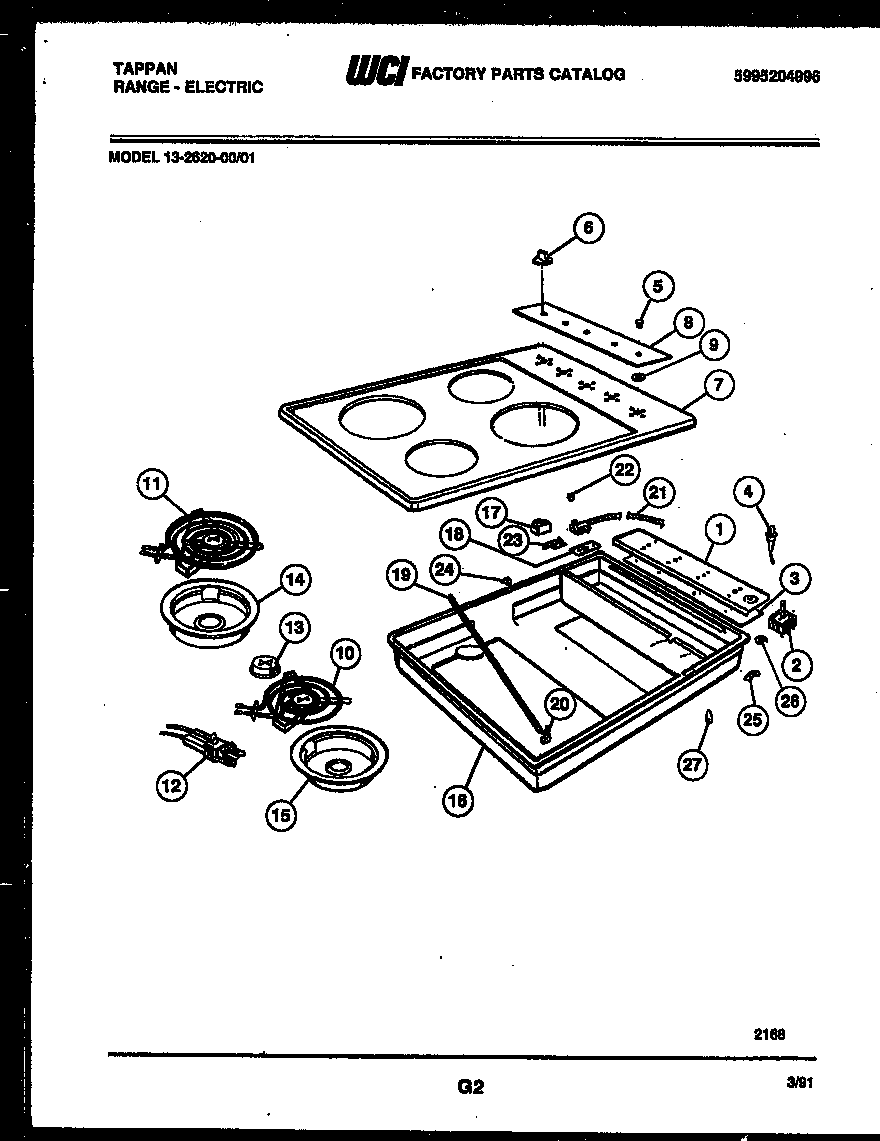

13-2620-00-01 02 – ELECTRIC SMOOTH TOP

Products

PositionProduct
*46754SCREW SW PNL. (7)
*46754SCREW-UPR OVN ASSY 6A X 3/8“ PH PAN W/ L NIBS (5)
*467545303013272 Frigidaire Oven Nut
*46753WCI 5303272287
*467535303288565 Frigidaire Screw
*46753WCI 5303272288
*46754WCI 19100290001
*46753SCREW SELECT. SW. (NON-ILLUSTRATED)
*46753SCREW-GROUND PL. MTG.
1PLATE-INST MTG
2ASWITCH-SURFACE UNIT, 2100 W
2SWITCH-SURFACE UNIT, 1200 W
3SEAL-PLATE MTG
4LIGHT-IND-LOWER OVEN
5JEWEL-IND
6WCI 3051596
7WCI 529T077W19-00
8WCI 5303272286
9SEAL-INDICATOR LIGHT
10318372210 Frigidaire Oven Range 6" 1250W Surface Element
11316442300 Frigidaire Oven 2100W Coil Element 8
125303935058 Frigidaire Oven Burner Receptacle Kit
13MEDALLION, STAINLESS STEEL, SURF ELEM
14316048413 Frigidaire Oven Range Chrome 8" Drip Bow
15316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
16WCI 095T002W05-18
17WCI 5301506869
18WCI 554T356F01
19WCI 618T028P01
20FASTENER-CABLE CLAMP
21WCI 5303207823
22BUSHING-INSULATION (2)
23HINGE-TOP MTG
24FSTNR., CABLE CLAMP
25WCI 241T017P186
26WCI 614T024P01
27711T047P93 Frigidaire Oven Terminal
