13-2626-23-10 02 – ELECTRIC SMOOTH TOP

13-2626-23-10 02 – ELECTRIC SMOOTH TOP

Written by

in

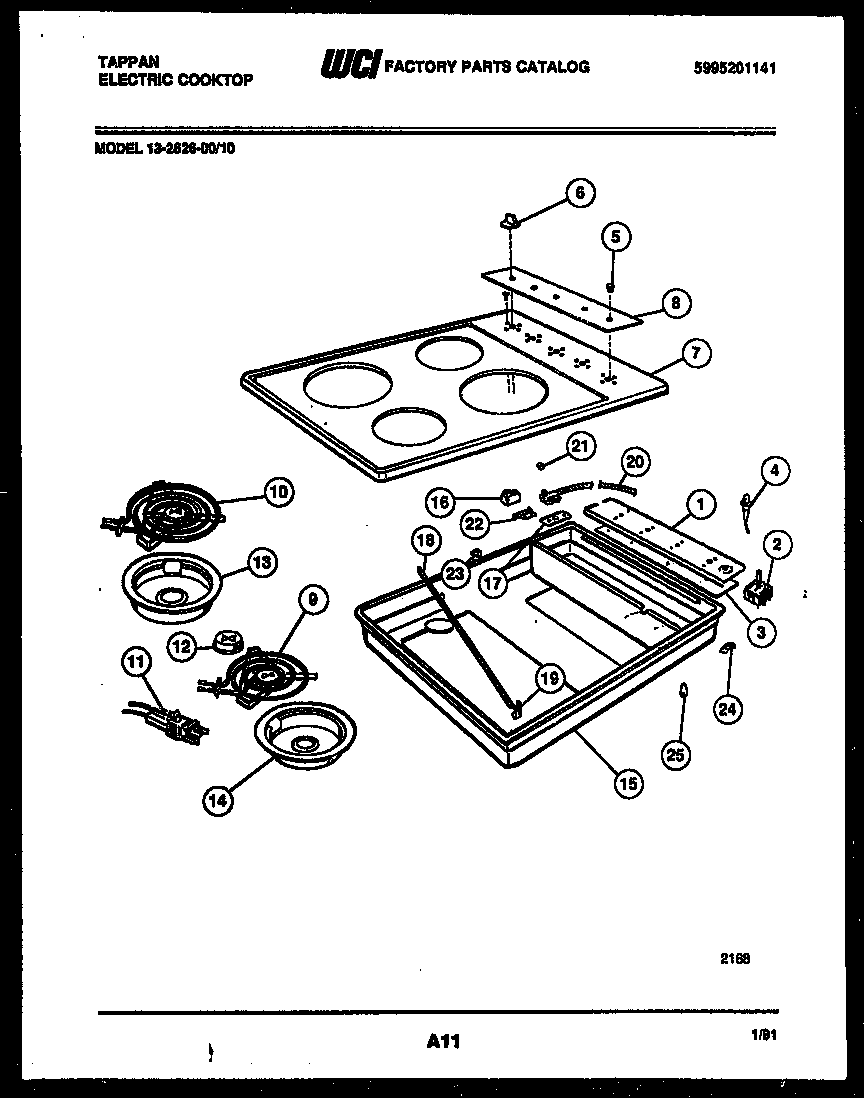

13-2626-23-10 02 – ELECTRIC SMOOTH TOP

Products

PositionProduct
*43515SCREW SELECT. SW. (NON-ILLUSTRATED)
*43515WCI 191T109F17
*43515WCI 614T011P01
*43515WCI 299T404S01
*43515SCREW-GROUND PL. MTG.
*435155303013272 Frigidaire Oven Nut
*435155303288565 Frigidaire Screw
*43515SCREW SW PNL. (7)
1PLATE-INST MTG
25303935086 Frigidaire Oven Top Burner Switch Kit
3SEAL-PLATE MTG
4WCI 318T026P02
5WCI 045T065P01
6WCI 5303207663
7WCI 529T077W19-23
8WCI 521T084P04
9318372210 Frigidaire Oven Range 6" 1250W Surface Element
10316442300 Frigidaire Oven 2100W Coil Element 8
115303935058 Frigidaire Oven Burner Receptacle Kit
125303017715 Frigidaire Medallion
13316048413 Frigidaire Oven Range Chrome 8" Drip Bow
14316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
15WCI 095T002W05-18
16WCI 5301506869
17WCI 554T356F01
18WCI 618T028P01
19FASTENER-CABLE CLAMP
20WCI 5303207823
21BUSHING-INSULATION (2)
22HINGE-TOP MTG
23FSTNR., CABLE CLAMP
24WCI 241T017P186
25711T047P93 Frigidaire Oven Terminal
