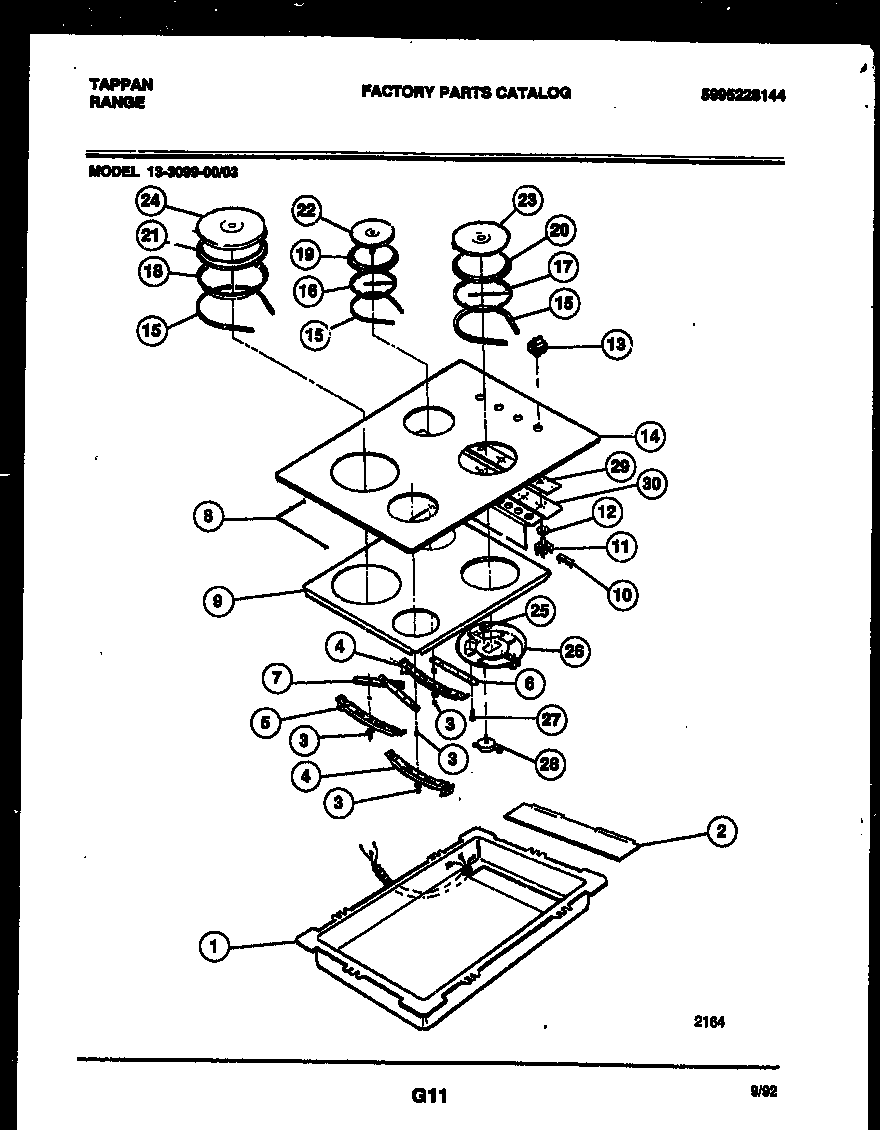

13-3099-00-03 02 – ELECTRIC SMOOTH TOP

13-3099-00-03 02 – ELECTRIC SMOOTH TOP

Written by

in

13-3099-00-03 02 – ELECTRIC SMOOTH TOP

Products

PositionProduct
*7881308002868 Frigidaire 0 Screw Assembly
*78813316205500 Frigidaire Oven Nut
*78812WCI 191G002P01
*78813WCI 3051346
*78813SCREW, SURFACE UNIT MOUNTING (NON-ILLUSTRATED)
1WCI 5303200397
2WCI 3051887
3NUT
4CHANNEL-TOP ELEMENT MOUNTING LARGE
5CHANNEL-TOP ELEMENT MOUNTING SMALL (2)
6STRAP-ANIT TURN (4)
7WCI 3051888
8TAPE-BLACK CLOTH (1/2)
9SUPPORT-SOLID ELEMENT
10LIGHT-IND-LOWER OVEN
11ASWITCH-8“ ELEMENT
11SWITCH-6“ ELEMENT
11BSWITCH-TOP UNIT-AUTO-MED
12BUSHING-SNAP
13AWCI 5303270244
13WCI 5303270243
14WCI 5303270193
15WCI 5303051893
16WCI 5303051881
17WCI 5303051882
18RETAINER, LARGE
19WCI 5303270238
20WCI 5303270239
21WCI 5303270240
22WCI 5303051142
23SURFACE UNIT, AUTO.
24SURFACE UNIT LARGE
25NUT
26SHIELD-ELEMENT AUTO
275303311174 Frigidaire Oven Screw
28SWITCH-THERMAL PROTECTOR (4)
29WCI 3051608
30WCI 3051602
