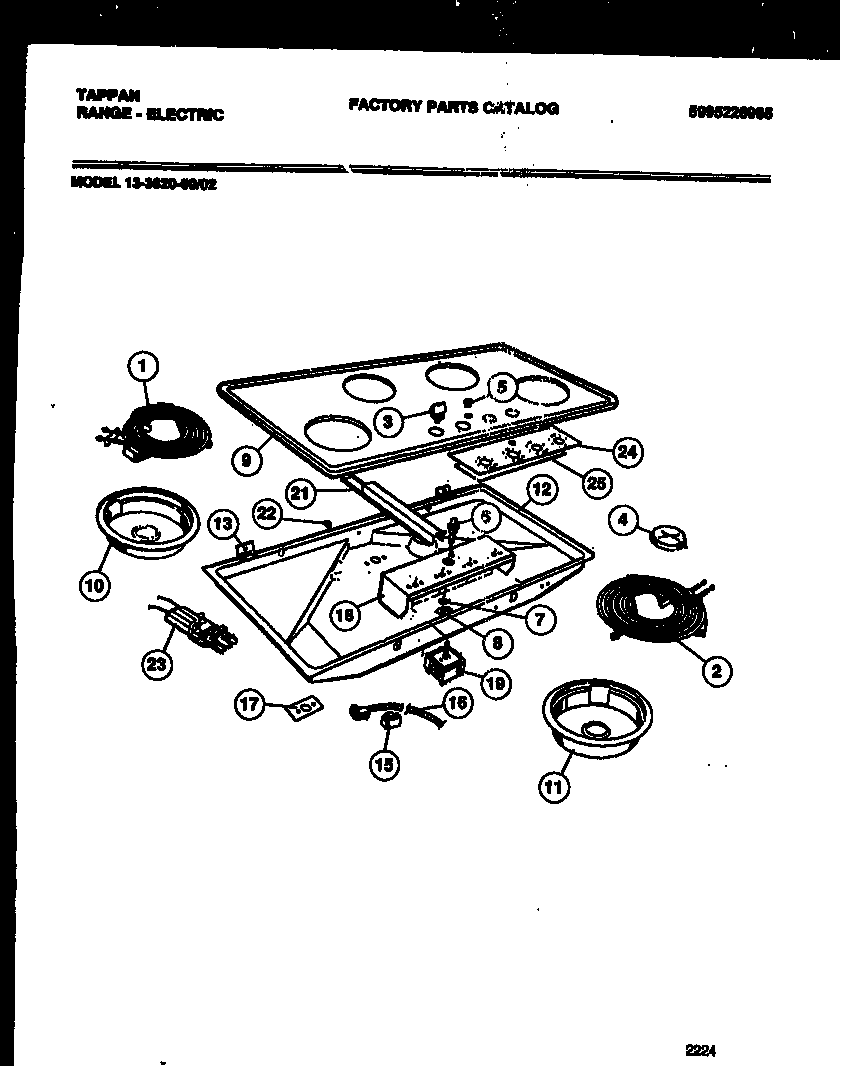

13-3620-00-02 02 – ELECTRIC SMOOTH TOP AND COOKTOP PAR

13-3620-00-02 02 – ELECTRIC SMOOTH TOP AND COOKTOP PAR

Written by

in

13-3620-00-02 02 – ELECTRIC SMOOTH TOP AND COOKTOP PAR

Products

PositionProduct
*15334SCREW-GROUND PL. MTG.
*15333SCREW SW PNL. (7)
*15334SCREW-UPR OVN ASSY 6A X 3/8“ PH PAN W/ L NIBS (5)
*153345303013272 Frigidaire Oven Nut
*153345303288565 Frigidaire Screw
*15334WCI 19100290002
1318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3WCI 3051596
4MEDALLION, STAINLESS STEEL, SURF ELEM
5JEWEL-IND
6LIGHT-IND-LOWER OVEN
7SEAL-INDICATOR LIGHT
8RETAINER-LENS
9MAIN TOP, WHITE
9WCI 3051771
10316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
11316048413 Frigidaire Oven Range Chrome 8" Drip Bow
12WCI 5303291255
13HINGE-TOP MOUNTING
15WCI 5301506869
16WCI 5303207823
17WCI 5303291326
18PLATE, INSTRUMENT MTG
19SWITCH-SURFACE UNIT, 1200 W
19ASWITCH-SURFACE UNIT, 2100 W
235303935058 Frigidaire Oven Burner Receptacle Kit
24WCI 5303272294
25SEAL SWITCH PROTECTION
