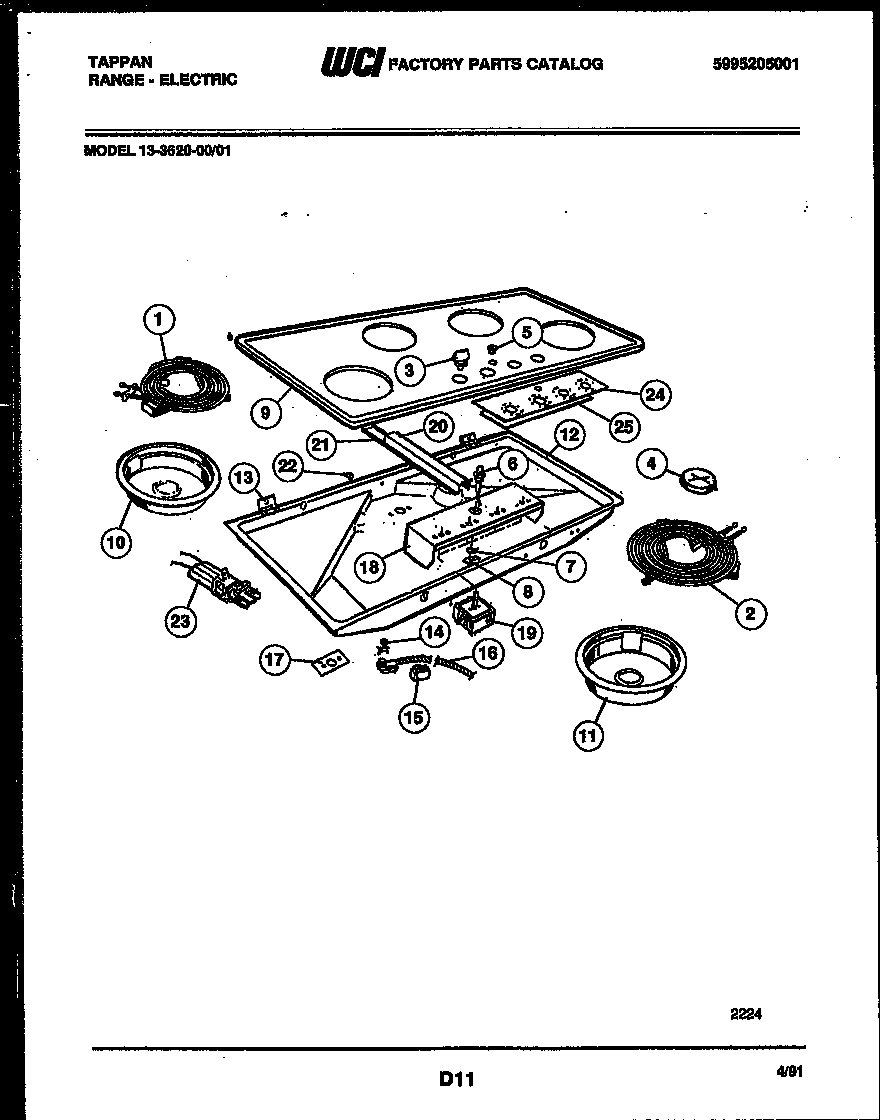

13-3620-23-01 02 – ELECTRIC SMOOTH TOP

13-3620-23-01 02 – ELECTRIC SMOOTH TOP

Written by

in

13-3620-23-01 02 – ELECTRIC SMOOTH TOP

Products

PositionProduct
*50010SCREW SW PNL. (7)
*50010WCI 5303272293
*50011WCI 19100290002
*50011SCREW-GROUND PL. MTG.
*50010WCI 5303272292
*50010SCREW-UPR OVN ASSY 6A X 3/8“ PH PAN W/ L NIBS (5)
*500115303013272 Frigidaire Oven Nut
*500115303288565 Frigidaire Screw
1318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3WCI 3051596
4MEDALLION, STAINLESS STEEL, SURF ELEM
5JEWEL-IND
6LIGHT-IND-LOWER OVEN
7WCI 614T024P01
8WCI 241T017P186
9WCI 529T093W04-23
10316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
11316048413 Frigidaire Oven Range Chrome 8" Drip Bow
12WCI 095T024F03-18
13HINGE-TOP MOUNTING
14BUSHING-INSULATION (2)
15WCI 5301506869
16WCI 5303207823
17WCI 554T356F01
18WCI 311T049F01
19ASWITCH-SURFACE UNIT, 2100 W
19SWITCH-SURFACE UNIT, 1200 W
20WCI 311L004F01
21WCI 311L005F01
22FSTNR., CABLE CLAMP
235303935058 Frigidaire Oven Burner Receptacle Kit
24WCI 5303272294
25SEAL SWITCH PROTECTION
