13-3628-23-01 02 – MAIN COOKTOP & BURNER PARTS

13-3628-23-01 02 – MAIN COOKTOP & BURNER PARTS

Written by

in

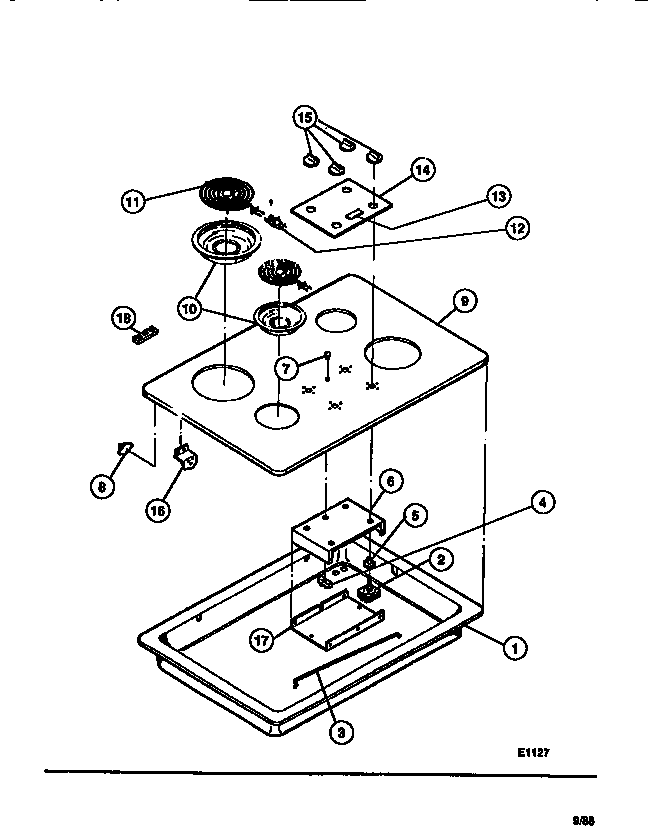

13-3628-23-01 02 – MAIN COOKTOP & BURNER PARTS

Products

PositionProduct
1WCI 3200421
2WCI 08008829
3WCI 3016817
4SIGNAL LIGHT-OVEN
5WCI 3008979
6PLATE, INSTRUMENT MTG
7JEWEL-IND
8WCI 3016829
9WCI 3200425
10A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
10316048413 Frigidaire Oven Range Chrome 8" Drip Bow
11A318372211 Frigidaire Oven 6" Electric Range Burner Kit
11316442301 Frigidaire Oven 8 Coil Element 2600W
12BLOCK-TERMINAL (4)
135303017715 Frigidaire Medallion
14WCI 3200429
15KNOB-CONTROL
16WCI 3016820
17COVER, INSTRUMENT MTG.
18ACOVER-TERM. BLOCK
185304409888 Frigidaire Oven Terminal Block with Hardware
