13-3628-23-05 02 – ELECTRIC SMOOTH TOP

13-3628-23-05 02 – ELECTRIC SMOOTH TOP

Written by

in

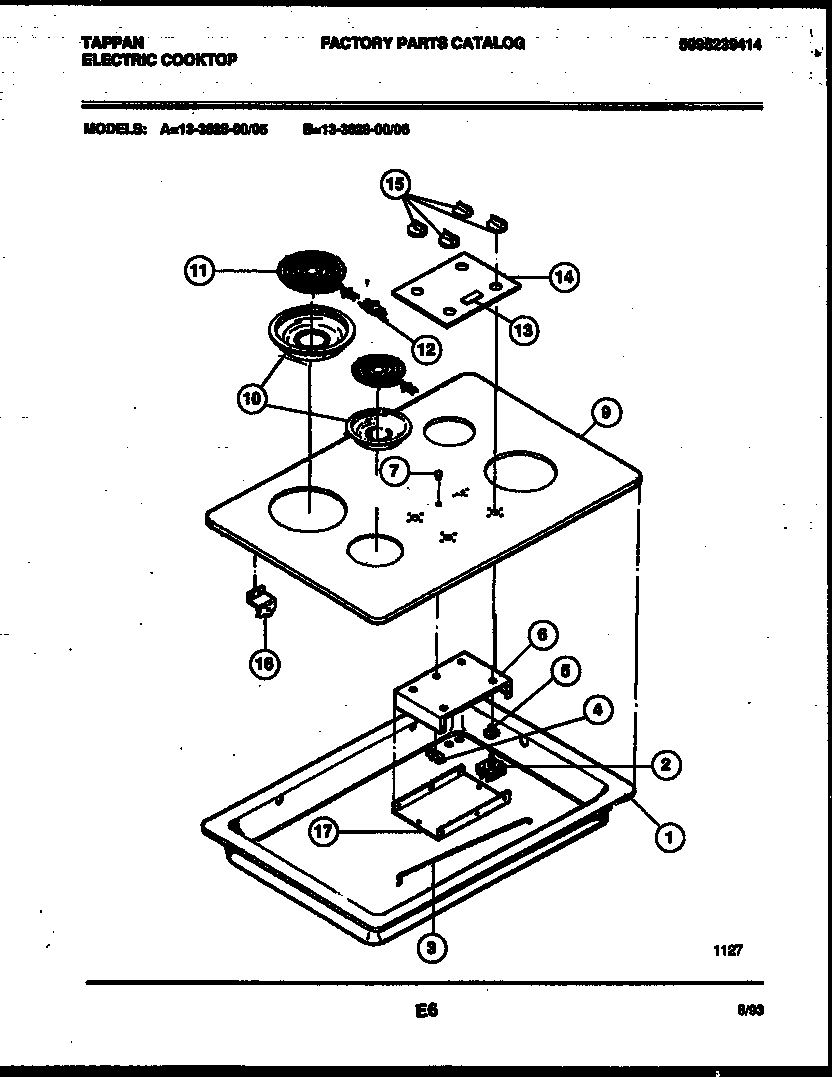

13-3628-23-05 02 – ELECTRIC SMOOTH TOP

Products

PositionProduct
*88283WCI 191S018F180
1WCI 5303299250
25303935086 Frigidaire Oven Top Burner Switch Kit
3WCI 3016817
4316022503 Frigidaire Light Lamp P-1
5WCI 08007822
6PLATE, INSTRUMENT MTG
7LENS, INDICATOR LIGHT
9MAIN TOP, ALMOND
10316048413 Frigidaire Oven Range Chrome 8" Drip Bow
10A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
115308011964 Frigidaire Surface Element P1
11A318372211 Frigidaire Oven 6" Electric Range Burner Kit
125303935058 Frigidaire Oven Burner Receptacle Kit
135303017715 Frigidaire Medallion
14WCI 3200429
15KNOB-CONTROL
16WCI 3016820
17COVER, INSTRUMENT MTG.
