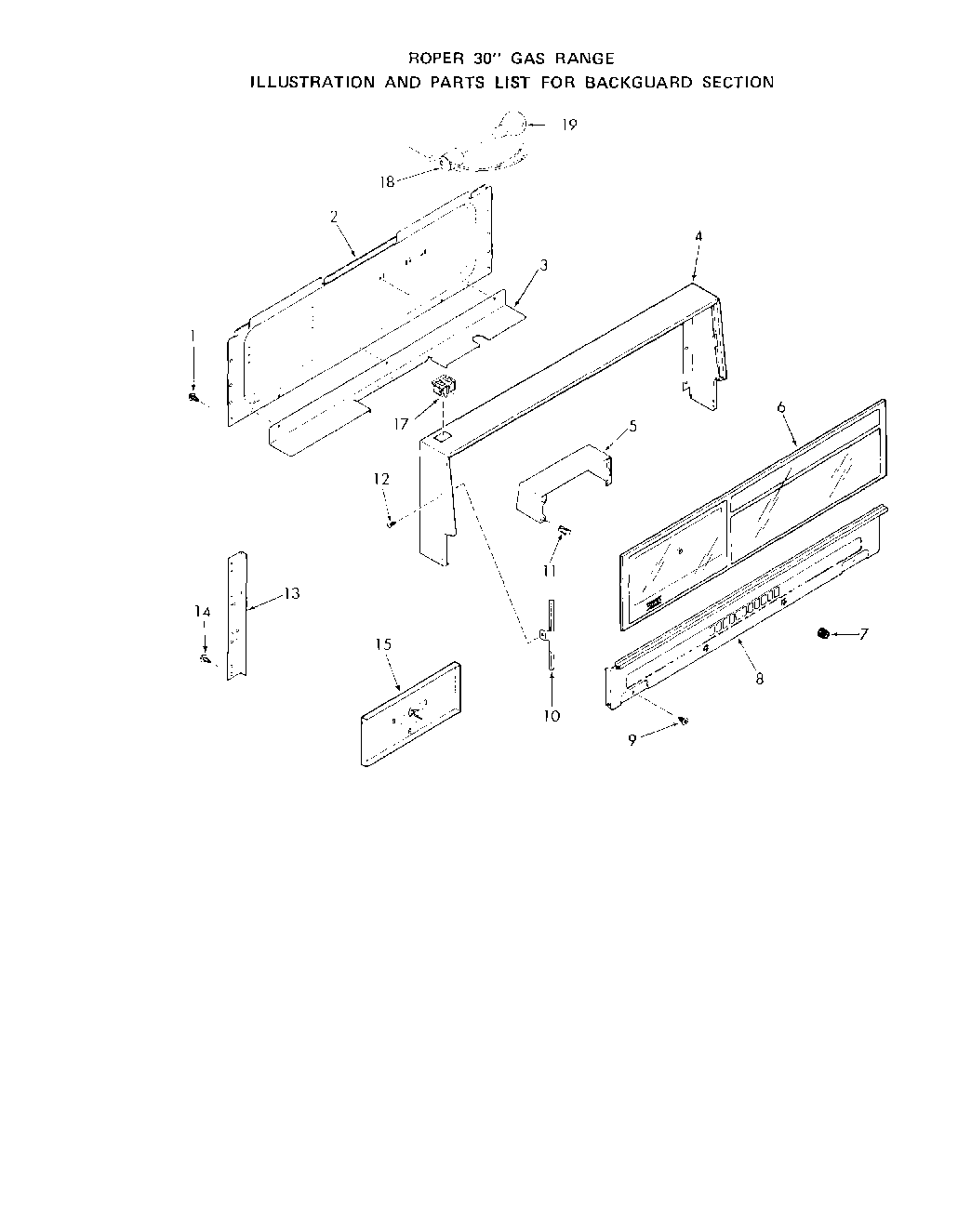

1303^0A 02 – MAIN TOP

Products

Position	Product
2	Wire Cover-Backguard
3	Bottom-Wire Cover
4	Frame-Backguard
5	Mounting Bracket-Clock
6	Top Lamp Glass
7	Knob-Clock
8	Front-Backguard Bottom
10	End Trim- Top Lamp Glass (Lt. or Rt.)
11	Tubular Clip (4 Req.)
12	Screw 6-32×3/8“
13	Support-Backguard (Lt. or Rt.)
14	WP112432 Whirlpool Nut Assembly
15	Clock w/4 Hr.Timer
17	Switch-Oven & Top Light
18	Holder-Lamp Bulb
19	Oven Lamp Bulb
