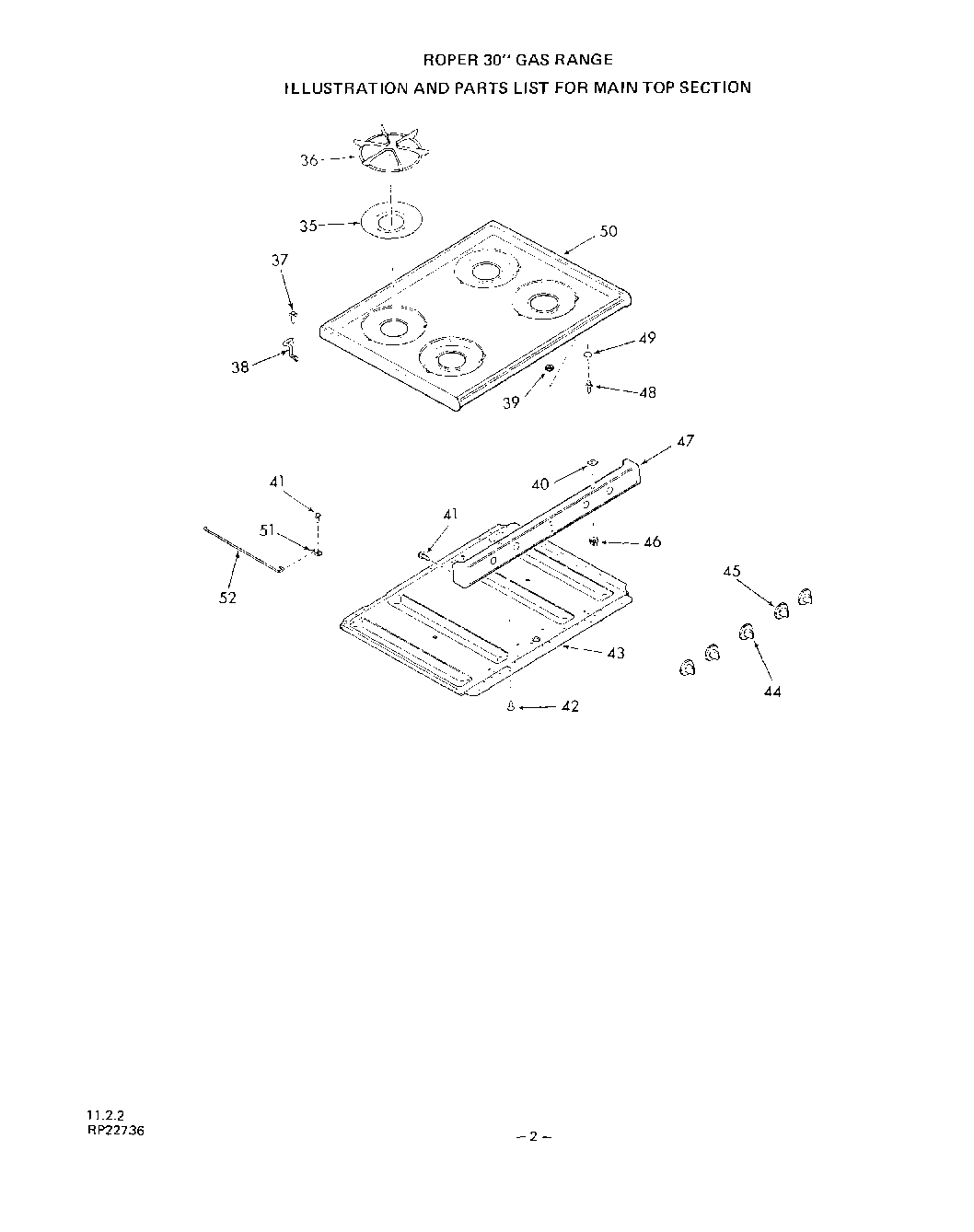

1303^0A 03 – BURNER

Products

Position	Product
35	Spill Bowl
36	Top Grate (4 Required)
37	WPL 316365
38	Hinge (Left)
38	Hinge (Right)
39	Keps Nut 8-32
40	Washer
41	WP112432 Whirlpool Nut Assembly
42	Screw 10-32×3/8“
43	Seal, Foam (2)
44	All 14630A Models
45	Knob-Gas Valve (4 Required)
46	Catch-Main Top Strike (2 Required)
47	Manifold Panel (Golden Wheat)
47	Manifold Panel (Avocado)
47	Manifold Panel (Coffee)
47	Manifold Panel (Almond)
47	Manifold Panel (White)
48	Strike-Main Top (2 Required)
49	Washer
50	Main Top (Coffee)
50	Main Top (Avocado)
50	White
50	Almond
50	Golden Wheat
51	Clip
52	Support-Main Top
