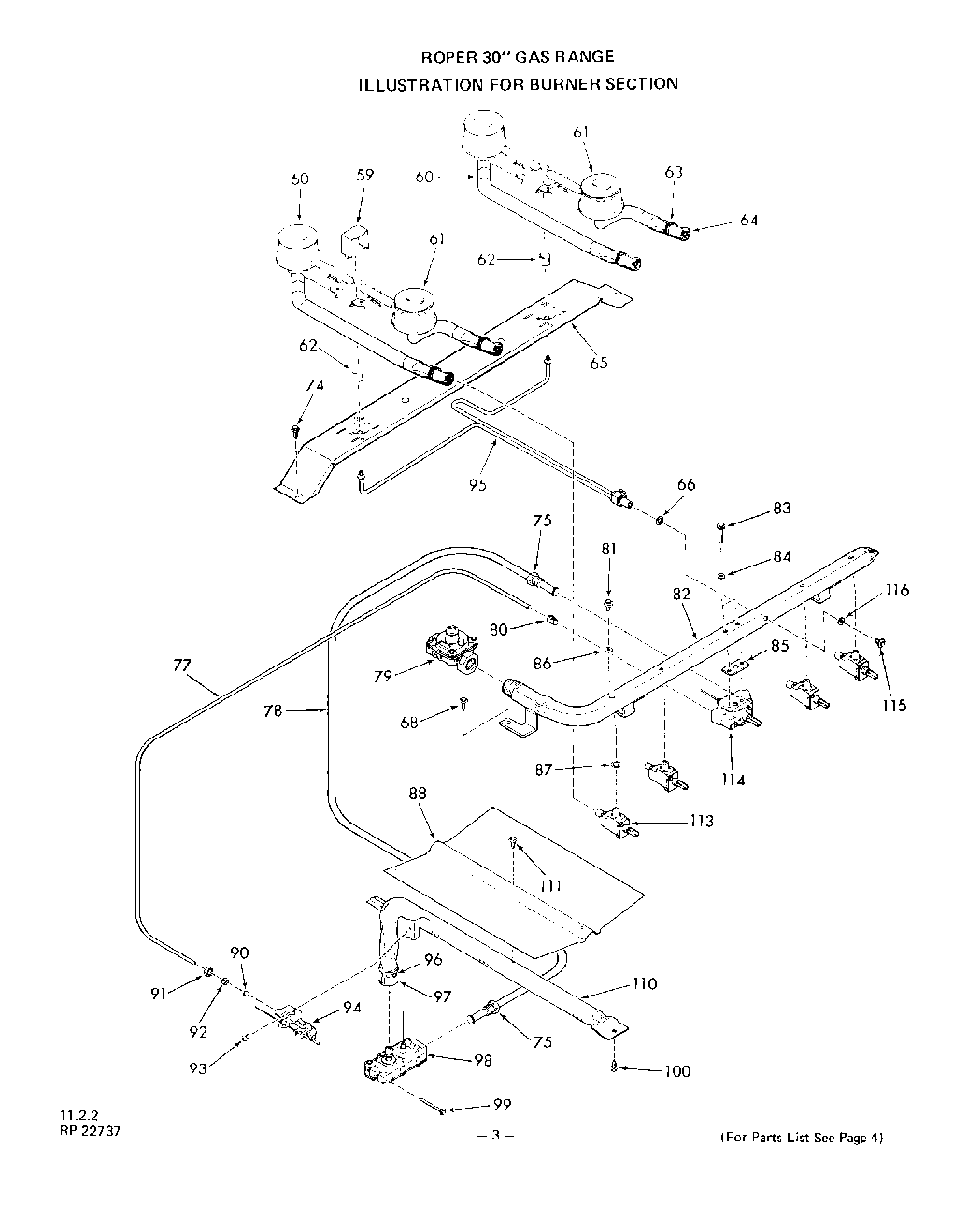

1303^0A 04 – BODY

Products

Position	Product
59	Top Pilot Shield (3 Req)
60	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
61	Front Top Burner-Lt. or Rt. (Inc`s 64 & 65)
62	Pilot Cup (3 Req)
63	Adjustment Screw-Air Shutter
64	Air Shutter
65	Support-Top Burner
66	Gasket
74	WP112432 Whirlpool Nut Assembly
75	Inverted Nut 3/8“
77	Tubing 3/16“
78	Tubing 3/8“
79	Pressure Regulator
80	Loxit Nut 3/16“
81	Mounting Screw (Inc`s 86)
82	Manifold Pipe
83	Mounting Screw (2 Req. for 114)
84	Gasket (For 83)
85	Silicone Rubber Gasket (For 114)
86	Gasket (For 81)
87	Silicone Rubber Gasket
88	Baffle – Oven Burner
90	Orifice Cup Only (For 94)
91	Compression Nut 3/16“
92	Compression Ball Sleeve 3/16“
93	Screw 10-24×1/4“
94	Pilot Only (Inc`s 90)
95	Pilot w/Filter
96	Adjustment Screw -Air Shutter
97	Air Shutter
98	Control Valve (Inc`s 34, 35)
99	Screw 10-32 x 2“
110	WPL 319255
111	WPL 316365
113	Gas Valve (4 Required-Inc`s.Keys81,86,87)
114	Oven Thermostat
115	Mounting Screw 5/16-24
116	Gasket
