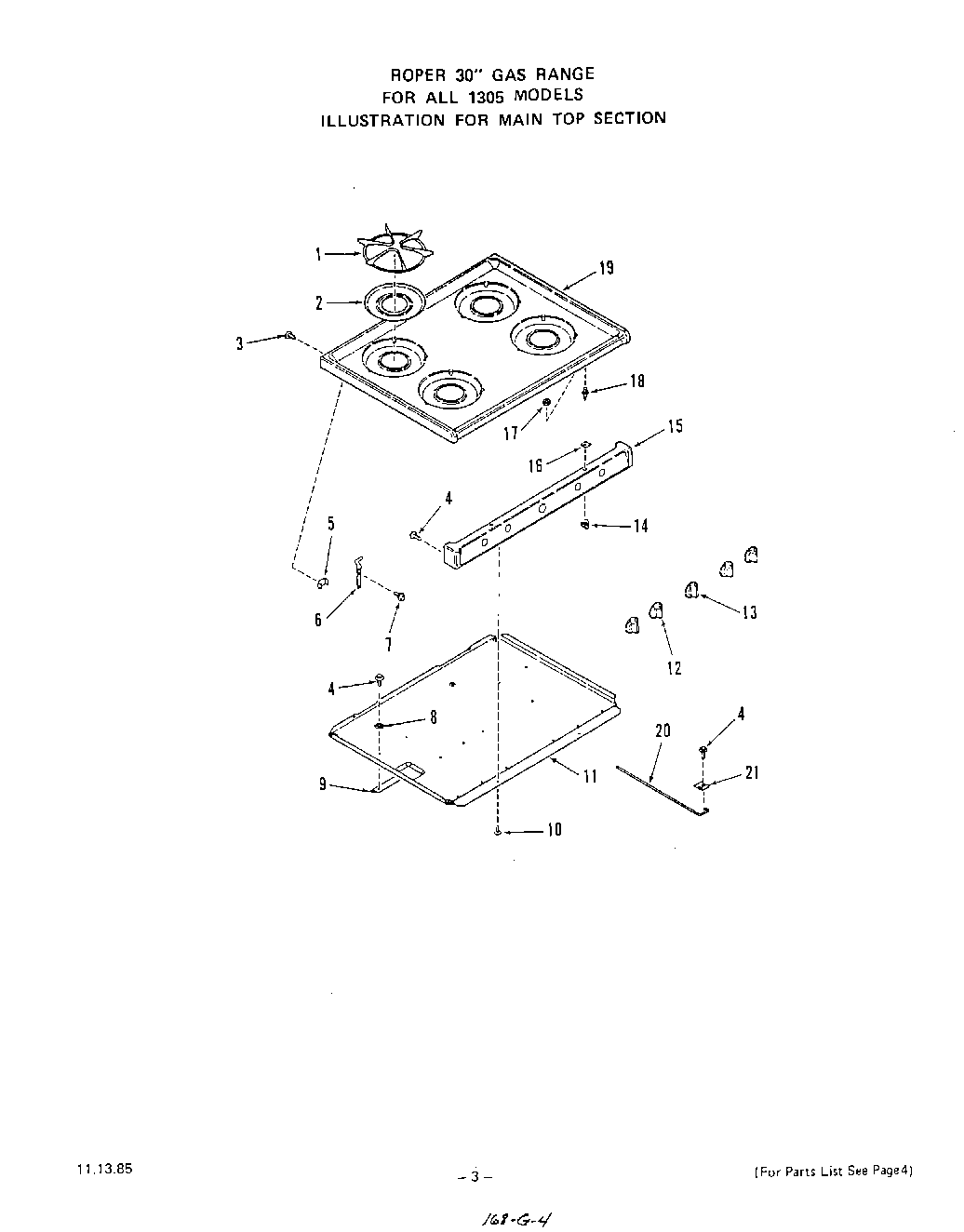

1305^1A 03 – OPTIONAL GRIDDLE

Products

Position	Product
1	Top Grate (4 Required)
2	Spill Bowl
3	Screw-10-32x1/2``
4	Screw 10-16x7/16``
5	bracket-main top hinge (lt. or rt.)
6	Left
6	Right
7	WPL 321162
8	Washer
9	Rear Stiffener-Burner Box Bottom
9	Front Stiffener-Burner Box Bottom
10	Screw 10-32x3/8``
11	14350A & 14550A Models
11	Burner Box Bottom (All 13052A & 3A Models)
12	Knob-Gas Valve (4 Req)
13	Knob-Thermostat
14	Catch-Main Top Strike (2 Required)
15	Manifold Panel (Golden Wheat)
15	Manifold Panel (Almond)
15	Panel-Manifold (White)
16	Washer
17	Keps Nut 8-32
18	Strike-Main Top (2 Required)
19	Almond
19	Golden Wheat
19	White
20	Support Rod-Main Top
21	Clamp
