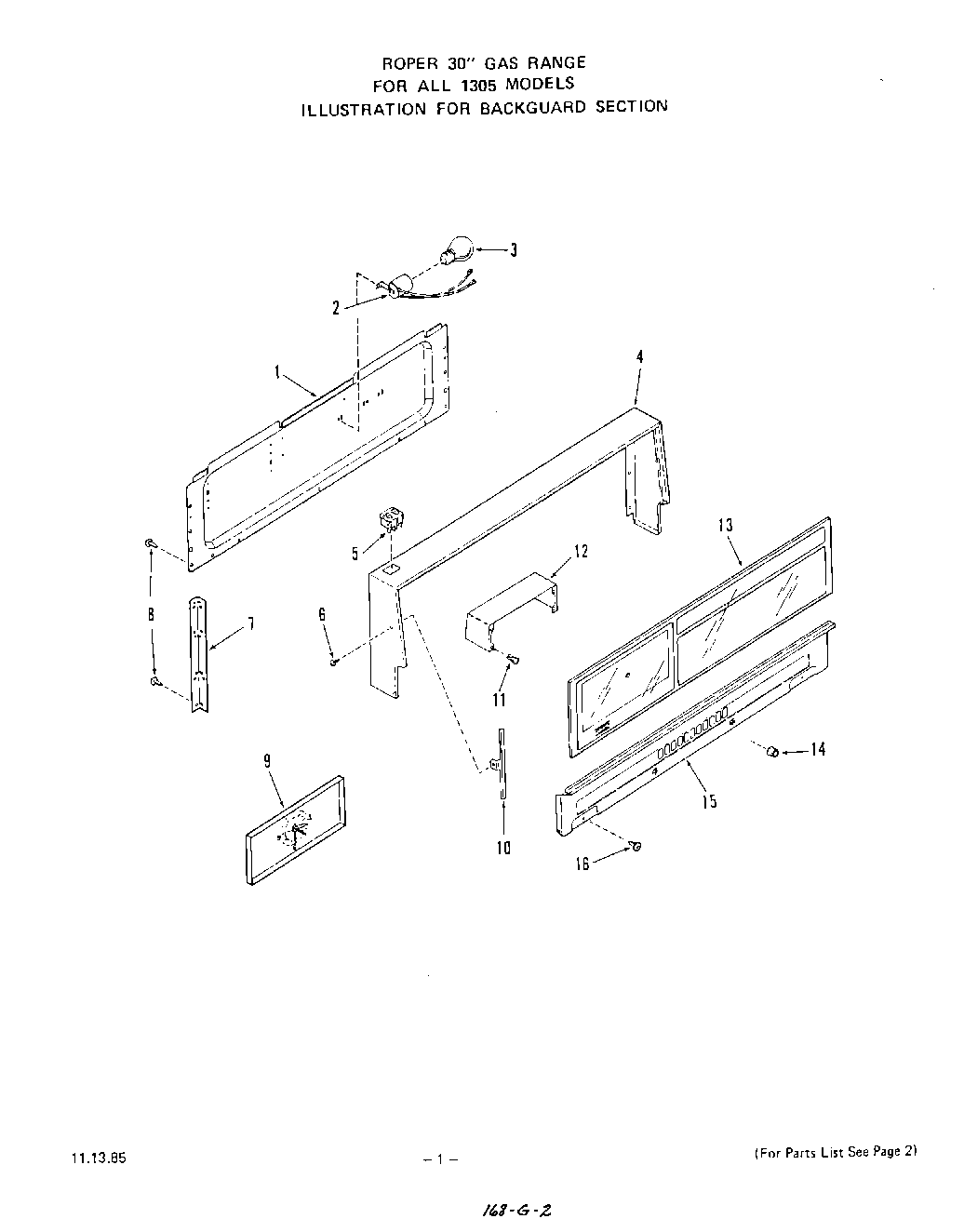

1305W3A 02 – MAIN TOP

Products

Position	Product
1	Wire Cover-Backguard
2	Lamp Holder w/Leads
3	Oven Lamp Bulb
4	Frame-Backguard
5	Switch-Oven & Top Light
6	Screw 6-20×3/8“
7	Support-Backguard (Lt. or Rt.)
8	WP112432 Whirlpool Nut Assembly
9	Clock w/4 Hr. Timer
10	End Trim- Top Lamp Glass (Lt. or Rt.)
11	Tubular Clip (4 Req.)
12	Mounting Bracket-Clock
13	Top Lamp Glass
14	Knob-Clock
15	Front-Backguard Bottom
16	Screw 10ABx1/2“
