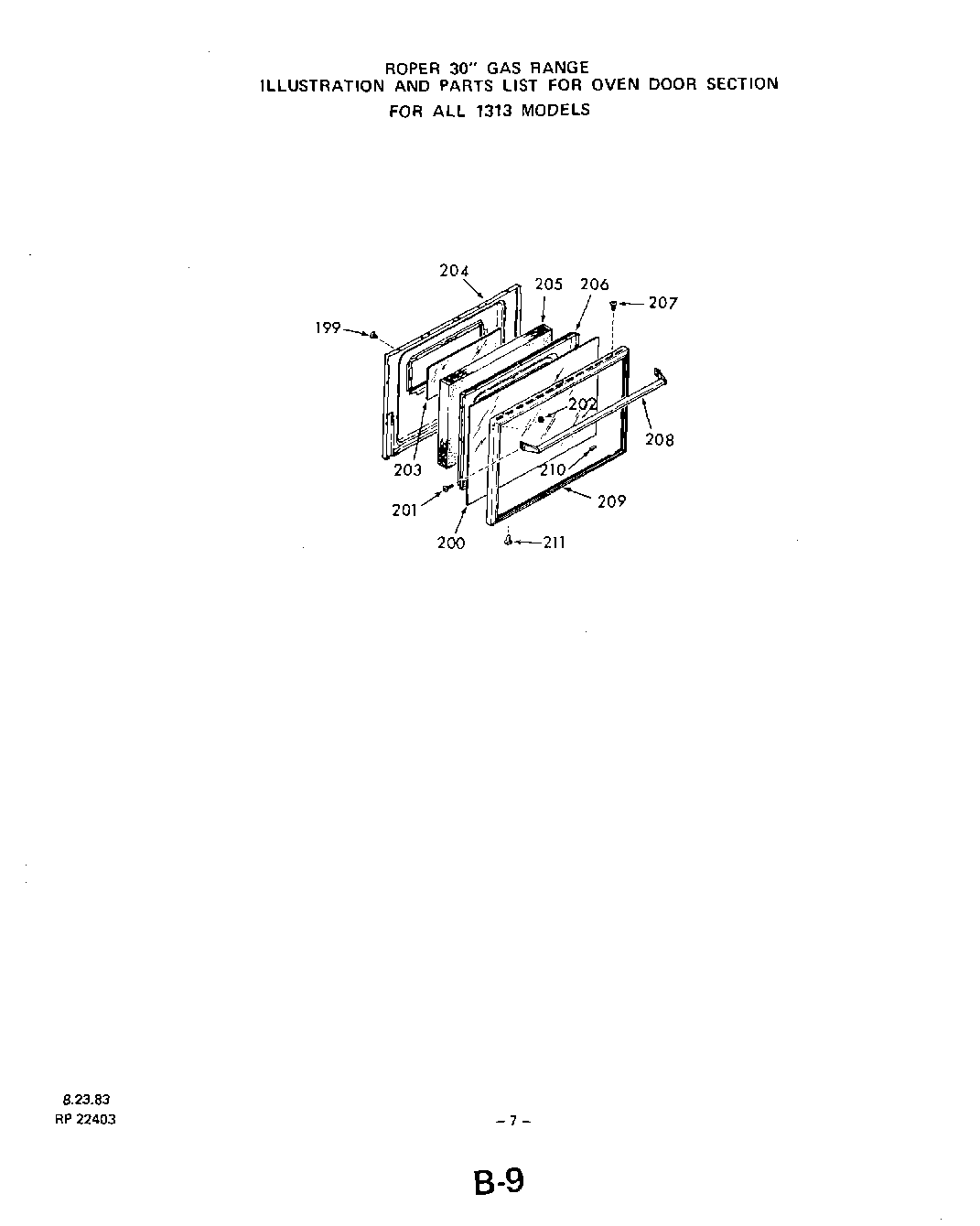

1313^0A 06 – OVEN DOOR

1313^0A 06 – OVEN DOOR

Written by

in

1313^0A 06 – OVEN DOOR

Products

PositionProduct
199WPY04100165 Whirlpool Surface Element
200Outer Glass-Oven Door
201Screw 8-32 x 1/2“
202Keps Nut 8-32
203Inner Glass-Oven Door
204Lining-Oven Door
205Insulation
206Retainer – Oven Door Insulation
207Screw 6Ax3/8“
208Handle-Oven Door
209Frame-Door Glass
210Cushion-Door Glass
211Screw 10-32 x 1/2“
211Switches-Gas Valve-All Models Except 14633A Models
211Switches-Gas Valve-All 14633A Models
