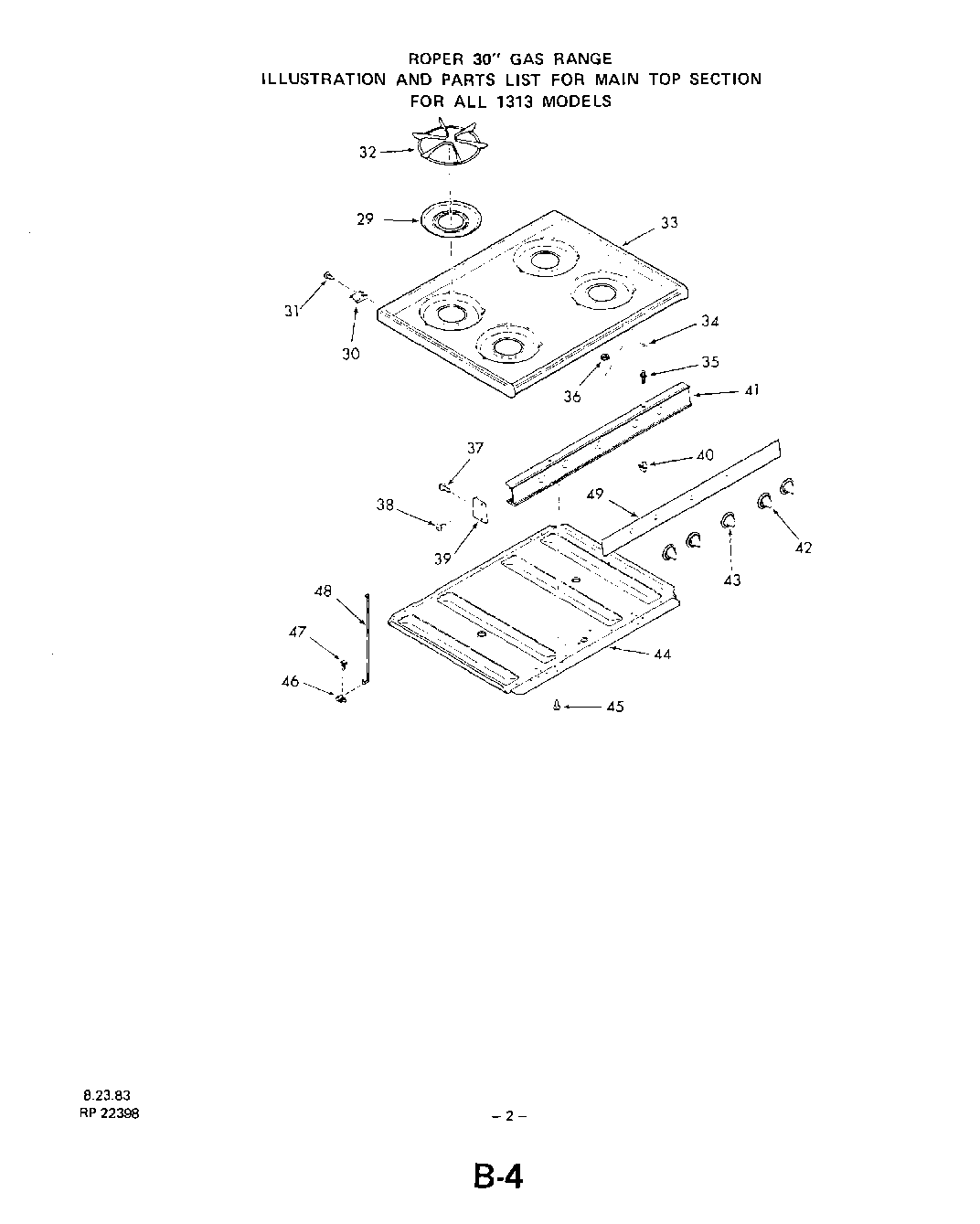

1313^1A 03 – MAIN TOP

Products

Position	Product
29	Spill Bowl
30	Retainer-Main Top (2 Required)
31	Screw 10-32×7/16“
32	Top Grate (4 Required)
33	Main Top (Coffee)
33	Main Top (Avocado)
33	Golden Wheat
33	Almond
33	White
34	Washer
35	Strike-Main Top (2 Required)
36	Keps Nut 8-32
37	Screw 10 – 32 x 17/32“
38	Screw 6-32×3/8“
39	End Cap-Manifold Panel (Left)
39	End Cap-Manifold Panel (Right)
40	Catch-Main Top Strike (2 Required)
41	Manifold Panel
42	Knob-Gas Valve (4 Required)
43	All 14630A Models
44	Burner Box Bottom
45	Screw 10-32×3/8“
46	Clip
47	WP112432 Whirlpool Nut Assembly
48	Support-Main Top
49	Trim-Manifold Panel
