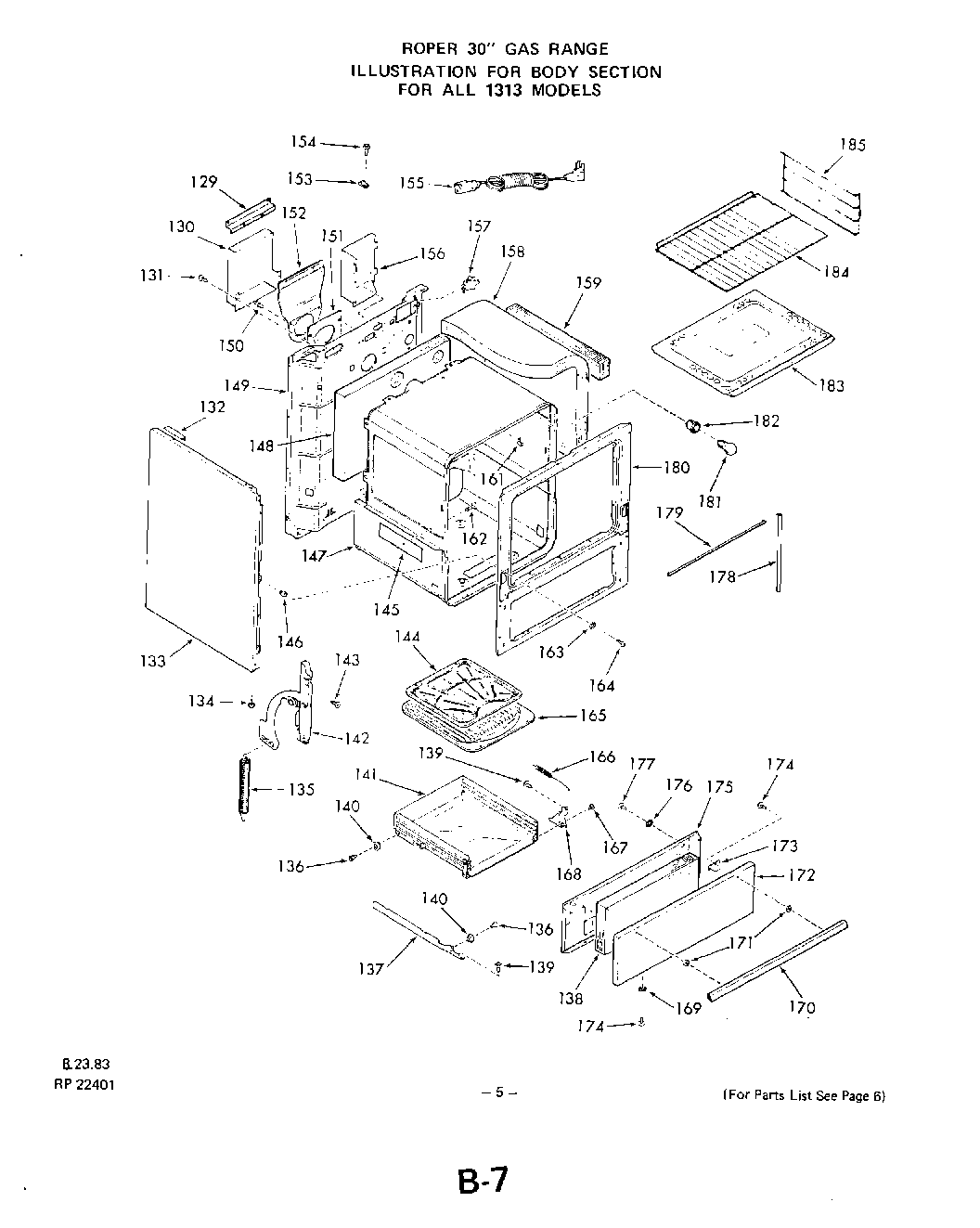

1313^1A 05 – BODY

Products

Position	Product
129	Support-Flue Deflector
130	Shield – Flue Deflector
132	Spacer-Main Top
133	Coffee
133	White-Right
133	Body Side-Lt. (Coffee)
133	White-Left
133	Avocado
133	Wheat-Right
133	Body Side-Lt. (Avocado)
133	Almond-Right
133	Wheat-Left
133	Almond-Left
134	Leg Leveler (4 Req)
135	Spring-Oven Door (Lt. or Rt.)
136	Shoulder Rivet
137	WP691371 Whirlpool Belt
137	Right
140	Roller
141	Broiler Drawer (Inc`s. 136 & 140)
142	Left
142	Right
143	Screw 10-32 x 5/8“
144	Broiler Pan Grid
145	Retainer-Insulation (Rt. or Lt.)
146	Grommet – Screw (8 Req.)
147	Oven Body
148	Insulation – Oven Back
149	Main Back
150	Screw 10 – 32 x 17/32“
151	Gasket-Flue Deflector
152	Flue Deflector
153	Clip
154	WP112432 Whirlpool Nut Assembly
155	Range Service Cord
156	Wire Shield
157	Disconnect
158	Insulation – Oven Top & Sides (1 Piece)
159	W10820036 Whirlpool Door Switch Kit
161	Thermostat Bulb Clip (2 Required)
162	Dart-Button Head (2 Required)
163	Washer
164	WP303896 Whirlpool High Limit Thermostat
165	Broiler Pan
166	Spring – Broiler Door (Rt or Lt)
167	Shoulder Rivet
168	Left
168	Right
169	WPL 21067
170	Handle-Broiler Door
171	spacer-handle
172	WPL 308975
172	Front Panel-Broiler
172	WPL 308977
172	WPL 308976
172	knob, control
173	Spacer-Broiler Doo
174	WPL 316365
175	WPL 296332
176	Lockwasher
177	Screw 10-32×3/8“
178	WPL 314573
179	WPL 314574
180	WPL 316994
181	Oven Lamp Bulb
182	Holder-Oven Light Bulb
183	WPL 296069
184	WPL 305408
185	WPL 305409
