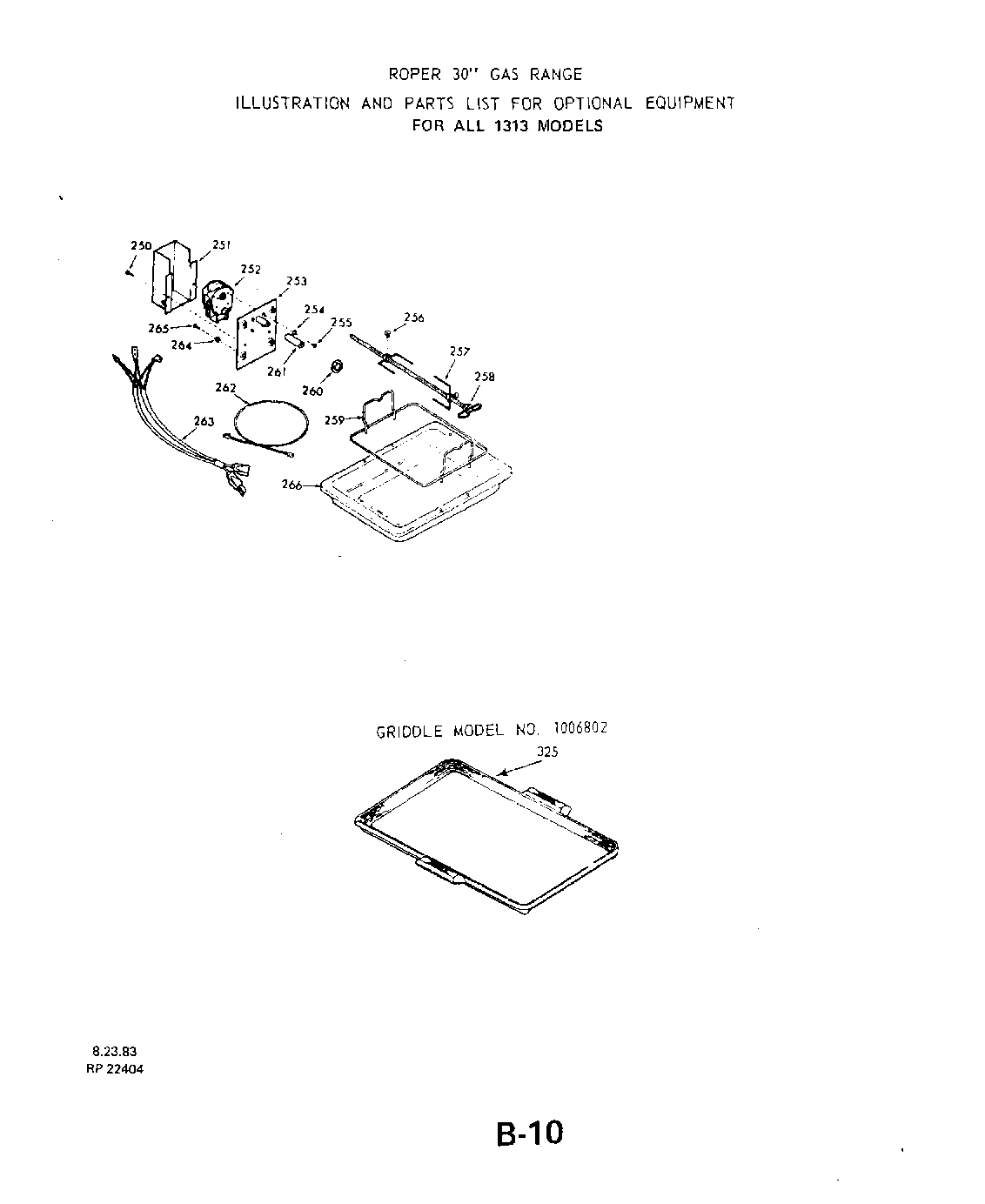

1313^1A 07 – ROTISSERIE , GRIDDLE

1313^1A 07 – ROTISSERIE , GRIDDLE

Written by

in

1313^1A 07 – ROTISSERIE , GRIDDLE

Products

PositionProduct
xSwitch (For Key No. 352)
xParts Not Shown On Illustration
xInstallation Instructions
250Screw 10 – 32 x 1/4“
251Cover – Rotisserie Motor
252Rotisserie Motor
253Mounting Bracket-Rotisserie Motor
254Lockwasher 3/16“
255Screw 8-32 x 3/8“
256Thumbscrew
257Skewer
258Rotisserie Spit
259Spit Support
260Plug Button
261Guide Extension – Rotisserie Motor
262White
262White
262Black With 1/4“ Faston & Eyelet Terminals
262Black
263Rotisserie Cord
264Lockwasher
265Screw 10-32 x 1/2“
266Rotisserie Pan
325Set-On-Griddle (Optional)
