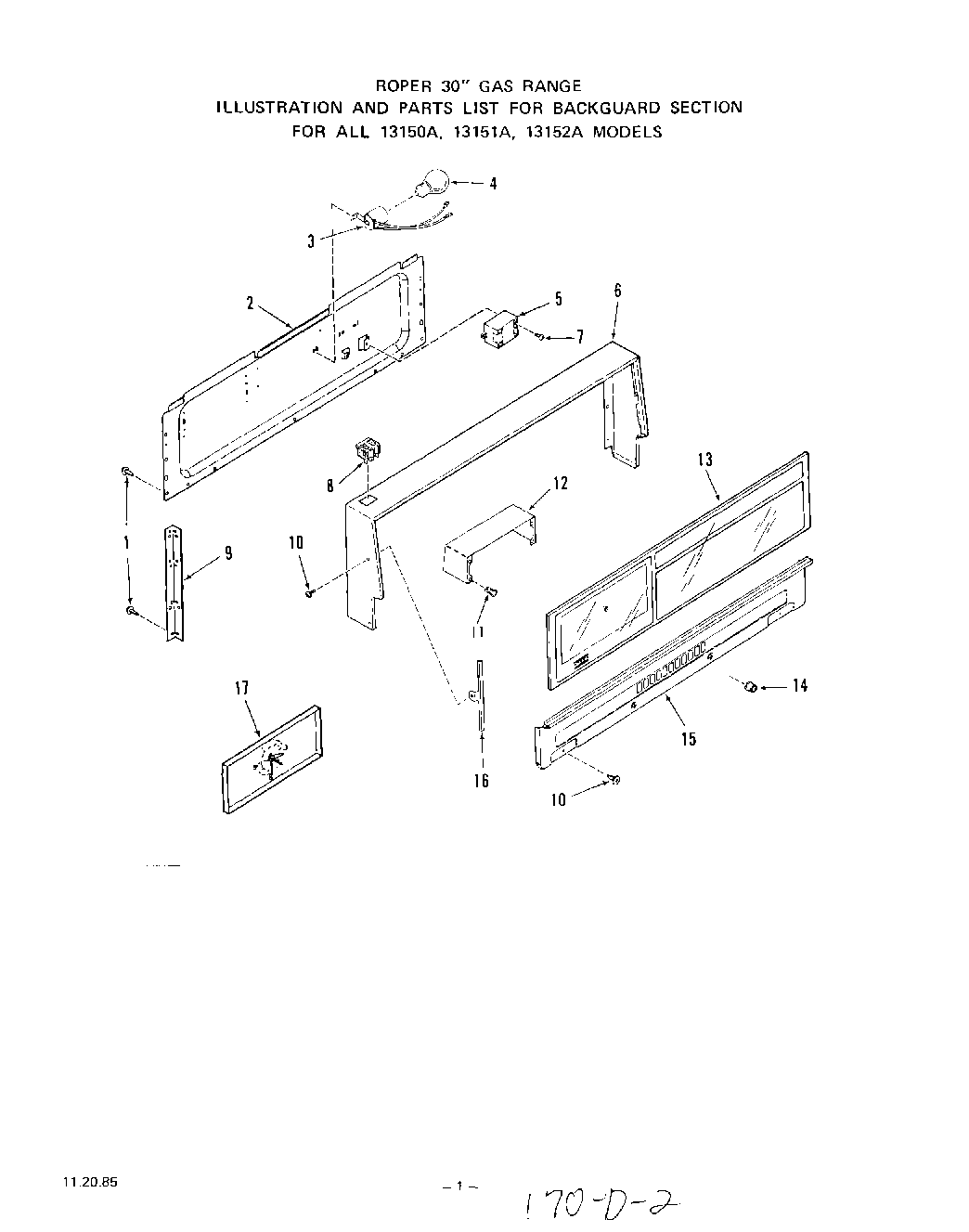

1315^2A 02 – BACKGUARD

Products

Position	Product
1	Screw 10-16×7/16“
2	Channel Arm (2)
3	Channel Arm (2)
3	Lamp Holder w/Leads
4	Oven Lamp Bulb
5	Module – Spark Igniter
6	Frame-Backguard
7	Screw 6-20×3/8“
8	Switch-Oven & Top Light
9	Support-Backguard (Lt. or Rt.)
10	Screw 6-20×3/8“
11	Tubular Clip (4 Req.)
12	Mounting Bracket-Clock
13	Top Lamp Glass
14	Knob-Clock
15	Front-Backguard Bottom
16	End Trim- Top Lamp Glass (Lt. or Rt.)
17	Clock w/4 Hr. Timer
