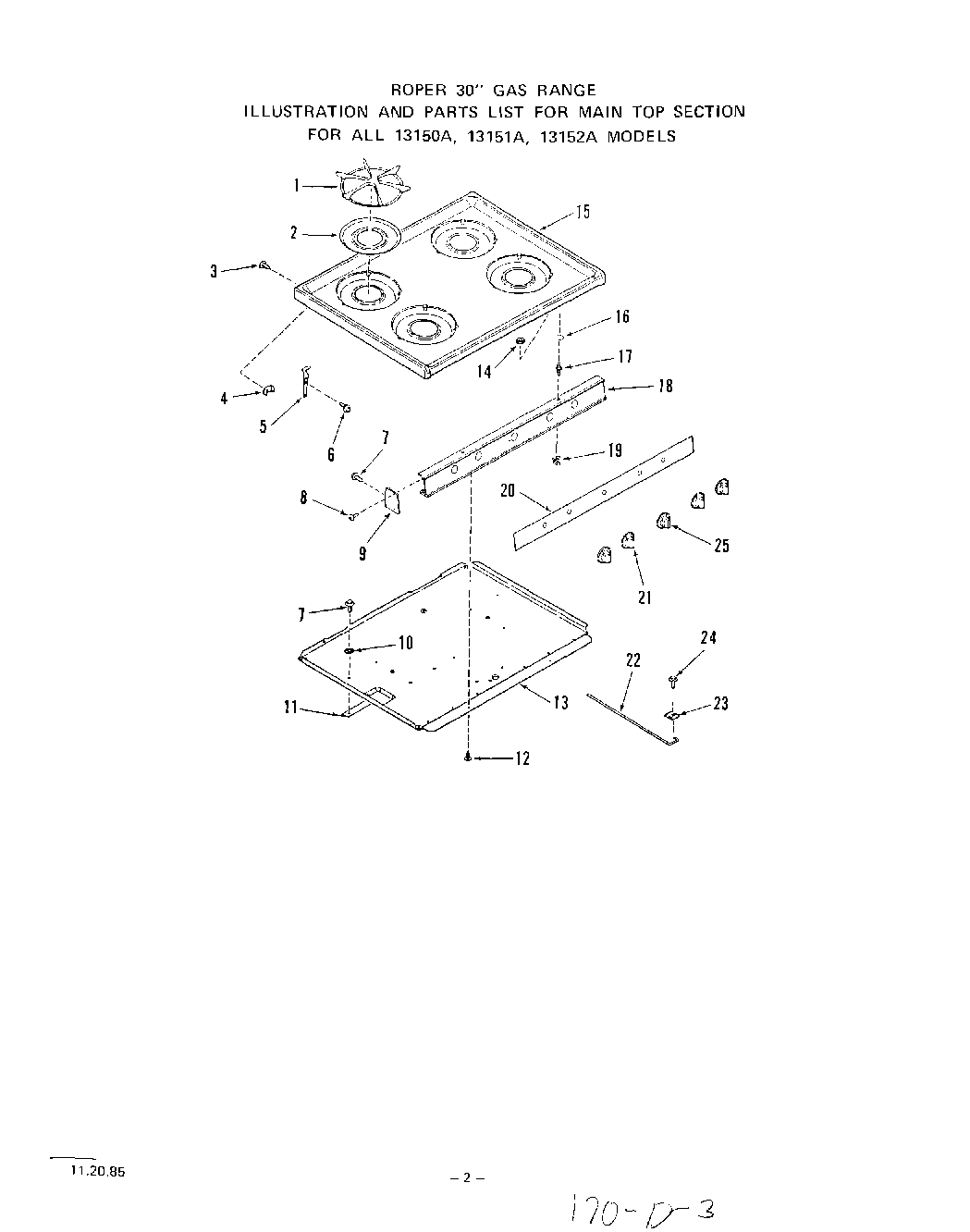

1315^2A 03 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Required)
2	Spill Bowl
3	Screw-10-32×1/2“
4	bracket-main top hinge (lt. or rt.)
5	Left
5	Right
6	WPL 321162
7	Screw 10-16×7/16“
8	Screw 6-20×3/8“
9	End Cap-Manifold Panel (Right)
9	End Cap-Manifold Panel (Left)
10	Washer
11	Front Stiffener-Burner Box Bottom
11	Rear Stiffener-Burner Box Bottom
12	Screw 10-32×3/8“
13	Bottom-Burner Box (14450A Models)
13	Burner Box Bottom (13152A Models)
14	Keps Nut 8-32
15	Coffee
15	Avocado
15	White
15	Golden Wheat
15	Almond
16	Washer
17	Strike-Main Top (2 Required)
18	Manifold Panel
19	Catch-Main Top Strike (2 Required)
20	Trim-Manifold Panel
21	Knob-Gas Valve (4 Req)
22	Support Rod-Main Top
23	Clamp
24	WPL 316365
25	Knob-Thermostat
