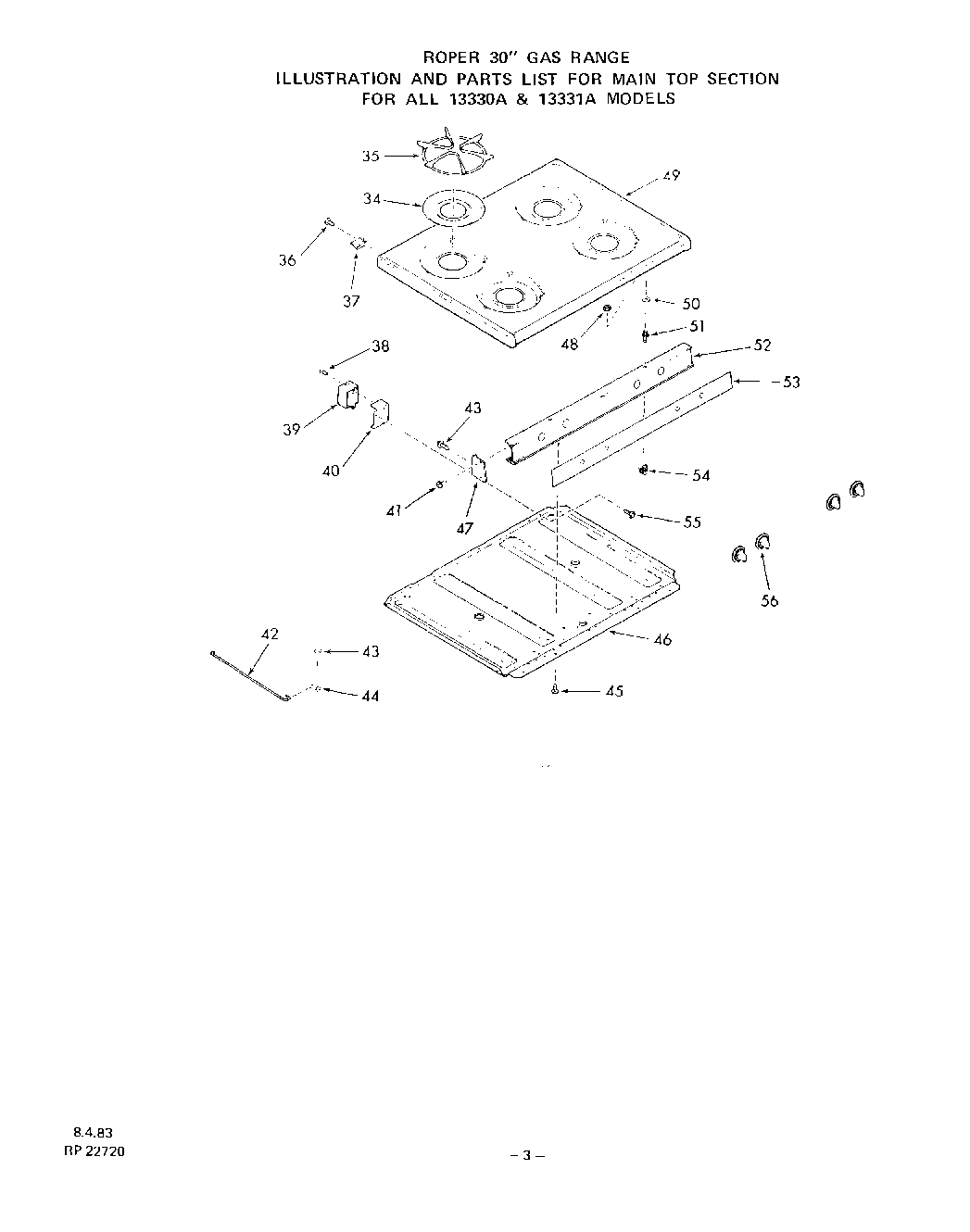

| 34 | Spill Bowl |
| 35 | Top Grate (4 Required) |
| 36 | Screw 10-32x7/16`` |
| 37 | Retainer-Main Top (2 Required) |
| 38 | Screw 6-32 x 1/2`` |
| 39 | Spark Module |
| 40 | Bracket - Spark Igniter Module |
| 41 | Screw 6-32x3/8`` |
| 42 | Support-Main Top |
| 44 | Clip |
| 45 | Screw 10-32x3/8`` |
| 46 | Burner Box Bottom |
| 47 | End Cap-Manifold Panel (Left) |
| 47 | End Cap-Manifold Panel |
| 47 | End Cap-Manifold Panel (Right) |
| 48 | Keps Nut 8-32 |
| 49 | Main Top (Coffee) |
| 49 | Main Top (Avocado) |
| 49 | Main Top |
| 49 | Golden Wheat |
| 49 | Almond |
| 49 | White |
| 50 | Washer |
| 51 | Strike-Main Top (2 Required) |
| 52 | Manifold Panel |
| 53 | Trim-Manifold Panel |
| 54 | Catch-Main Top Strike (2 Required) |
| 55 | WP112432 Whirlpool Nut Assembly |
| 56 | Knob-Gas Valve (4 Required) |
