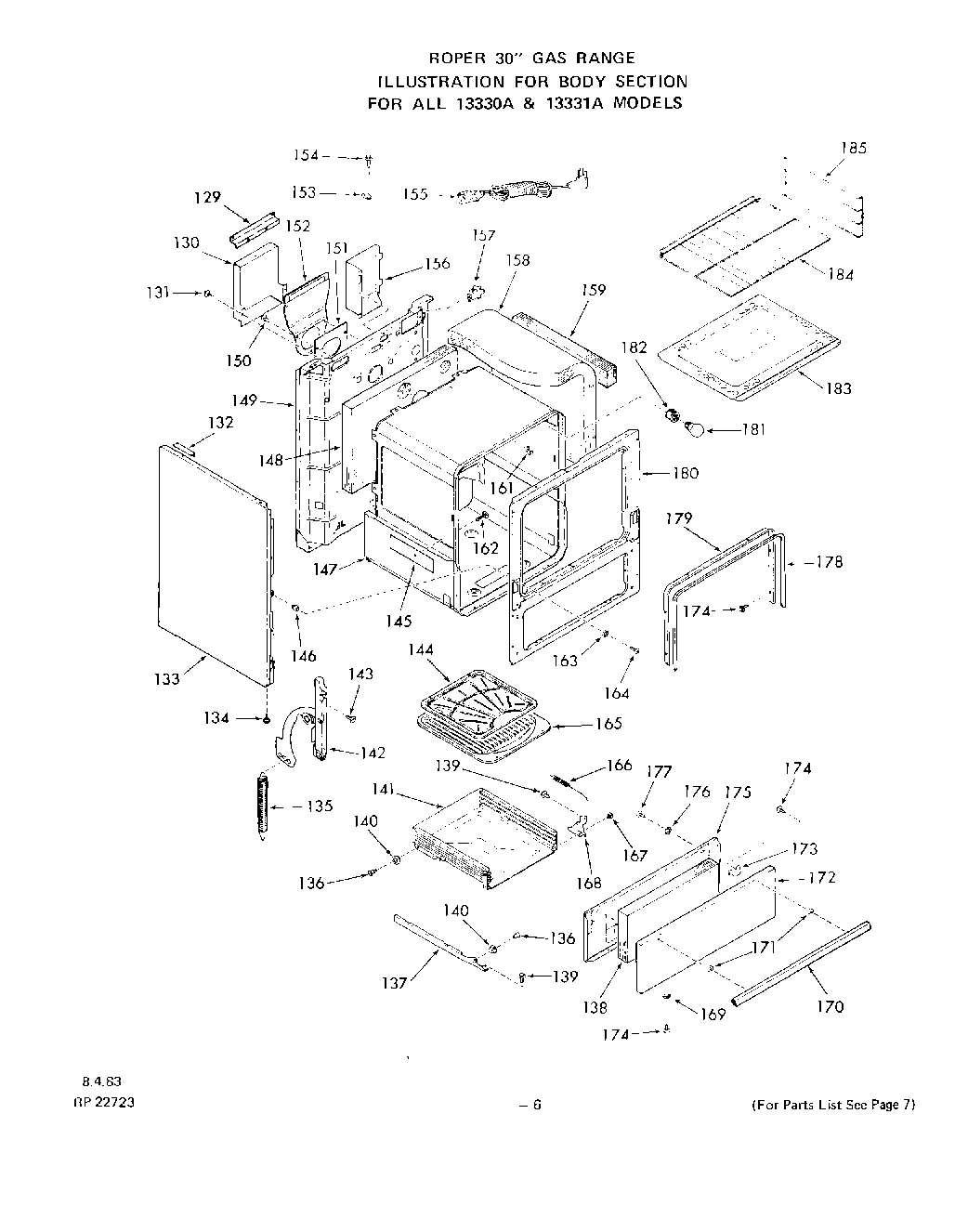

1333^1A 05 – OVEN DOOR

1333^1A 05 – OVEN DOOR

Written by

in

1333^1A 05 – OVEN DOOR

Products

PositionProduct
129Support-Flue Deflector
130Shield – Flue Deflector
132Spacer-Main Top
133Body Side-Lt. (Coffee)
133Almond-Left
133Almond-Right
133White-Right
133White-Left
133Wheat-Right
133Wheat-Left
133Coffee
133Avocado
133Body Side
133Body Side-Lt. (Avocado)
134Leg Leveler (4 Required)
135Spring-Oven Door (Lt. or Rt.)
136Shoulder Rivet
137Broiler Drawer Guide (Inc`s. 136 & 140)
137WP691371 Whirlpool Belt
137Right
140Roller
141Broiler Drawer (Inc`s. 136 & 140)
142Right
142Hinge-Oven Door
142Left
143Screw 10-32 x 5/8“
144Broiler Pan Grid
145Retainer-Insulation (Rt. or Lt.)
146Grommet – Screw (8 Req.)
147Oven Body
148Insulation – Oven Back
149Main Back
150Screw 10 – 32 x 17/32“
151Gasket-Flue Deflector
152Flue Deflector
153Clip
154WP112432 Whirlpool Nut Assembly
155Range Service Cord
156Wire Shield
157Disconnect
158Insulation – Oven Top & Sides (1 Piece)
159W10820036 Whirlpool Door Switch Kit
161Thermostat Bulb Clip (2 Required)
162Dart-Button Head (2 Required)
163Washer
164WP303896 Whirlpool High Limit Thermostat
165Broiler Pan
166Spring – Broiler Door (Rt or Lt)
167Shoulder Rivet
168Right
168Left
168Hinge-Broiler Door
169WPL 21067
170Handle-Broiler Door
171spacer-handle
172Front Panel-Broiler
172WPL 308976
172knob, control
172WPL 308977
172WPL 308975
172WPL ARI8032A31
173Spacer-Broiler Doo
174WPL 316365
175WPL 296332
176Lockwasher
177Screw 10-32×3/8“
178WPL 296102
179WPL 296103
180WPL 323357
181Oven Lamp Bulb
182Holder-Oven Light Bulb
183WPL 296070
184WPL 305408
185WPL 305409
