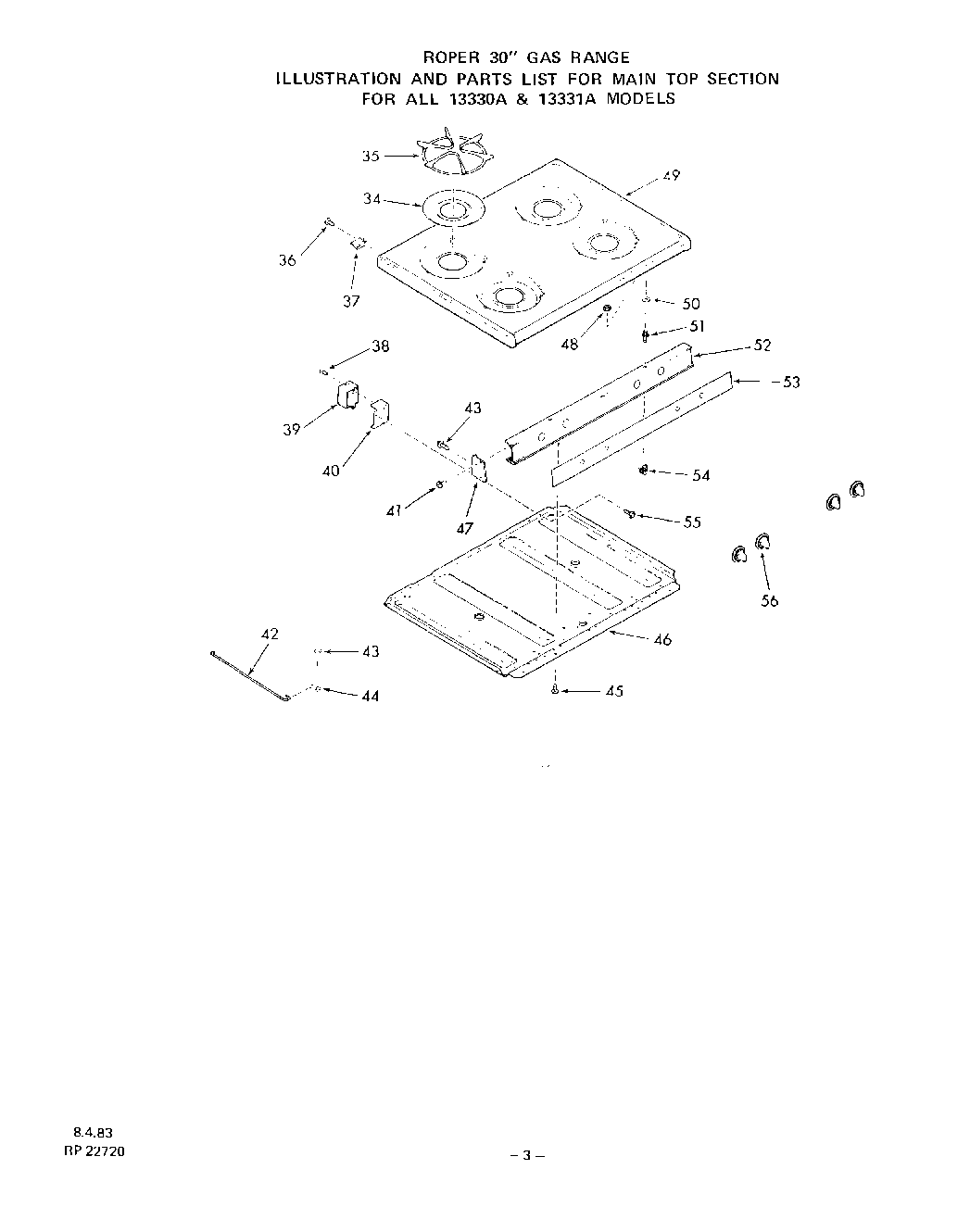

1333W0A 03 – BURNER

Products

Position	Product
34	Spill Bowl
35	Top Grate (4 Required)
36	Screw 10-32×7/16“
37	Retainer-Main Top (2 Required)
38	Screw 6-32 x 1/2“
39	Spark Module
40	Bracket – Spark Igniter Module
41	Screw 6-32×3/8“
42	Support-Main Top
44	Clip
45	Screw 10-32×3/8“
46	Burner Box Bottom
47	End Cap-Manifold Panel (Left)
47	End Cap-Manifold Panel
47	End Cap-Manifold Panel (Right)
48	Keps Nut 8-32
49	Main Top (Coffee)
49	Main Top (Avocado)
49	Main Top
49	Golden Wheat
49	Almond
49	White
50	Washer
51	Strike-Main Top (2 Required)
52	Manifold Panel
53	Trim-Manifold Panel
54	Catch-Main Top Strike (2 Required)
55	WP112432 Whirlpool Nut Assembly
56	Knob-Gas Valve (4 Required)
