1333W0A 04 – BODY

Products

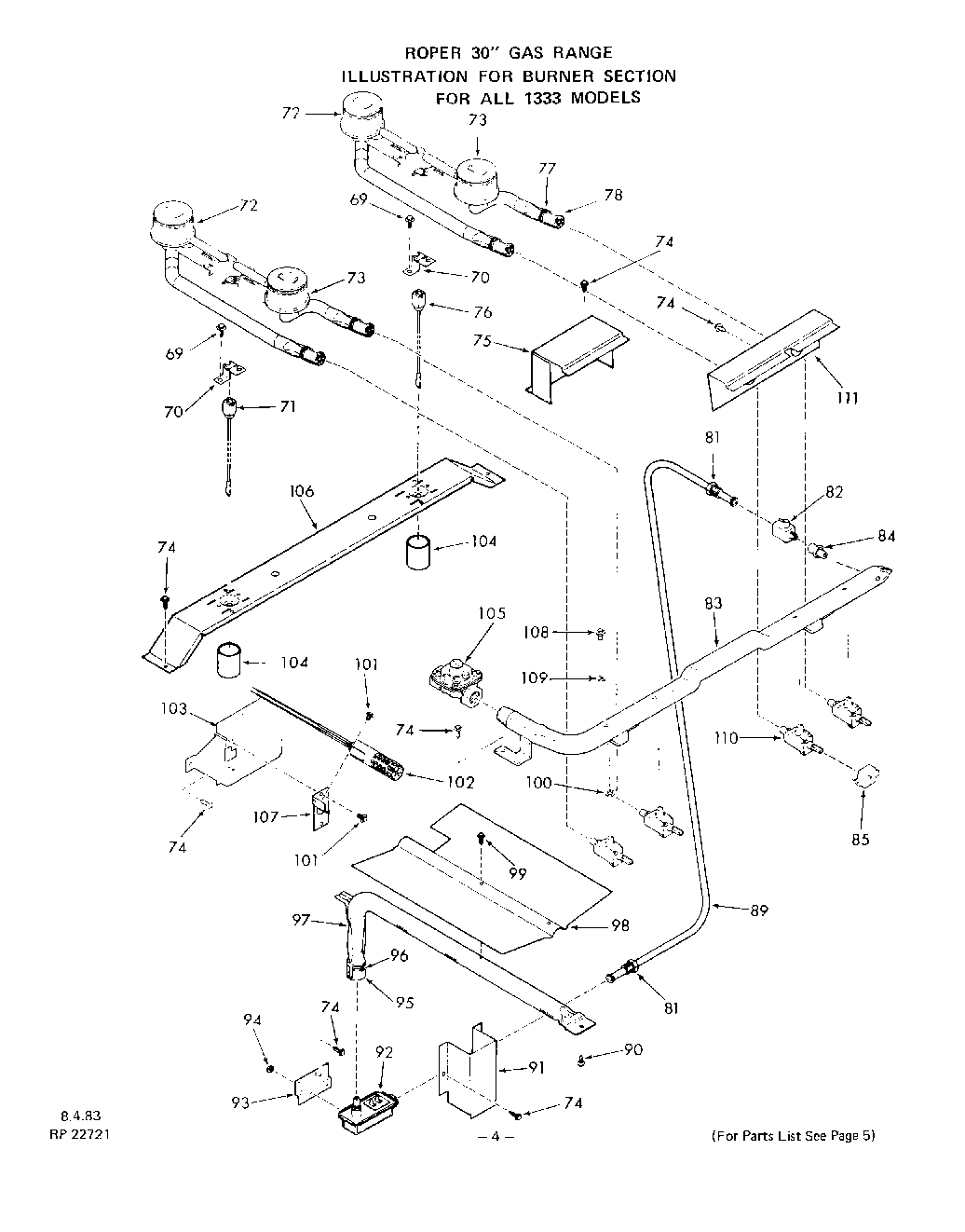

PositionProduct
70panel, side l.h. (almond panel, side r.h.)
71Panel, Side L.H. (Platinum Panel, Side R.H.)
72Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
73Front Top Burner-Lt. or Rt. (Inc`s 64 & 65)
74WP112432 Whirlpool Nut Assembly
75Wire Cover-Thermostat
76Right
77Adjustment Screw-Air Shutter
78Air Shutter
81Inverted Nut 3/8“
82Shut Off Valve
83Manifold Pipe
84Fitting
85Switch-Gas Valve (4 Req)
89Tubing 3/8“ (Shut-Off to Control Valve)
91Cover – Ignitor Wires
92Control Valve
93Bracket-Control Valve
94Nut 6-32
95Adjustment Screw -Air Shutter
96Air Shutter
97Oven Burner (Inc. Keys 27, 28 & 30)
98Baffle – Oven Burner
99WPL 316365
100Silicone Rubber Gasket
101Screw 10 – 32 x 1/4“
102Igniter – Bake or Broil
103Bracket – Ignitor Mounting
104Sleeve-Igniter Wire (Lt. or Rt.)
105Pressure Regulator
106Support-Top Burner
107Bracket-Igniter
108Mounting Screw (Inc`s 86)
109Gasket (For 81)
110Gas Valve (5 Req)
111Wire Cover-Gas Valve-All 18730A Models (Left)
111Wire Cover-Gas Valve-All 18730A Models (Right)
111Wire Cover-Gas Valve_All 13330A Models
