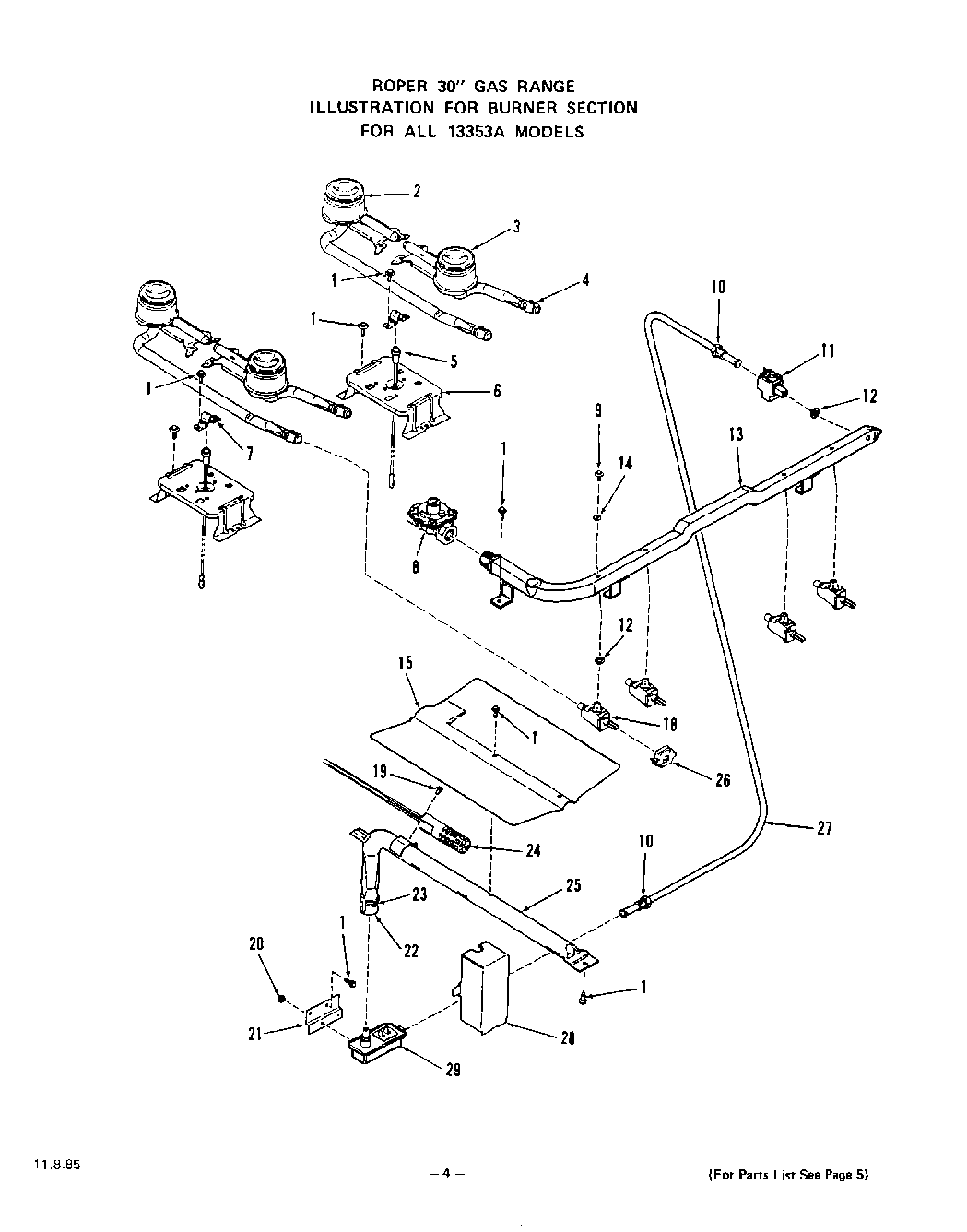

| 1 | Screw 10-16x7/16`` |
| 2 | Rear Top Burner-Rt. or Lt. (Inc`s. Key 4) |
| 3 | Front Top Burner-Rt. or Lt. (Inc`s.Key 4) |
| 4 | Air Shutter |
| 5 | Electrode-Spark Igniter |
| 5 | Panel, Side L.H. (Platinum Panel, Side R.H.) |
| 5 | Electrode-Spark Igniter (Left) |
| 6 | Support-Top Burner (Lt. or Rt.) |
| 7 | panel, side l.h. (almond panel, side r.h.) |
| 9 | Mounting Screw (Inc`s 86) |
| 10 | Inverted Nut 3/8`` |
| 11 | Shut Off Valve |
| 12 | Silicone Rubber Gasket |
| 13 | Manifold Pipe |
| 14 | Gasket (For 81) |
| 15 | Baffle - Oven Burner |
| 18 | Gas Valve (5 Req) |
| 19 | Screw 6Ax3/8`` |
| 20 | Nut 6-32 |
| 21 | Bracket-Control Valve |
| 22 | Air Shutter |
| 23 | Adjustment Screw -Air Shutter |
| 24 | Igniter - Bake or Broil |
| 25 | Oven Burner Asm. (Inc`s Keys 21, 25, 26) |
| 26 | Switch-Gas Valve (4 Req) |
| 27 | Tubing 3/8`` (Shut-Off to Control Valve) |
| 28 | Cover-Control Valve |
| 29 | Control Valve |
