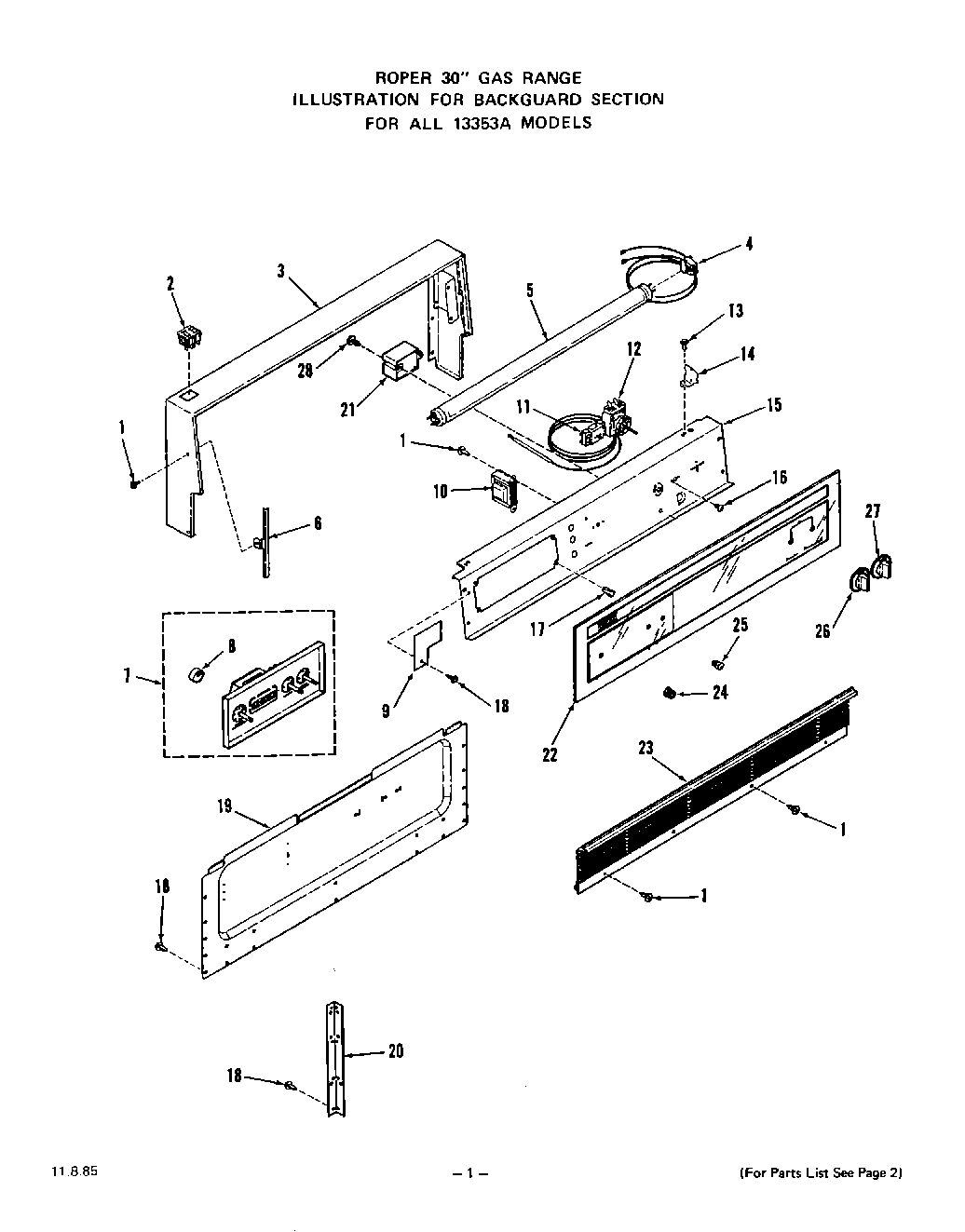

1335W3A 02 – MAIN TOP

Products

Position	Product
1	Screw 6-20×3/8“
2	Switch-Top & Oven Light
3	Frame-Backguard
4	Holder-Flourescent Lamp
4	Right
4	Left
5	Fluorescent Lamp (20 W – 24“)
6	End Trim- Top Lamp Glass (Lt. or Rt.)
7	Clock w/1 Hr. Timer (Inc`s. 8)
8	Clock Motor
9	Cover-Switch Shield
10	Ballast
11	Selector Switch
12	Thermostat
13	Screw 10-32×3/8“
14	Bracket-Fluorescent Lamp (Rt. or Lt.)
15	Mounting Panel-Control
16	WPL 78565
17	Tubular Clip (4 Req.)
18	Screw 10-16×7/16“
19	Wire Cover-Backguard
20	Support-Backguard (Lt. or Rt.)
21	Spark Module
22	Lamp Glass-Backguard
23	Front-Backguard Bottom
24	Knob-Clock
25	Knob-Clock (Start & Stop Time)
26	Knob-Selector Switch
27	Knob-Thermostat
28	Screw 6-32 x 1/2“
