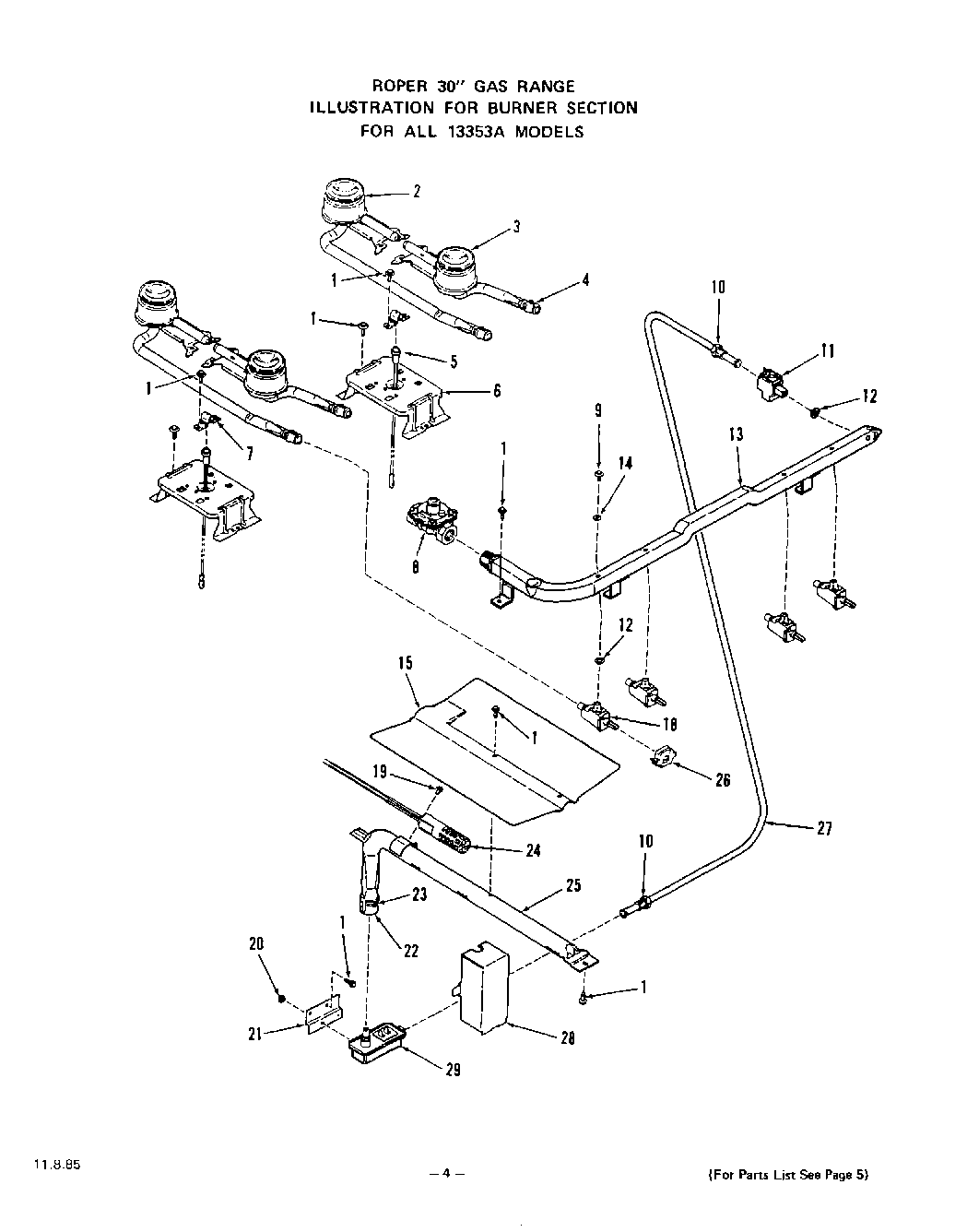

1335W3A 04 – BODY

Products

Position	Product
1	Screw 10-16×7/16“
2	Rear Top Burner-Rt. or Lt. (Inc`s. Key 4)
3	Front Top Burner-Rt. or Lt. (Inc`s.Key 4)
4	Air Shutter
5	Panel, Side L.H. (Platinum Panel, Side R.H.)
5	Electrode-Spark Igniter
5	Electrode-Spark Igniter (Left)
6	Support-Top Burner (Lt. or Rt.)
7	panel, side l.h. (almond panel, side r.h.)
9	Mounting Screw (Inc`s 86)
10	Inverted Nut 3/8“
11	Shut Off Valve
12	Silicone Rubber Gasket
13	Manifold Pipe
14	Gasket (For 81)
15	Baffle – Oven Burner
18	Gas Valve (5 Req)
19	Screw 6Ax3/8“
20	Nut 6-32
21	Bracket-Control Valve
22	Air Shutter
23	Adjustment Screw -Air Shutter
24	Igniter – Bake or Broil
25	Oven Burner Asm. (Inc`s Keys 21, 25, 26)
26	Switch-Gas Valve (4 Req)
27	Tubing 3/8“ (Shut-Off to Control Valve)
28	Cover-Control Valve
29	Control Valve
