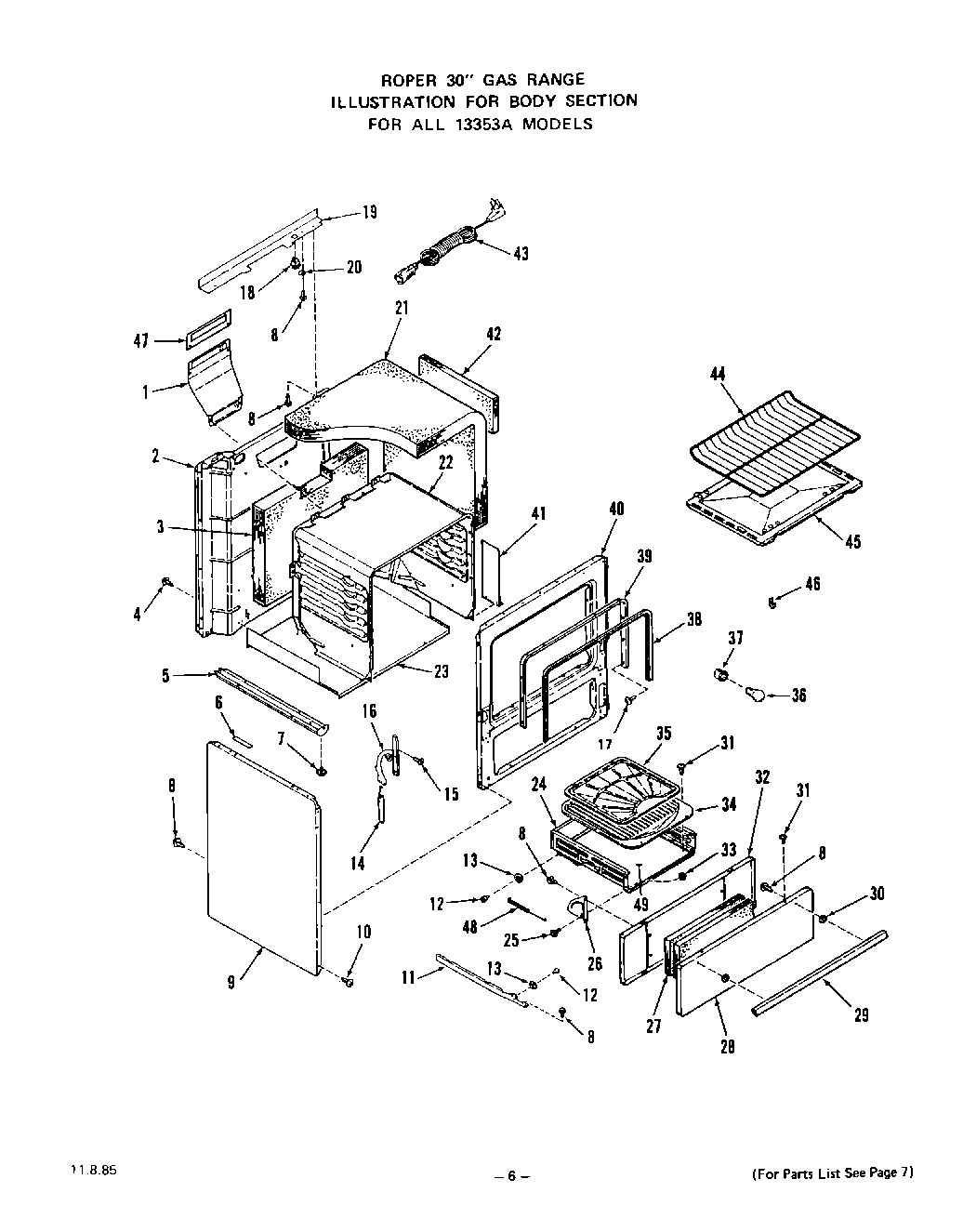

1335W3A 05 – BODY

Products

Position	Product
1	Flue Deflector
2	Back-Main
3	Insulation-Oven Back
5	Base w/Levelers (Lt. or Rt.)
6	Spacer-Main Top (2 Req)
7	Leg Leveler (4 Req)
8	Screw 10-16×7/16“
9	Almond
9	Golden Wheat
9	Coffee
9	White
9	Avocado
10	Screw 10ABx1/2“
11	Right
11	Broiler Drawer Guide (Inc`s. 12, 13)
11	WP691371 Whirlpool Belt
12	Shoulder Rivet
13	Roller
14	spring-oven door (lt. or rt.)
15	Screw 10-32 x 5/8“
16	Hinge-Oven Door (Right)
16	Hinge-Oven Door (Left)
17	Screw 10ABx1/2“
18	Disconnect
19	Wire Cover Bottom-Backguard
20	Clip
21	Insulation-Oven Top & Sides (1 Piece)
22	Oven Body
23	Bottom-Main
24	Drawer-Broiler (Inc`s. 12,13) (14451A Models)
25	Bolt-Shoulder
26	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
26	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
28	Avocado
28	Golden Wheat
28	Almond
28	White
28	Coffee
29	Handle-Broiler Door
30	spacer-handle
31	Screw-10-32×1/2“
32	Lining-Broiler Door (14451A Models)
33	Keps Nut 10-24
34	Pan-Broiler (14451A M
35	WPL 331588
36	Oven Lamp Bulb
37	Holder-Oven Lamp Bulb
38	WPL 326047
39	main chassis (almond)
40	Front Frame
41	WPL 328984
42	W10820036 Whirlpool Door Switch Kit
43	Range Service Cord
44	WPL 326068
45	WPL 327084
46	Thermostat Bulb Clip (2 Required)
47	WPL 327925
48	WPL 327481
49	WPL 331554
