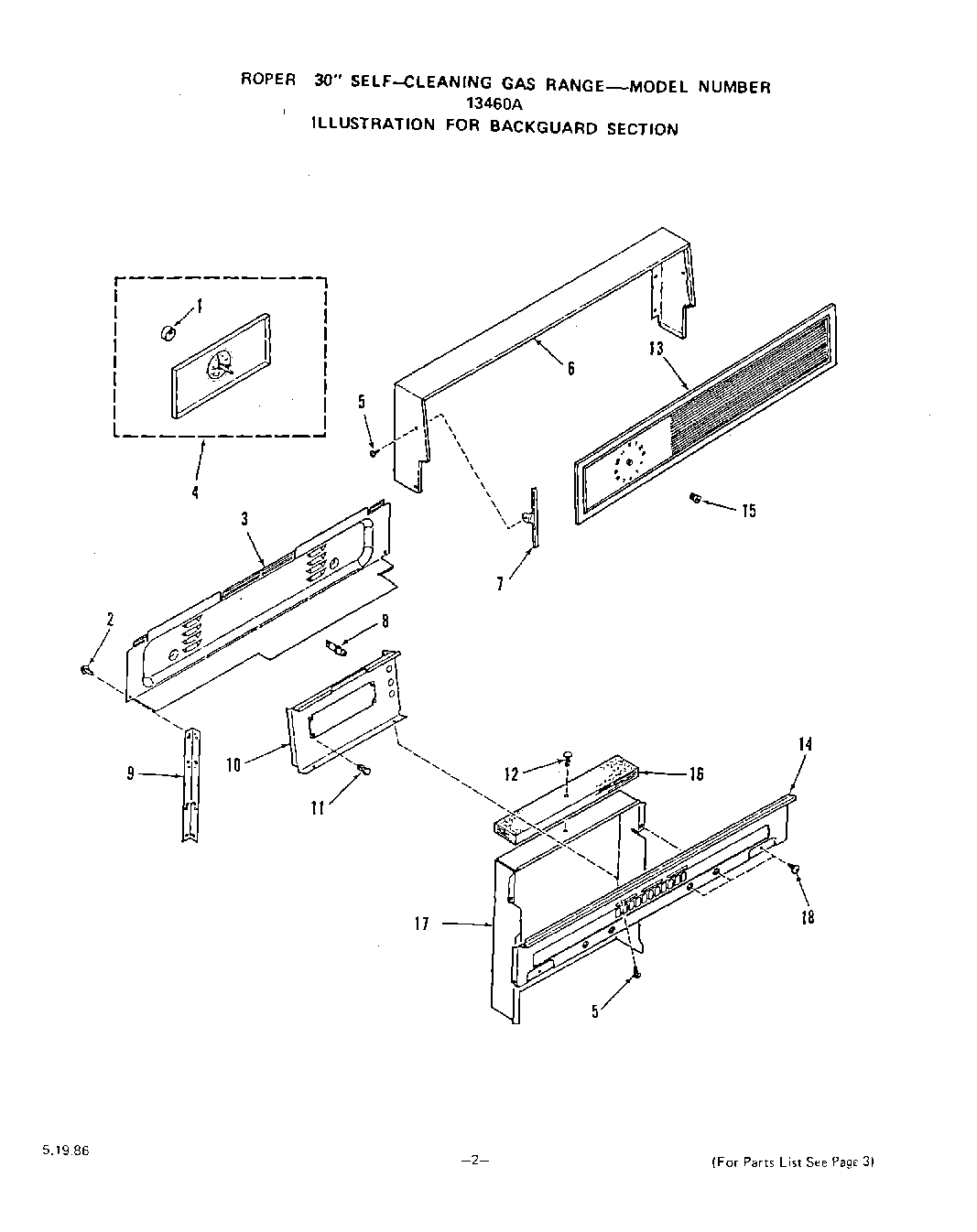

1346^0A 03 – MAIN TOP

Products

Position	Product
1	Clock Motor
2	Screw 10-16×7/16“
3	Wire Cover-Backguard
4	Clock w/4 Hr. Timer
5	Screw 6-20×3/8“
6	Frame-Backguard
7	End Trim-Top Lamp Glass (Lt. or Rt.)
8	Indicator Light
9	Support-Backguard (Lt. or Rt.)
10	Mounting Bracket-Clock
11	Tubular Clip (4 Req.)
12	Dart-Button Head (2 Required)
13	Glass-Backguard
14	Front-Backguard Bottom
15	Knob-Clock
16	Insulation
17	Shield-Flue Deflector
18	Screw 10ABx1/2“
