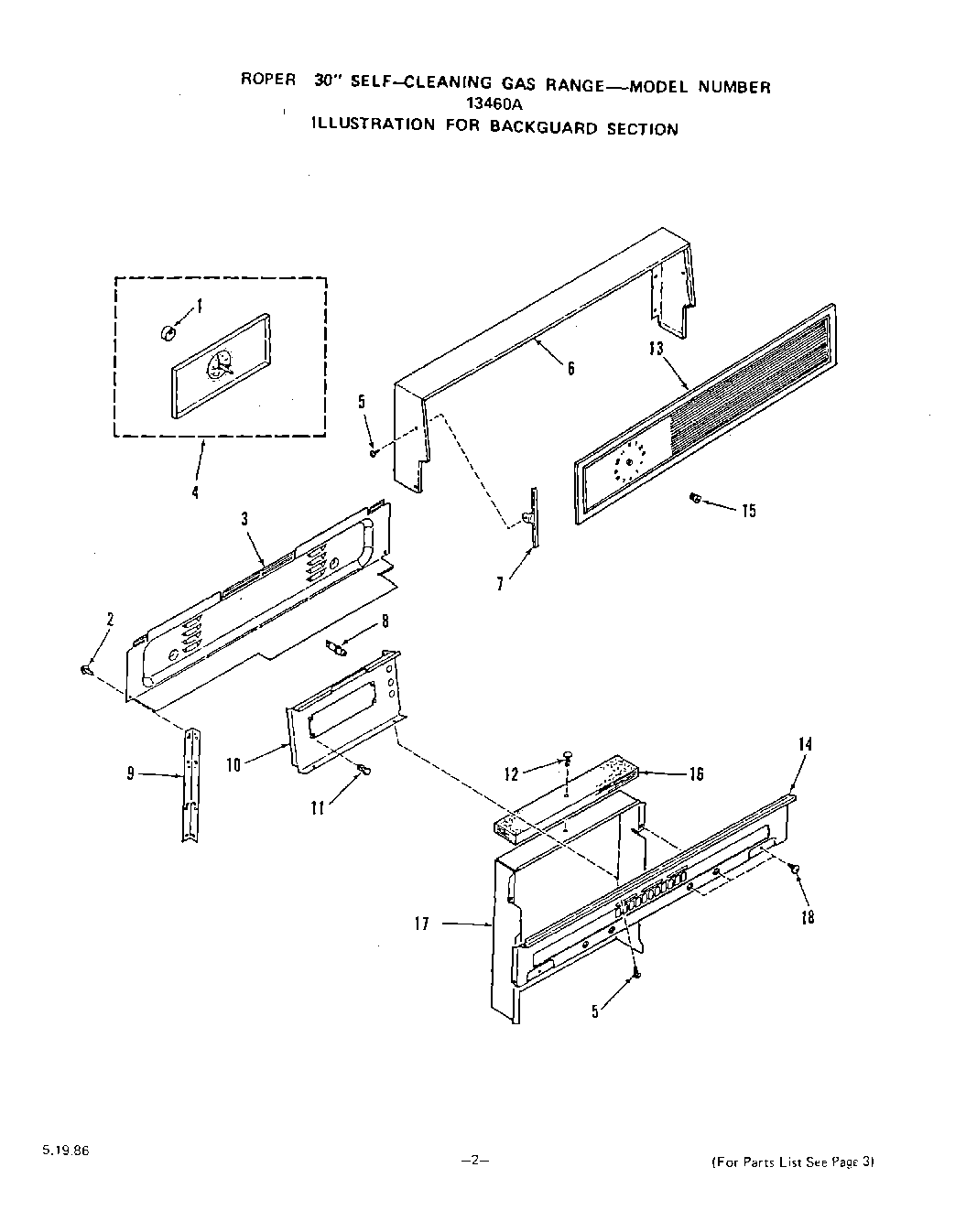

| 1 | Clock Motor |
| 2 | Screw 10-16x7/16`` |
| 3 | Wire Cover-Backguard |
| 4 | Clock w/4 Hr. Timer |
| 5 | Screw 6-20x3/8`` |
| 6 | Frame-Backguard |
| 7 | End Trim-Top Lamp Glass (Lt. or Rt.) |
| 8 | Indicator Light |
| 9 | Support-Backguard (Lt. or Rt.) |
| 10 | Mounting Bracket-Clock |
| 11 | Tubular Clip (4 Req.) |
| 12 | Dart-Button Head (2 Required) |
| 13 | Glass-Backguard |
| 14 | Front-Backguard Bottom |
| 15 | Knob-Clock |
| 16 | Insulation |
| 17 | Shield-Flue Deflector |
| 18 | Screw 10ABx1/2`` |
