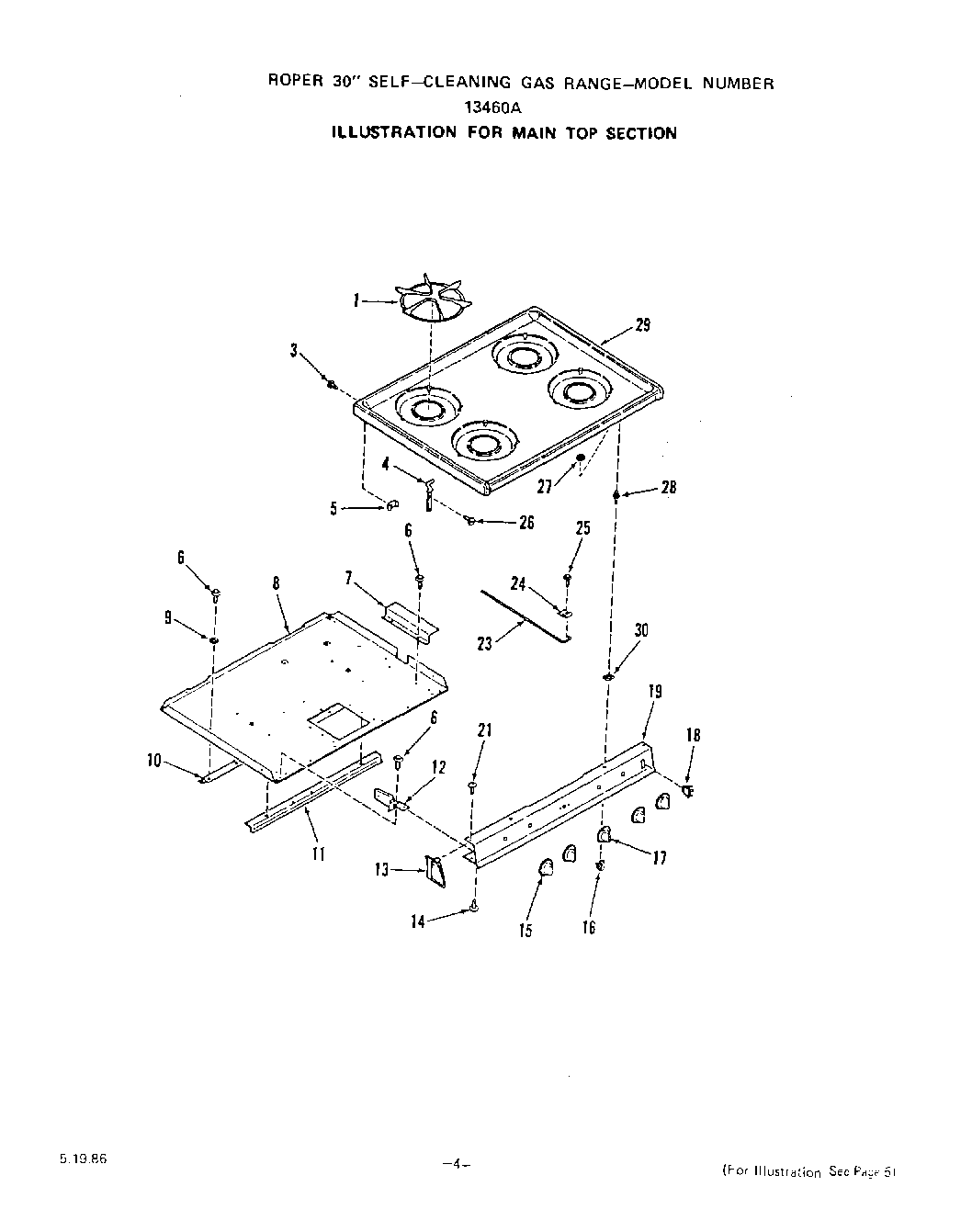

1346W0A 04 – POWER LOCK

Products

Position	Product
1	Top Grate (4 Required)
3	Screw-10-32×1/2“
4	Right
4	Hinge-Main Top
4	Left
5	bracket-main top hinge (lt. or rt.)
6	Screw 10-16×7/16“
7	Raceway
8	Burner Box Bottom
9	Washer
10	Rear Stiffener-Burner Box Bottom
11	Front Stiffener-Burner Box Bottom
12	Bracket-Manifold Panel
12	Left
12	Right
13	Right
13	Cap-Manifold Panel End
13	Left
14	Screw 10ABx1/2“
15	Knob-Gas Valve (4 Req)
16	Catch-Main Top Strike (2 Required)
17	Knob-Thermostat
18	Switch-Oven Light
19	Manifold Panel
21	Screw 6-20×3/8“
23	Support Rod-Main Top
24	Clamp
25	WP112432 Whirlpool Nut Assembly
26	WPL 321162
27	Keps Nut 8-32
28	Strike-Main Top (2 Required)
29	Almond
29	White
29	Main Top
30	Washer
